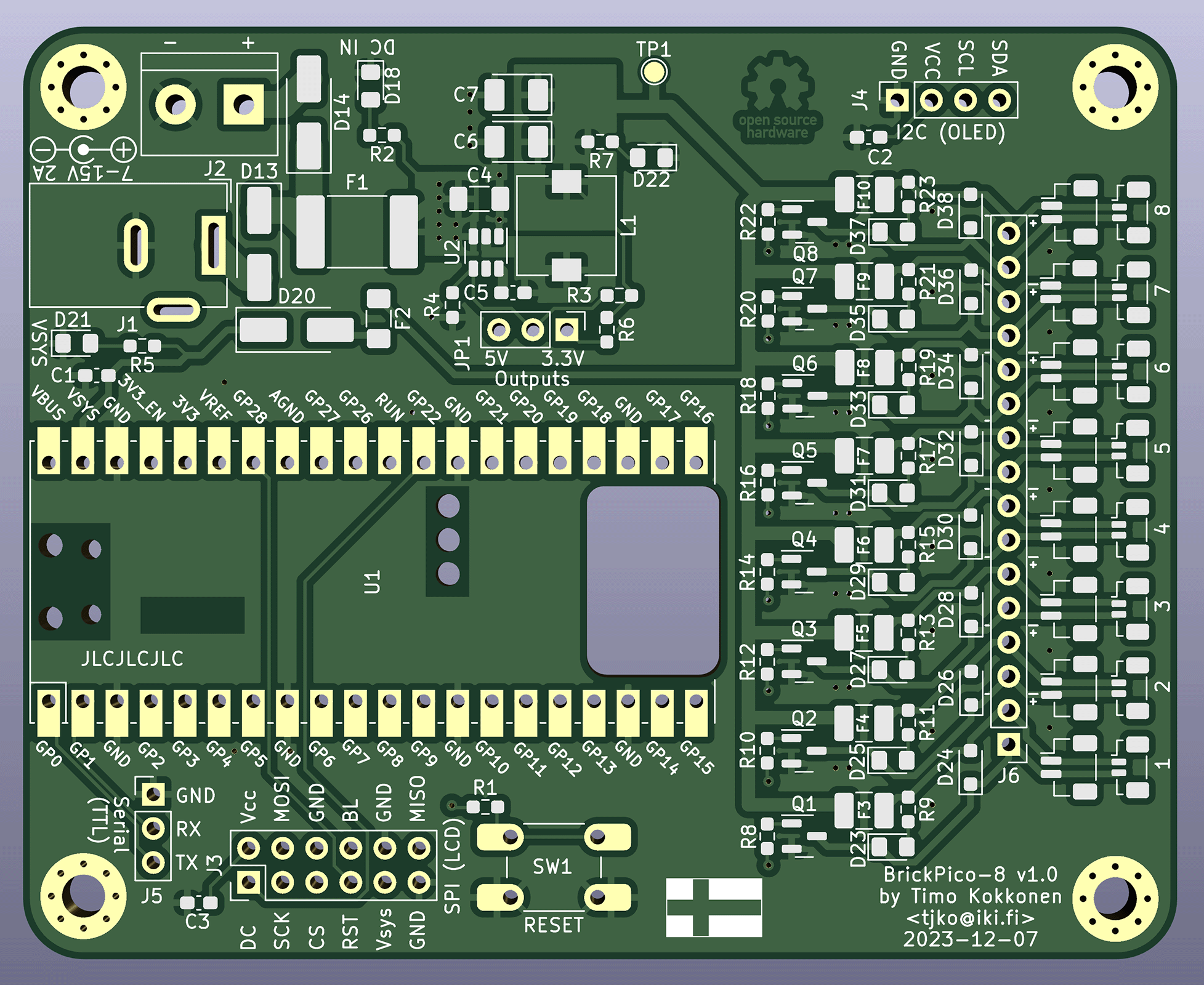

Brickpico PCB layout, top view — open source RP2040/RP2350 board by tjko
Simulate this board

About the Brickpico PCB

Brickpico is an open source RP2040/RP2350 PCB design by tjko, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 86 × 69.5 mm, with 113 components from 31 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the AP62300TWU. By type, the board carries 38 diodes, 23 resistors, 22 connectors, 10 fuses, 8 transistors and 7 capacitors.

It belongs with the iot & wireless designs in this gallery.

From the project

BrickPico - Open Source LED Light Controller

Brickpico, from the project README
From the project README

Main components on the Brickpico

PicoAP62300TWU

Brickpico bill of materials (BOM)

113 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Pico
U1
1
AP62300TWU
U2
8
2N7002K
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8
1
DC Connector
J1
1
Terminal Block
J2
1
SPI (LCD)
J3
1
I2C (OLED)
J4
1
Serial (TTL)
J5
1
Conn_01x16
J6
8
JST SUR
J7, J8, J9, J10, J11, J12, J13, J14
8
JST SRS
J15, J16, J17, J18, J19, J20, J21, J22
1
Polyfuse 3A
F1
1
Polyfuse 500mA
F2
8
Polyfuse 200mA
F3, F4, F5, F6, F7, F8, F9, F10
1
Conn_01x03
JP1
1
Reset
SW1
13
3.3V
D1, D2, D3, D4, D5, D6, D8, D11 +5
9
5V
D7, D24, D26, D28, D30, D32, D34, D36 +1
2
12V
D9, D10
2
SK54A-LTP
D13, D14
Show 11 more
QtyPartRefs
11
LED
D18, D21, D22, D23, D25, D27, D29, D31 +3
1
SM5819PL 1A
D20
1
3.3uH
L1
4
0.1uF
C1, C2, C3, C5
1
10uF 50V
C4
2
22uF 16V
C6, C7
9
1K
R1, R8, R10, R12, R14, R16, R18, R20 +1
1
49.9K
R2
1
56.2K
R3
11
10K
R4, R5, R7, R9, R11, R13, R15, R17 +3
1
82K
R6

Brickpico design files

The KiCad project lives in the tjko/brickpico repository on GitHub; these links point at the commit this page was built from.

Brickpico: common questions

What microcontroller does the Brickpico use?

The Brickpico is built around the Pico, from the RP2040/RP2350 family.

How big is the Brickpico PCB?

The Brickpico measures 86 × 69.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Brickpico?

113 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Brickpico design files?

From the tjko/brickpico repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Brickpico design in my own project?

Yes, under the terms of its GPL-3.0 license, which tjko chose for the repository.

Can I test firmware for the Brickpico without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
