Skibidi phone usb hub

tobycm·skibidi-phone-usb-hub·pcb/skibidi-phone-usb-hub.kicad_pcb

Skibidi phone usb hub PCB layout, top view — open source board by tobycm

Simulate this board

About the Skibidi phone usb hub PCB

Skibidi phone usb hub is an open source PCB design by tobycm, published on GitHub under the MIT license. It is a 4-layer board measuring 70 × 50 mm, with 30 components from 13 distinct parts.

Other key parts include the FE1.1S and USBLC6-2SC6. By type, the board carries 8 capacitors, 7 resistors, 6 ICs, 5 connectors, 1 crystal and 1 fuse.

It belongs with the usb & debug tools designs in this gallery.

From the project

a very skibidi usb hub for my google pixel 7. powered by the fe1.1s, providing 1 upstream usb c port, 2 downstream usb c ports, and 2 downstream usb a ports!!

a very skibidi usb hub for my google pixel 7. powered by the fe1.1s and will power, providing 1 upstream usb c port, 2 downstream usb c ports, and 2 downstream usb a ports!!

[\[Blueprint\]](https://blueprint.hackclub.com/projects/13784) | [\[KiCanvas\]](https://kicanvas.org/?repo=https%3A%2F%2Fgithub.com%2Ftobycm%2Fskibidi-phone-usb-hub%2Ftree%2Fmain%2Fpcb) | [\[Onshape\]](https://cad.onshape.com/documents/10b57464fda6e11087981088/w/324a5dd08e96a242cfbf7cb1/e/a8a34f6420c32109d6a4c98d) | [\[Interactive…

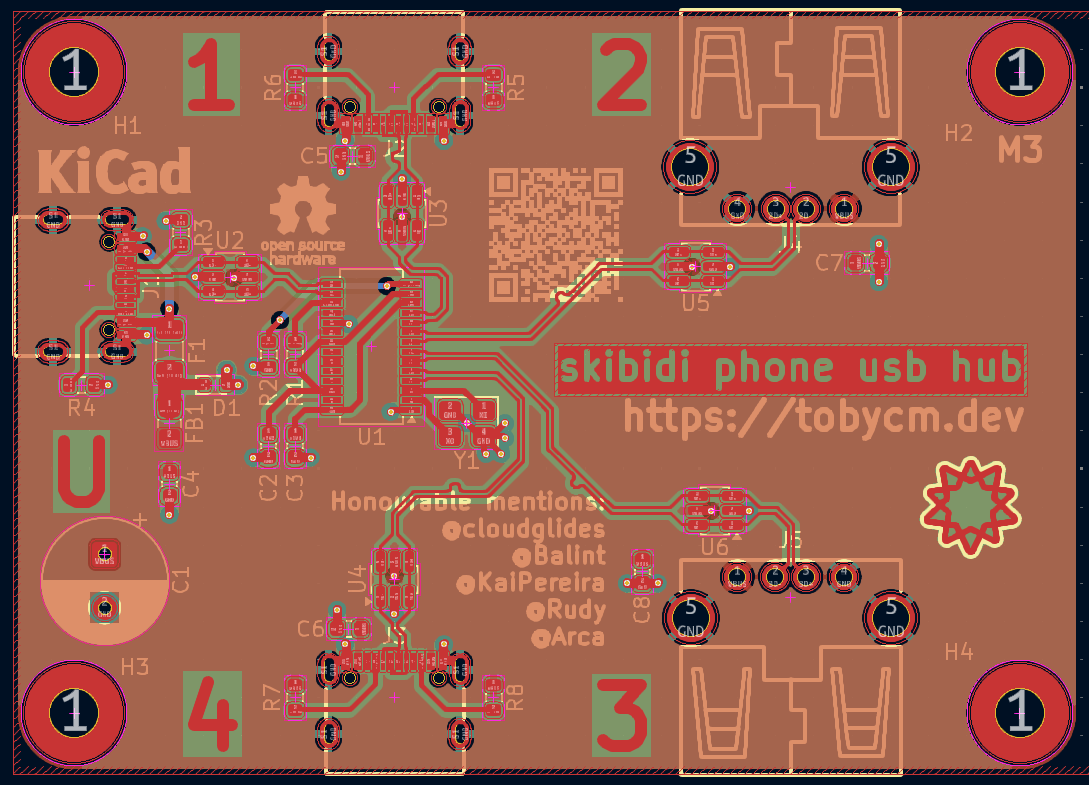

Skibidi phone usb hub, from the project README — From the project README

Main components on the Skibidi phone usb hub

FE1.1S USBLC6-2SC6

Skibidi phone usb hub bill of materials (BOM)

30 components, 13 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	FE1.1S FE1.1s	SSOP-28_3.9x9.9mm_P0.635mm	U1
5	USBLC6-2SC6	SOT-23-6	U2, U3, U4, U5, U6
1	12MHZ 12Mhz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
3	USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P	USB-C-SMD_TYPE-C-6PIN-2MD-073	J1, J2, J3
2	C456018 USB_A	USB-A-TH_AF-WJDG	J4, J5
1	C883135 2A	Fuse_1206_3216Metric	F1
1	C82044 5V	D_SOD-523	D1
1	C85840 220Ω@100MHz	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	FB1
1	470U 470u	CP_Radial_D8.0mm_P3.50mm	C1
7	10U 10u	C_0603_1608Metric	C2, C3, C4, C5, C6, C7, C8
1	2.7K 2.7k	R_0603_1608Metric	R2
2	5.1K 5.1k	R_0603_1608Metric	R3, R4
4	56K 56k	R_0603_1608Metric	R5, R6, R7, R8

Skibidi phone usb hub design files

The KiCad project lives in the tobycm/skibidi-phone-usb-hub repository on GitHub; these links point at the commit this page was built from.

Skibidi phone usb hub: common questions

How big is the Skibidi phone usb hub PCB?

The Skibidi phone usb hub measures 70 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Skibidi phone usb hub?

30 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Skibidi phone usb hub design files?

From the tobycm/skibidi-phone-usb-hub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Skibidi phone usb hub design in my own project?

Yes, under the terms of its MIT license, which tobycm chose for the repository.
