Skibidi usb charger hub

tobycm·skibidi-usb-charger-hub·pcb/skibidi-usb-charger-hub.kicad_pcb

Skibidi usb charger hub PCB layout, top view — open source board by tobycm
Simulate this board

About the Skibidi usb charger hub PCB

Skibidi usb charger hub is an open source PCB design by tobycm, published on GitHub under the MIT license. It is a 4-layer board measuring 85 × 90 mm, with 74 components from 18 distinct parts.

Other key parts include the NDP5102SE, IP6518 and USBLC6-4SC6. By type, the board carries 35 capacitors, 11 ICs, 10 connectors, 8 resistors, 4 inductors and 2 fuses.

It belongs with the power & battery designs in this gallery.

From the project

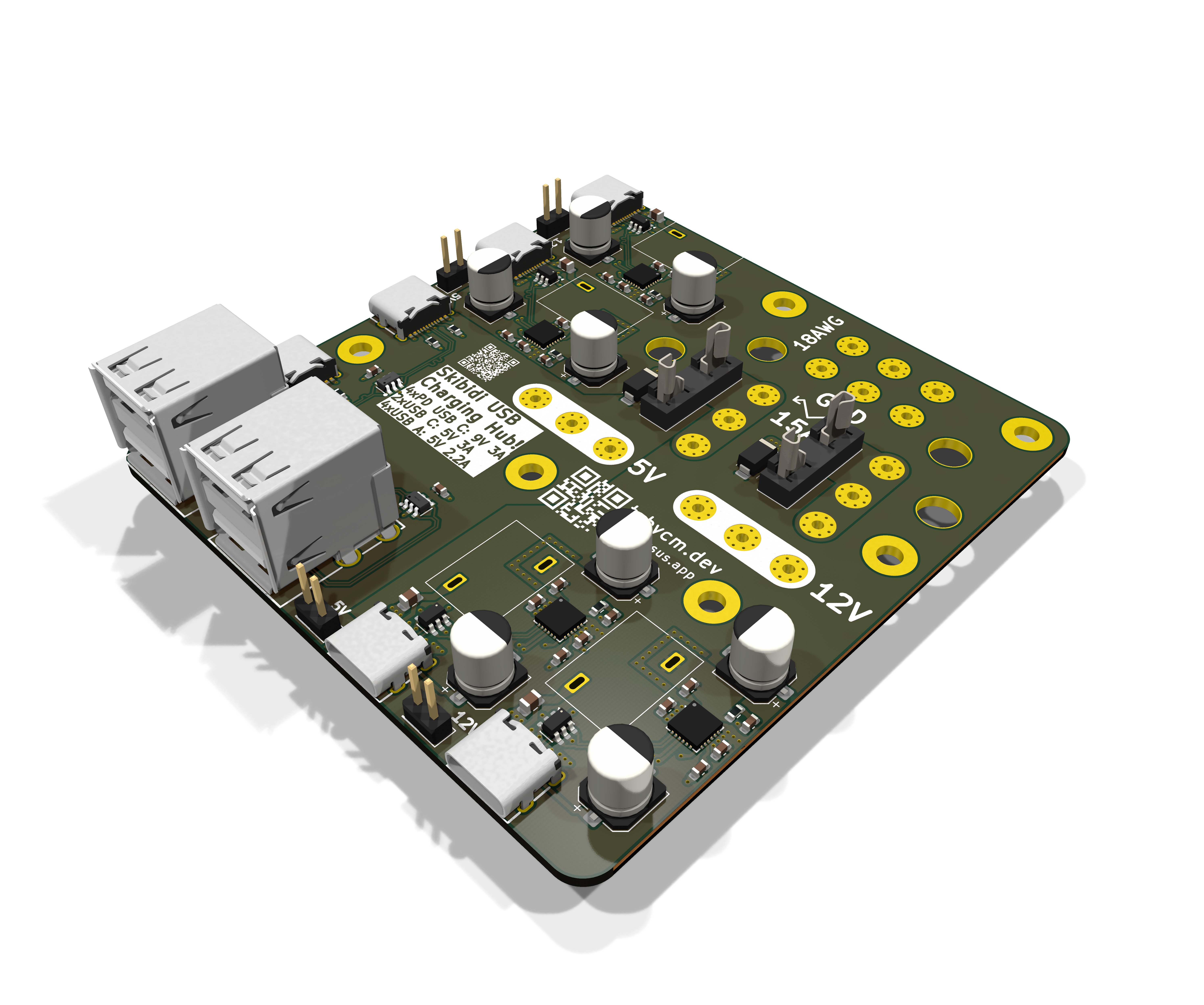

a very skibidi usb charger hub. powered using an old PC PSU with 12V and 5V to charge phones and alike

a very skibidi usb charger hub. powered using an old PC PSU with 12V and 5V, providing:

- 4 x PD USB C: 9V 3A - 2 x USB C: 5V 3A - 4 x USB A: 5V 2.2A

Skibidi usb charger hub, from the project README
From the project README

Main components on the Skibidi usb charger hub

NDP5102SEIP6518USBLC6-4SC6

Skibidi usb charger hub bill of materials (BOM)

74 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
NDP5102SE
NDP(芯潭微)
U3, U6, U9
4
IP6518
INJOINIC(英集芯)
U10, U12, U14, U16
4
USBLC6-4SC6
U11, U13, U15, U17
6
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1, J2, J3, J4, J5, J6
4
CONN_02X01
Conn_02x01
J7, J8, J9, J10
2
C843270
Fuse
F1, F2
2
AF SS-JB17.6
SHOU HAN(首韩)
USB1, USB2
1
SMAJ5.0A
D1
1
SMAJ15A
D2
4
22U
22u
L1, L2, L3, L4
11
100N
100n
C1, C2, C3, C7, C10, C15, C18, C23 +3
4
100U
100u
C4, C12, C20, C28
8
1u
C5, C6, C13, C14, C21, C22, C29, C30
4
220U
220u
C8, C16, C24, C32
4
22U
22u
C9, C17, C25, C33
4
1n
C11, C19, C27, C35
4
5.1K
5.1k
R1, R2, R3, R4
4
2
R5, R6, R7, R8

Skibidi usb charger hub design files

The KiCad project lives in the tobycm/skibidi-usb-charger-hub repository on GitHub; these links point at the commit this page was built from.

Skibidi usb charger hub: common questions

How big is the Skibidi usb charger hub PCB?

The Skibidi usb charger hub measures 85 × 90 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Skibidi usb charger hub?

74 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Skibidi usb charger hub design files?

From the tobycm/skibidi-usb-charger-hub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Skibidi usb charger hub design in my own project?

Yes, under the terms of its MIT license, which tobycm chose for the repository.
