PS4-USB-HEN-ESP32

TomasFilipCZ·PS4-USB-HEN-ESP32

PS4-USB-HEN-ESP32 PCB layout, top view — open source ESP32 board by TomasFilipCZ
Simulate this board

About the PS4-USB-HEN-ESP32 PCB

PS4-USB-HEN-ESP32 is an open source ESP32 PCB design by TomasFilipCZ, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 54 × 41 mm, with 35 components from 18 distinct parts.

Its main chip is the ESP32-S2-WROVER-16MB, from the ESP32 family. Other key parts include the AMS1117-3.3 and SRV05-4. By type, the board carries 12 resistors, 9 capacitors, 3 ICs, 3 connectors, 3 diodes and 2 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

ESP32-S2 as USB Flash disk emulation for loading GoldHEN for 9.00

Together with ESP32-S2 as WebServer will PS4-USB-ESP32 emulate USB Flash drive, causing automatic loading HEN in desired time without user interaction.

Project is modification of "PS4 Server 9.00" and "ESP8266 Control device", aim is to share design data of small PCB and firmware for the ESP32-S2 to create device for wide usage of automatic loading and implement basic electronic protection for PS4.

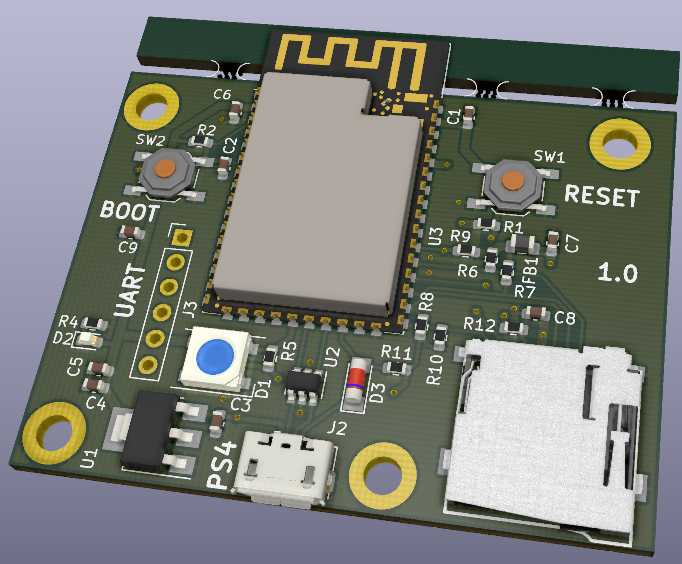

PS4-USB-HEN-ESP32, from the project README
From the project README

Main components on the PS4-USB-HEN-ESP32

AMS1117-3.3SRV05-4ESP32-S2-WROVER-16MB

PS4-USB-HEN-ESP32 bill of materials (BOM)

35 components, 18 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
SRV05-4
U2
1
ESP32-S2-WROVER-16MB
U3
1
2N7002
Q1
1
Micro_SD_Card_Det
J1
1
USB_B_Micro
J2
1
Conn_01x06
J3
2
SW_Push
SW1, SW2
1
VAL**
mouse-bite-2mm-slot
1
WS2812B
D1
1
D_LED_0603_Red
D2
1
LL4148
D3
1
100MHz/600Ohm/500mA
FB1
7
100nF
C1, C2, C3, C4, C6, C8, C9
2
10uF_10V
C5, C7
10
10k
R1, R2, R3, R5, R6, R7, R8, R9 +2
1
330R
R4
1
22R
R12

PS4-USB-HEN-ESP32 design files

The KiCad project lives in the TomasFilipCZ/PS4-USB-HEN-ESP32 repository on GitHub; these links point at the commit this page was built from.

PS4-USB-HEN-ESP32: common questions

What microcontroller does the PS4-USB-HEN-ESP32 use?

The PS4-USB-HEN-ESP32 is built around the ESP32-S2-WROVER-16MB, from the ESP32 family.

How big is the PS4-USB-HEN-ESP32 PCB?

The PS4-USB-HEN-ESP32 measures 54 × 41 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PS4-USB-HEN-ESP32?

35 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the PS4-USB-HEN-ESP32 design files?

From the TomasFilipCZ/PS4-USB-HEN-ESP32 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PS4-USB-HEN-ESP32 design in my own project?

Yes, under the terms of its BSD-3-Clause license, which TomasFilipCZ chose for the repository.

Can I test firmware for the PS4-USB-HEN-ESP32 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
