About the PS4-USB-HEN-ESP8266Control PCB
PS4-USB-HEN-ESP8266Control is an open source ESP8266 PCB design by TomasFilipCZ, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 35.3 × 26.9 mm, with 18 components from 14 distinct parts.
Its main chip is the WEMOS_D1_MINI, from the ESP8266 family. Other key parts include the USBLC6-2SC6. By type, the board carries 5 capacitors, 4 resistors, 3 connectors, 2 ICs, 2 transistors and 1 fuse.
It belongs with the iot & wireless designs in this gallery.
From the project

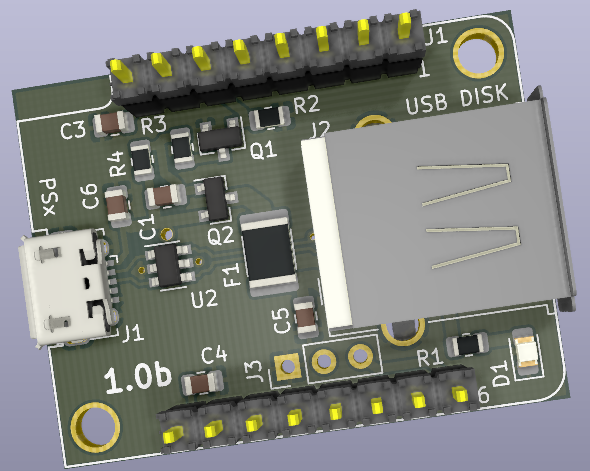

Power Control board for USB Flashdisk controller by ESP8266
Together with ESP8266 as WebServer is PS4-USB-HEN controlling power supply for USB drive, causing automatic loading HEN in desired time without user interaction.
Project is modification of "PS4 Server 9.00", aim is to share design data of small PCB to create device for wide usage of automatic loading and implement basic electronic protection for PS4.
USB Drive for PS4-USB-HEN needs to be properly installed with ChendoChap Kernel Exploit - ChendoChap PS4 9.00 Kernel Exploit

Main components on the PS4-USB-HEN-ESP8266Control
PS4-USB-HEN-ESP8266Control bill of materials (BOM)
18 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WEMOS_D1_MINI WeMos_D1_mini | wemos-d1-mini-connectors-only | U1 |
| 1 | USBLC6-2SC6 STMicroelectronics | SOT-23-6 | U2 |
| 1 | 2N7002 Changjiang Electronics (CJ) | SOT-23 | Q1 |
| 1 | AO3413A AO3401A UMW(Youtai Semiconductor Co., Ltd.) | SOT-23 | Q2 |
| 1 | 920-E52A2021S10100 USB_B_Micro Jing Extension of the Electronic Co. | USB_Micro-Jing Extension | J1 |
| 1 | 902-131A1011D10100 USB_A Jing Extension of the Electronic Co. | USB_A_Molex_67643_Horizontal | J2 |
| 1 | HEADER-2.54-3pin-Vertical | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | MSMD075 Polyfuse_16V_1.1A TECHFUSE | Fuse_1812_4532Metric_Pad1.30x3.40mm_HandSolder | F1 |
| 1 | LED_0805 D_LED_0805_0805 Hubei KENTO Elec | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 4 | GCM21BR71H104KA37L 100nF MURATA | C_0805_2012Metric | C1, C3, C4, C5 |
| 1 | GRM21BR61A226ME51L 22uF_25V MURATA | C_0805_2012Metric | C6 |
| 1 | 0805W8F3300T5E 330R UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric | R1 |
| 2 | 0805W8F1003T5E 100k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric | R2, R4 |
| 1 | 0805W8F1002T5E 10k UNI-ROYAL(Uniroyal Elec) | R_0805_2012Metric | R3 |
PS4-USB-HEN-ESP8266Control design files
The KiCad project lives in the TomasFilipCZ/PS4-USB-HEN-ESP8266Control repository on GitHub; these links point at the commit this page was built from.
PS4-USB-HEN-ESP8266Control: common questions
What microcontroller does the PS4-USB-HEN-ESP8266Control use?
The PS4-USB-HEN-ESP8266Control is built around the WEMOS_D1_MINI, from the ESP8266 family.
How big is the PS4-USB-HEN-ESP8266Control PCB?
The PS4-USB-HEN-ESP8266Control measures 35.3 × 26.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PS4-USB-HEN-ESP8266Control?
18 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PS4-USB-HEN-ESP8266Control design files?
From the TomasFilipCZ/PS4-USB-HEN-ESP8266Control repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the PS4-USB-HEN-ESP8266Control design in my own project?
Yes, under the terms of its BSD-3-Clause license, which TomasFilipCZ chose for the repository.
Can I test firmware for the PS4-USB-HEN-ESP8266Control without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
