AccelerationDataLogger

Toroid-io·AccelerationDataLogger·Board/PlacaMirasso.kicad_pcb

AccelerationDataLogger PCB layout, top view — open source STM32 board by Toroid-io

About the AccelerationDataLogger PCB

AccelerationDataLogger is an open source STM32 PCB design by Toroid-io, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 78.1 × 78.7 mm, with 85 components from 38 distinct parts.

Its main chip is the STM32F072CBTx, from the STM32 family. Other key parts include the FT232RL, LD1117S50TR, LD3985M33R_SOT23, 23LCRAM and 25LC_EEPROM. By type, the board carries 25 capacitors, 20 resistors, 18 connectors, 10 diodes, 6 ICs and 4 switches.

It belongs with the sensors and power & battery designs in this gallery.

From the project

An open source acceleration data logger board and software, using widely available sensors

AccelerationDataLogger provides a hardware-software bundle to measure and log accelerations. Originally developed to measure oscillations in engineering models, it may be used in the following applications, among others:

- Structural dynamics - Sports science - Simple vibration analysis - Fall detection - Wearables development - As an accelerometer playground

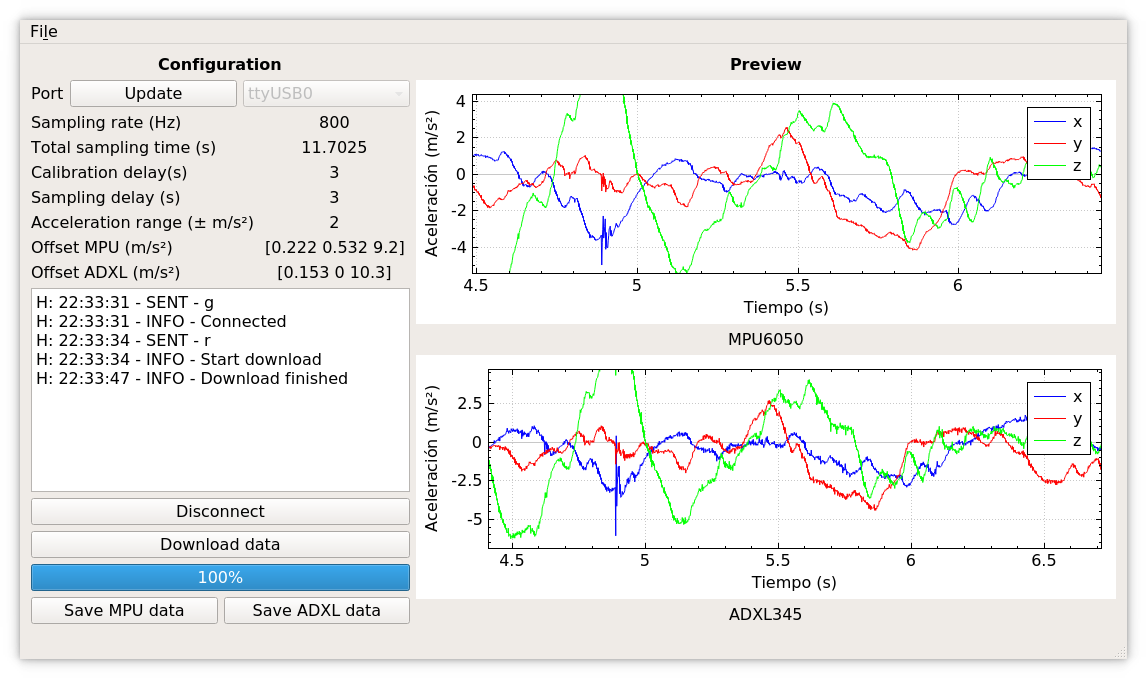

AccelerationDataLogger, from the project README
From the project README

Main components on the AccelerationDataLogger

FT232RLSTM32F072CBTxLD1117S50TRLD3985M33R_SOT2323LCRAM25LC_EEPROM

AccelerationDataLogger bill of materials (BOM)

85 components, 38 distinct parts.

QtyPartRefs
1
FT232RL
U1
1
STM32F072CBTx
U2
1
LD1117S50TR
U3
1
LD3985M33R_SOT23
U4
1
23LCRAM
U5
1
25LC_EEPROM
U6
1
9C-8.000MBBK-T
Y1
1
USB_OTG
J1
1
DEBUG
J2
1
SWD
J3
1
BOOT_JMP
J4
3
GS3
J6, J8, J9
5
GS2
J7, J10, J11, J12, J13
1
ANALIZER_ADXL
J14
1
ANALIZER_MPU
J15
1
SPI_ANALYZER
J17
1
BAT
J18
1
ADXL345
P1
1
MPU_6050
P2
3
SW_Push_Dual
SW1, SW2, SW3
Show 18 more
QtyPartRefs
1
SW_DPDT_x2
SW4
2
LED
D1, D2
5
LED
D3, D4, D5, D6, D10
2
BAT60JFILM
D7, D9
1
STPS2L30A
D8
1
MI0805K400R-10
L1
12
100nF
C1, C2, C3, C4, C9, C11, C12, C16 +4
3
10nF_X7R
C5, C10, C23
3
1uF_X5R
C6, C21, C24
3
4.7uF
C7, C8, C13
2
10pF
C14, C15
2
10uF
C19, C20
3
10k
R1, R4, R6
7
1k1
R2, R3, R9, R10, R11, R12, R20
2
47k
R5, R8
1
39k
R7
3
100k
R13, R14, R15
4
2k2
R16, R17, R18, R19

AccelerationDataLogger design files

The KiCad project lives in the Toroid-io/AccelerationDataLogger repository on GitHub; these links point at the commit this page was built from.

AccelerationDataLogger: common questions

What microcontroller does the AccelerationDataLogger use?

The AccelerationDataLogger is built around the STM32F072CBTx, from the STM32 family.

How big is the AccelerationDataLogger PCB?

The AccelerationDataLogger measures 78.1 × 78.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AccelerationDataLogger?

85 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the AccelerationDataLogger design files?

From the Toroid-io/AccelerationDataLogger repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the AccelerationDataLogger design in my own project?

Yes, under the terms of its GPL-3.0 license, which Toroid-io chose for the repository.

Can I test firmware for the AccelerationDataLogger without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
