About the PoolMonitor PCB

PoolMonitor is an open source ESP8266 PCB design by tpanajott, published on GitHub. It is a 4-layer board measuring 54.4 × 31 mm, with 28 components from 20 distinct parts.

Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the K7803M-1000R3. By type, the board carries 8 resistors, 7 capacitors, 3 connectors, 2 ICs, 2 transistors and 2 diodes.

It belongs with the iot & wireless, sensors and usb & debug tools designs in this gallery.

From the project

A pool monitor with accompaning PCB

- PoolMonitor - Description - Hardware - PCB Manufacturing - Parts - Sensor - Jumpers - Disable pol prot - Disable power ctrl - Installation of software - Home Assistant configuration

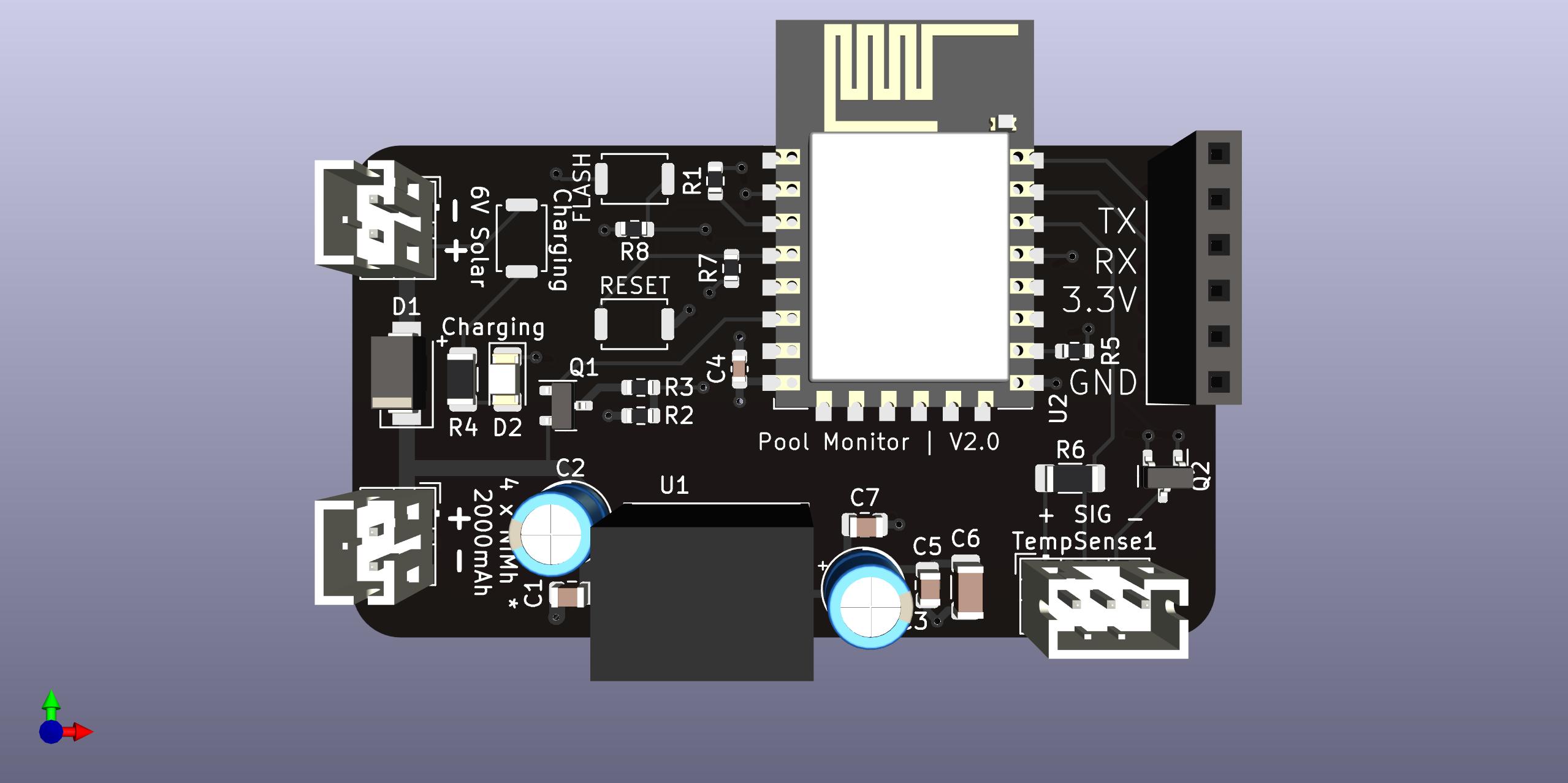

PoolMonitor, from the project README
From the project README

Main components on the PoolMonitor

K7803M-1000R3ESP-12E

PoolMonitor bill of materials (BOM)

28 components, 20 distinct parts.

QtyPartRefs
1
K7803M-1000R3
U1
1
ESP-12E
U2
1
DMP2225L-7
Q1
1
AO3400A
Q2
1
Conn_01x02_Male
J1
1
Conn_01x06_Female
J2
1
SolarPanel6V
J3
3
SW_Push
CHK_CHARGE1, SW_FLASH1, SW_RESET1
1
Conn_01x03_Male
TempSense1
1
SS14
D1
1
LED_GREEN
D2
2
10uF
C1, C5
2
22uF
C2, C3
1
1uf
C4
1
4.7uF
C6
1
100nF
C7
5
10K
R1, R3, R5, R7, R8
1
2K
R2
1
1K
R4
1
4k7
R6

PoolMonitor design files

The KiCad project lives in the tpanajott/PoolMonitor repository on GitHub; these links point at the commit this page was built from.

PoolMonitor: common questions

What microcontroller does the PoolMonitor use?

The PoolMonitor is built around the ESP-12E, from the ESP8266 family.

How big is the PoolMonitor PCB?

The PoolMonitor measures 54.4 × 31 mm, has 4 copper layers and is 3.66 mm thick.

How many components are on the PoolMonitor?

28 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the PoolMonitor design files?

From the tpanajott/PoolMonitor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PoolMonitor design in my own project?

The repository has no license, so all rights stay with tpanajott. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PoolMonitor without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
