Shield airpump

TrendBit·SMBR-hardware·motor_shield_airpump/pcb/motor_shield_airpump.kicad_pcb

Shield airpump layout, top view — open source board by TrendBit

About the Shield airpump

Shield airpump is an open source PCB design by TrendBit, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 20.1 × 22 mm, with 7 components from 5 distinct parts.

By type, the board carries 4 capacitors, 2 inductors and 1 connector.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Design file for SMBR hardware modules in KiCAD.

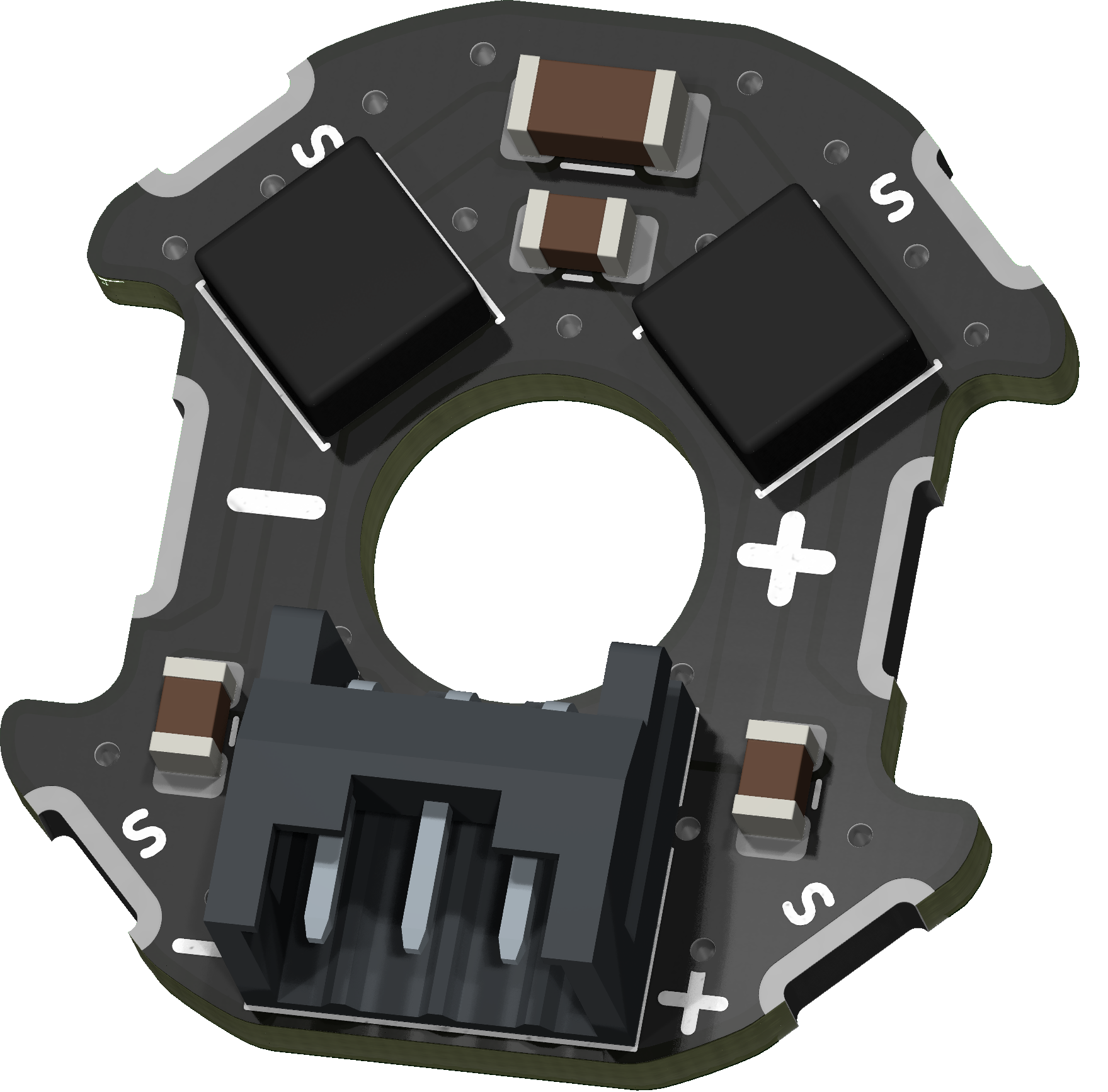

Shield airpump, from the project README
From the project README

Shield airpump bill of materials (BOM)

7 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DF3EA-3P-2H
J301
2
3.3uH
L301, L302
2
22nF
C301, C302
1
100nF
C303
1
1uF
C304

Shield airpump design files

The KiCad project lives in the TrendBit/SMBR-hardware repository on GitHub; these links point at the commit this page was built from.

Shield airpump: common questions

How big is the Shield airpump?

The Shield airpump measures 20.1 × 22 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Shield airpump?

7 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Shield airpump design files?

From the TrendBit/SMBR-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Shield airpump design in my own project?

Yes, under the terms of its GPL-3.0 license, which TrendBit chose for the repository.
