Sensor board

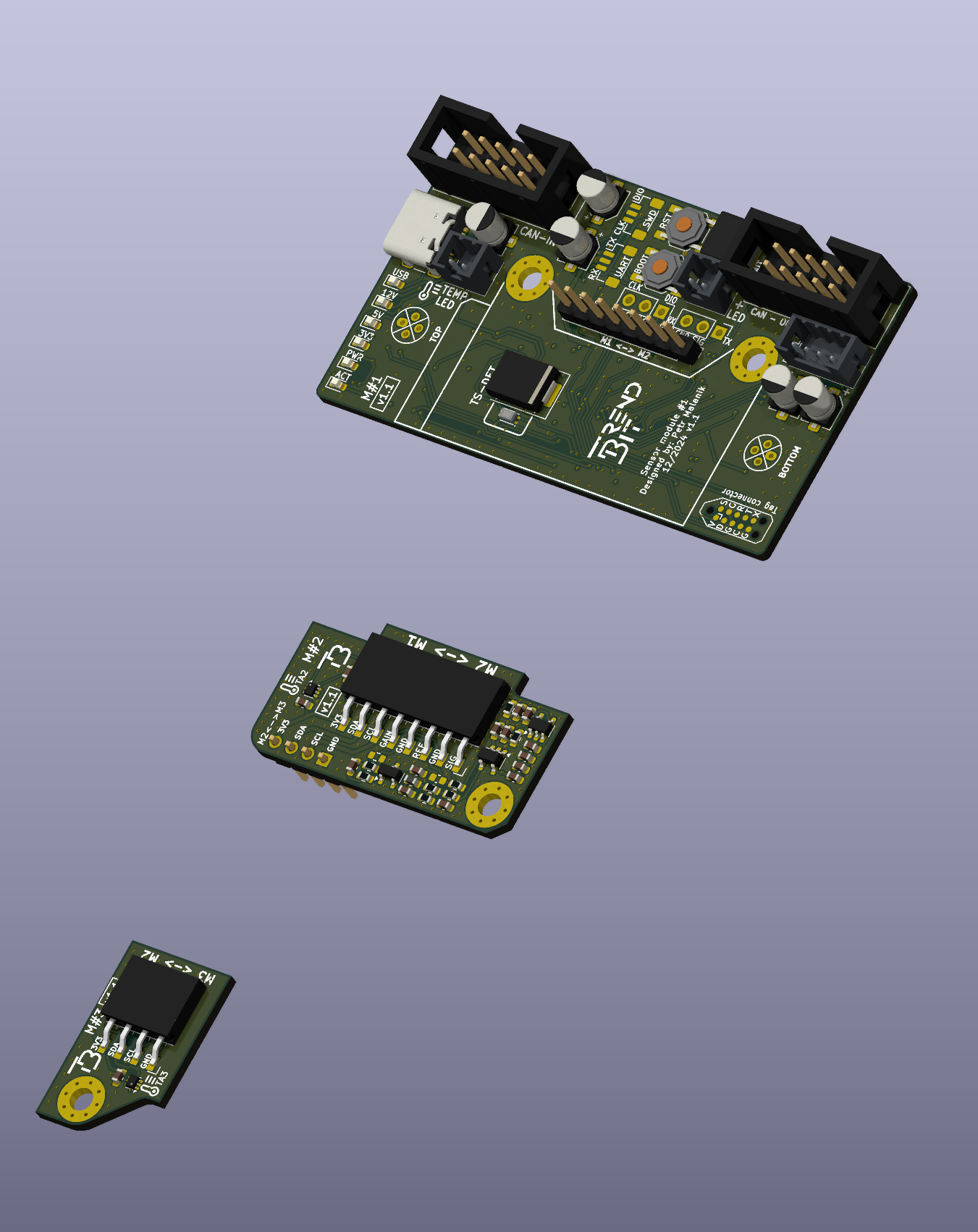

About the Sensor board
Sensor board is an open source RP2040/RP2350 PCB design by TrendBit, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 40 × 70 mm, with 205 components from 61 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AT24C256C-SSHL-T, W25Q32JVZPIQ, AMS1117-3.3, SN65HVD230DR and REF3033AIDBZR. By type, the board carries 77 capacitors, 67 resistors, 23 ICs, 18 diodes, 10 connectors and 6 inductors.
It belongs with the sensors designs in this gallery.
From the project
Design file for SMBR hardware modules in KiCAD.
Main components on the Sensor board
Sensor board bill of materials (BOM)
205 components, 61 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AT24C256C-SSHL-T AT24C256 | SOIC-8_3.9x4.9mm_P1.27mm | U601 |
| 1 | W25Q32JVZPIQ W25Q32JVZP | WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm | U602 |
| 1 | RP2040 | QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm | U603 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U701 |
| 1 | SN65HVD230DR SN65HVD230 | SOIC-8_3.9x4.9mm_P1.27mm | U702 |
| 2 | REF3033AIDBZR REF3033 | SOT-23 | U703, U801 |
| 1 | REF3012AIDBZR REF3012 | SOT-23 | U704 |
| 2 | AD8605ARTZ AD8603 | TSOT-23-5 | U802, U901 |
| 2 | MCP6G01RT-E/OT MCP6G01 | SOT-23-5 | U803, U902 |
| 1 | VEML6040 | VEML6040 | U903 |
| 2 | INA826AIDR INA826 | SOIC-8_3.9x4.9mm_P1.27mm | U1002, U1102 |
| 1 | KTD2026BEWE | UTDFN-8-1EP_1.5x1.5mm_P0.4mm_EP0.8x1.45mm | U1201 |
| 1 | KTD2026EWE | UTDFN-8-1EP_1.5x1.5mm_P0.4mm_EP0.8x1.45mm | U1202 |
| 3 | TMP102AIDRLR TMP102xxDRL | SOT-563 | U1301, U1701, U1702 |
| 1 | SN74LVC1G3157DCKR 74LVC1G3157 | SOT-363_SC-70-6 | U1501 |
| 1 | TLA2024IRUGT TLA2024 | Texas_UQFN-10_1.5x2mm_P0.5mm | U1502 |
| 1 | C507866 AL8843 | Diodes_SO-8EP | U1601 |
| 1 | C9002 12MHz | Crystal_SMD_Abracon_ABM8G-4Pin_3.2x2.5mm | Y601 |
| 1 | SM1_OUT | PinHeader_1x08_P2.54mm_Vertical | J101 |
| 1 | X6511FRS-08-C85D30 SM2_IN | PinSocket_1x08_P2.54mm_Horizontal_SMD | J102 |
Show 41 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SM2_OUT | PinHeader_1x04_P2.54mm_Vertical | J103 |
| 1 | X6511FRS-04-C85D30 SM3_IN | PinSocket_1x04_P2.54mm_Horizontal_SMD | J104 |
| 1 | DF3A-4P-2DSA | Hirose_DF3A-04P-2DSA_1x04_P2.00mm_Vertical | J501 |
| 2 | 2.54-2*5P | IDC-Header_2x05_P2.54mm_Vertical | J701, J702 |
| 1 | TYPE-C16PIN U263-163N-4BLS1735 | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J1402 |
| 2 | DF3A-2P-2DSA | Hirose_DF3A-02P-2DSA_1x02_P2.00mm_Vertical | J1501, J1601 |
| 2 | TS-1187A-B-A-B | SW_SPST_TL3342 | SW601, SW602 |
| 1 | SDNT1608X103F3950FTF 10k, 3950b | L_0603_1608Metric | TH1501 |
| 4 | KT-0603R RED | LED_0603_1608Metric | D601, D602, D603, D1402 |
| 1 | 19-213/Y2C-CQ2R2L/3T(CY) YELLOW | LED_0603_1608Metric | D604 |
| 1 | 19-217/GHC-YR1S2/6T GREEN | LED_0603_1608Metric | D605 |
| 1 | PSM712-LF-T7 | SOT-23 | D701 |
| 2 | SS34 | D_SMA | D702, D1601 |
| 2 | VBPW34FASR BPW34FASR | D_SMC | D801, D901 |
| 1 | KP-2012MBC | LED_0805_2012Metric | D1201 |
| 1 | LTST-C190KRKT | LED_0603_1608Metric | D1202 |
| 1 | LTST-C191TBKT | LED_0603_1608Metric | D1203 |
| 1 | OIS-170 675 | LED_0805_2012Metric | D1204 |
| 1 | SML-D12P8WT86 | LED_0603_1608Metric | D1205 |
| 1 | TDN1111C-TR | LED_0603_1608Metric | D1206 |
| 1 | B5817W | D_SOD-123 | D1401 |
| 5 | GZ1608D601TF 10R@100MHz | L_0603_1608Metric | FB701, FB702, FB703, FB801, FB1501 |
| 1 | 15uH | L_Taiyo-Yuden_NR-60xx | L1601 |
| 5 | RVT1V100M0405 10uF/25V | CP_Elec_4x5.4 | C501, C702, C704, C708, C715 |
| 44 | 100nF | C_0603_1608Metric | C601, C603, C604, C605, C609, C610, C611, C612 +36 |
| 16 | 1uF | C_0603_1608Metric | C602, C608, C613, C615, C709, C710, C801, C807 +8 |
| 4 | 10pF | C_0603_1608Metric | C606, C607, C804, C805 |
| 8 | 10nF | C_0603_1608Metric | C701, C808, C809, C810, C813, C901, C902, C1603 |
| 5 | 0R | R_0603_1608Metric | R202, R802, R1008, R1108, R1401 |
| 13 | 1k | R_0603_1608Metric | R601, R602, R610, R618, R703, R1002, R1102, R1503 +5 |
| 13 | 10k | R_0603_1608Metric | R604, R605, R617, R704, R705, R803, R806, R807 +5 |
| 6 | 5.1k | R_0603_1608Metric | R606, R607, R1402, R1403, R1501, R1502 |
| 7 | 270R | R_0603_1608Metric | R608, R609, R614, R615, R616, R1404, R1405 |
| 2 | 22R | R_0603_1608Metric | R611, R612 |
| 2 | 60R | R_1206_3216Metric | R701, R702 |
| 1 | 150k | R_0603_1608Metric | R804 |
| 6 | 10R | R_0603_1608Metric | R805, R808, R809, R902, R905, R906 |
| 3 | 100k | R_0603_1608Metric | R1001, R1101, R1507 |
| 4 | 1M | R_0603_1608Metric | R1003, R1004, R1103, R1104 |
| 4 | 100R | R_0603_1608Metric | R1005, R1007, R1105, R1107 |
| 1 | FRL1210FR068TS 0.068R | R_1210_3225Metric | R1603 |
Sensor board design files
The KiCad project lives in the TrendBit/SMBR-hardware repository on GitHub; these links point at the commit this page was built from.
Sensor board: common questions
What microcontroller does the Sensor board use?
The Sensor board is built around the RP2040, from the RP2040/RP2350 family.
How big is the Sensor board?
The Sensor board measures 40 × 70 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Sensor board?
205 components, from 61 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sensor board design files?
From the TrendBit/SMBR-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sensor board design in my own project?
Yes, under the terms of its GPL-3.0 license, which TrendBit chose for the repository.
Can I test firmware for the Sensor board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
