${BOARD NAME}

TrendBit·SMBR-hardware·motor_shield_peristaltic/pcb/motor_shield_peristaltic.kicad_pcb

${BOARD NAME} layout, top view — open source board by TrendBit

About the ${BOARD NAME}

${BOARD NAME} is an open source PCB design by TrendBit, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 24 × 25.5 mm, with 7 components from 5 distinct parts.

By type, the board carries 4 capacitors, 2 inductors and 1 connector.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Design file for SMBR hardware modules in KiCAD.

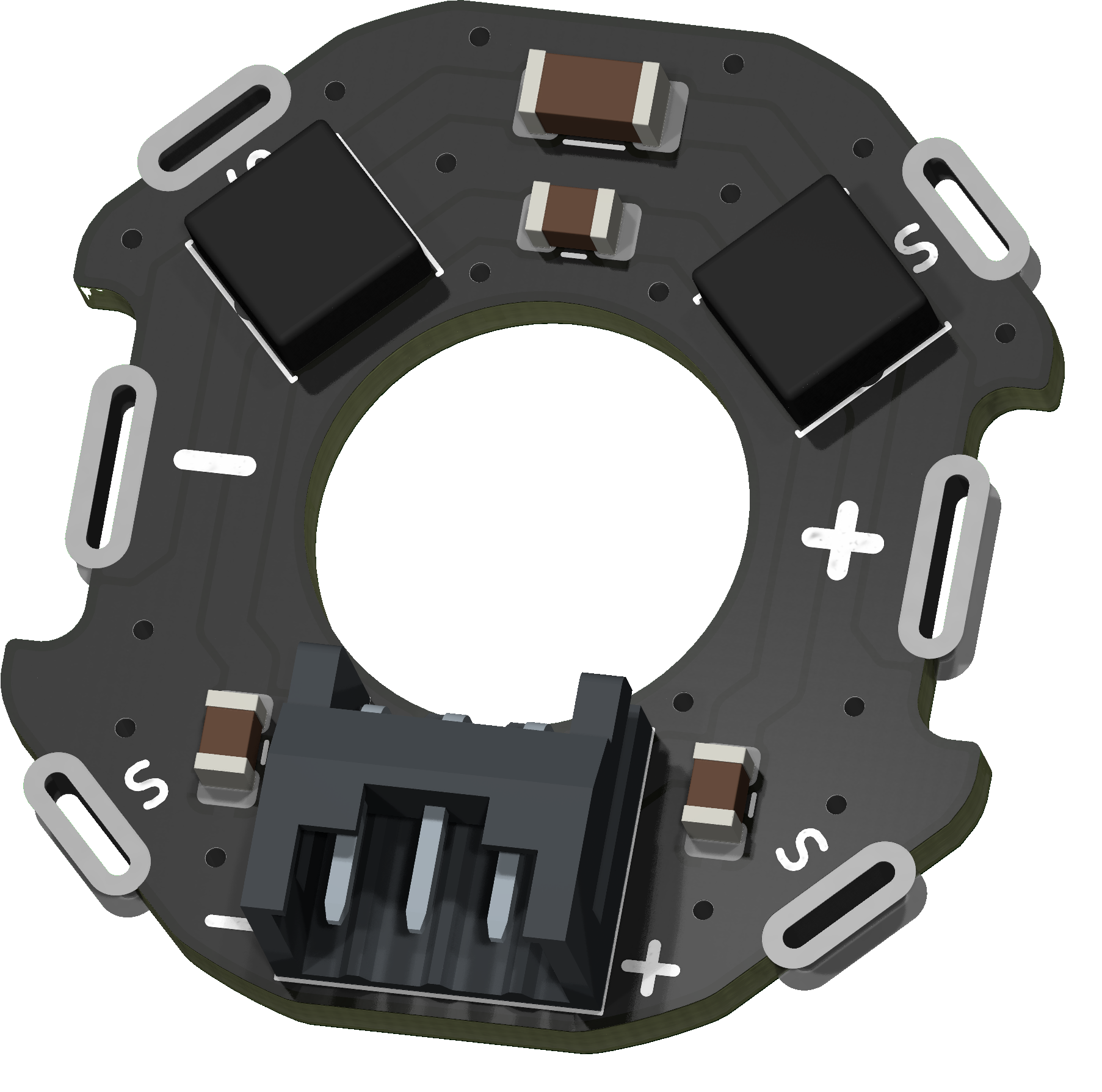

${BOARD NAME}, from the project README
From the project README

${BOARD NAME} bill of materials (BOM)

7 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DF3EA-3P-2H
J101
2
3.3uH
L102, L103
1
1uF
C101
2
22nF
C102, C103
1
100nF
C104

${BOARD NAME} design files

The KiCad project lives in the TrendBit/SMBR-hardware repository on GitHub; these links point at the commit this page was built from.

${BOARD NAME}: common questions

How big is the ${BOARD NAME}?

The ${BOARD NAME} measures 24 × 25.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ${BOARD NAME}?

7 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ${BOARD NAME} design files?

From the TrendBit/SMBR-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ${BOARD NAME} design in my own project?

Yes, under the terms of its GPL-3.0 license, which TrendBit chose for the repository.
