Gameboy camera printer shield
About the Gameboy camera printer shield

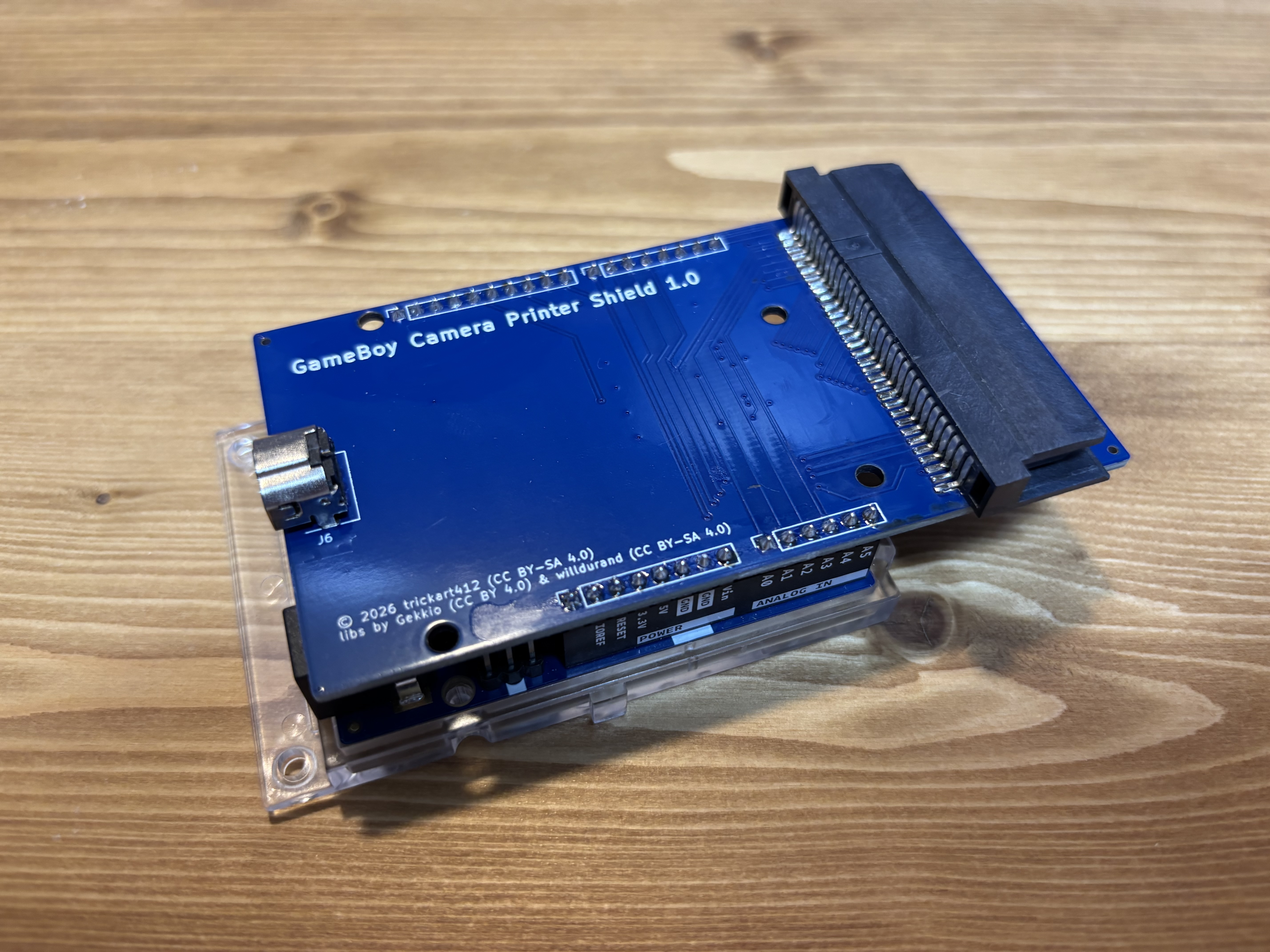

Gameboy camera printer shield is an open source PCB design by trickart, published on GitHub. It is a 2-layer board measuring 97.8 × 53.3 mm, with 13 components from 10 distinct parts.
Other key parts include the 74HC595. By type, the board carries 6 connectors, 4 capacitors, 2 ICs and 1 resistor.
It belongs with the retro computing and dev boards & breakouts designs in this gallery.
From the project
An Arduino Uno R4 WiFi shield (KiCad project) for dumping DMG/GBC cartridges — especially the Game Boy Camera — and printing to the Game Boy Pocket Printer.
An Arduino Uno R4 WiFi shield (KiCad project) for dumping DMG/GBC cartridges — especially the Game Boy Camera — and printing to the Game Boy Pocket Printer.
With an Arduino Uno R4 WiFi (5V logic, RA4M1) this shield lets you:
- Read the ROM header of DMG/GBC cartridges - Dump the Game Boy Camera's SRAM (128 KB of photos) to a .sav file - Print images to the Pocket Printer over the link cable
Main components on the Gameboy camera printer shield
Gameboy camera printer shield bill of materials (BOM)
13 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74HC595 | TSSOP-16_4.4x5mm_P0.65mm | U1, U2 |
| 1 | Power | PinSocket_1x08_P2.54mm_Vertical | J1 |
| 1 | Digital/PWM | PinSocket_1x10_P2.54mm_Vertical | J2 |
| 1 | Analog | PinSocket_1x06_P2.54mm_Vertical | J3 |
| 1 | Digital/PWM | PinSocket_1x08_P2.54mm_Vertical | J4 |
| 1 | GB_GBC_1X32 GB_GBC_1x32 | GB_GBC_1x32 | J5 |
| 1 | GameBoy_LinkPort | GameBoy_LinkPort_MGB_Horizontal | J6 |
| 3 | 0.1U 0.1u | C_0603_1608Metric | C1, C2, C3 |
| 1 | 10U 10u | C_0805_2012Metric | C4 |
| 1 | 10K 10k | R_0603_1608Metric | R1 |
Gameboy camera printer shield design files
The KiCad project lives in the trickart/gameboy-camera-printer-shield repository on GitHub; these links point at the commit this page was built from.
Gameboy camera printer shield: common questions
How big is the Gameboy camera printer shield?
The Gameboy camera printer shield measures 97.8 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Gameboy camera printer shield?
13 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Gameboy camera printer shield design files?
From the trickart/gameboy-camera-printer-shield repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Gameboy camera printer shield design in my own project?
The repository has no license, so all rights stay with trickart. Use it as a reference, and ask the author before reusing the design.
