VideoFrame PCB layout, top view — open source STM32 board by ts-manuel
Simulate this board

About the VideoFrame PCB

VideoFrame is an open source STM32 PCB design by ts-manuel, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 80 × 50 mm, with 103 components from 28 distinct parts.

Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the MP2451DT, SY6280A, HT7533-1 and USBLC6-2SC6. By type, the board carries 49 resistors, 31 capacitors, 6 ICs, 6 connectors, 4 diodes and 2 crystals.

It belongs with the displays & leds designs in this gallery.

From the project

The slowest video player with 7-Colors

e-Paper displays maintain the displayed image without needing any power. The image is updated every 24 minutes and an update cycle takes 18 seconds. Since the device is in sleep mode for the majority of the time, power draw is minimal and the batteries last for a decent amount of time.

The device is powered by 6 AA batteries.

For more info check out the full log on hackaday.io

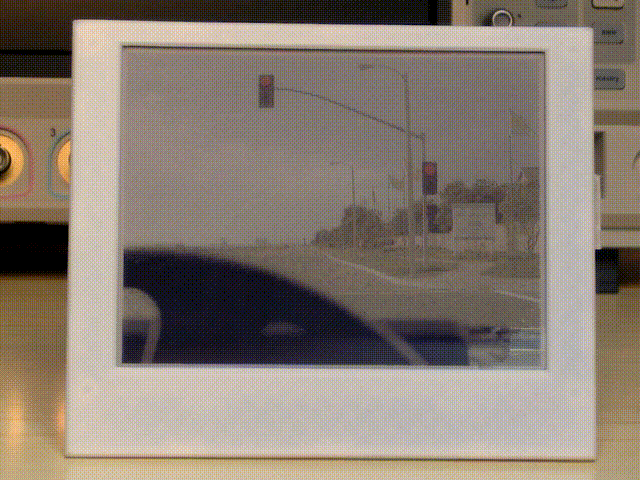

VideoFrame, from the project README
From the project README

Main components on the VideoFrame

MP2451DTSY6280AHT7533-1USBLC6-2SC6STM32F405RGT6

VideoFrame bill of materials (BOM)

103 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MP2451DT
U1
2
SY6280A
U2, U3
1
HT7533-1
U4
1
USBLC6-2SC6
U5
1
STM32F405RGT6
U6
1
8MHZ
8MHz
Y1
1
32.768KHZ
32.768KHz
Y2
1
-
POWER
J1
1
-
USB_B_Micro
J2
1
-
DBG_SWD
J3
1
-
Micro_SD_Card_Det
J4
1
-
DISPLAY
J5
1
USART3
J6
2
500MA
500mA
F1, F2
1
-
BOOT
SW1
1
-
RESET
SW2
4
SS14
D1, D2, D3, D4
1
MWSA0402S-4R7MT
L1
9
2.2U
2.2u
C1, C9, C11, C14, C18, C21, C22, C24 +1
10
100N
100n
C2, C3, C4, C5, C6, C7, C10, C16 +2
Show 8 more
QtyPartRefs
5
10U
10u
C8, C12, C19, C20, C30
6
15P
15p
C13, C15, C26, C27, C28, C29
1
47M
47m
C31
4
0Ω
R1, R8, R14, R33
14
33KΩ
R2, R3, R4, R5, R6, R7, R9, R11 +6
1
-
LDR
R10
26
100Ω
R13, R15, R19, R20, R21, R22, R23, R25 +18
4
1MΩ
R16, R17, R18, R24

VideoFrame design files

The KiCad project lives in the ts-manuel/VideoFrame repository on GitHub; these links point at the commit this page was built from.

VideoFrame: common questions

What microcontroller does the VideoFrame use?

The VideoFrame is built around the STM32F405RGT6, from the STM32 family.

How big is the VideoFrame PCB?

The VideoFrame measures 80 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the VideoFrame?

103 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the VideoFrame design files?

From the ts-manuel/VideoFrame repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the VideoFrame design in my own project?

Yes, under the terms of its GPL-3.0 license, which ts-manuel chose for the repository.

Can I test firmware for the VideoFrame without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
