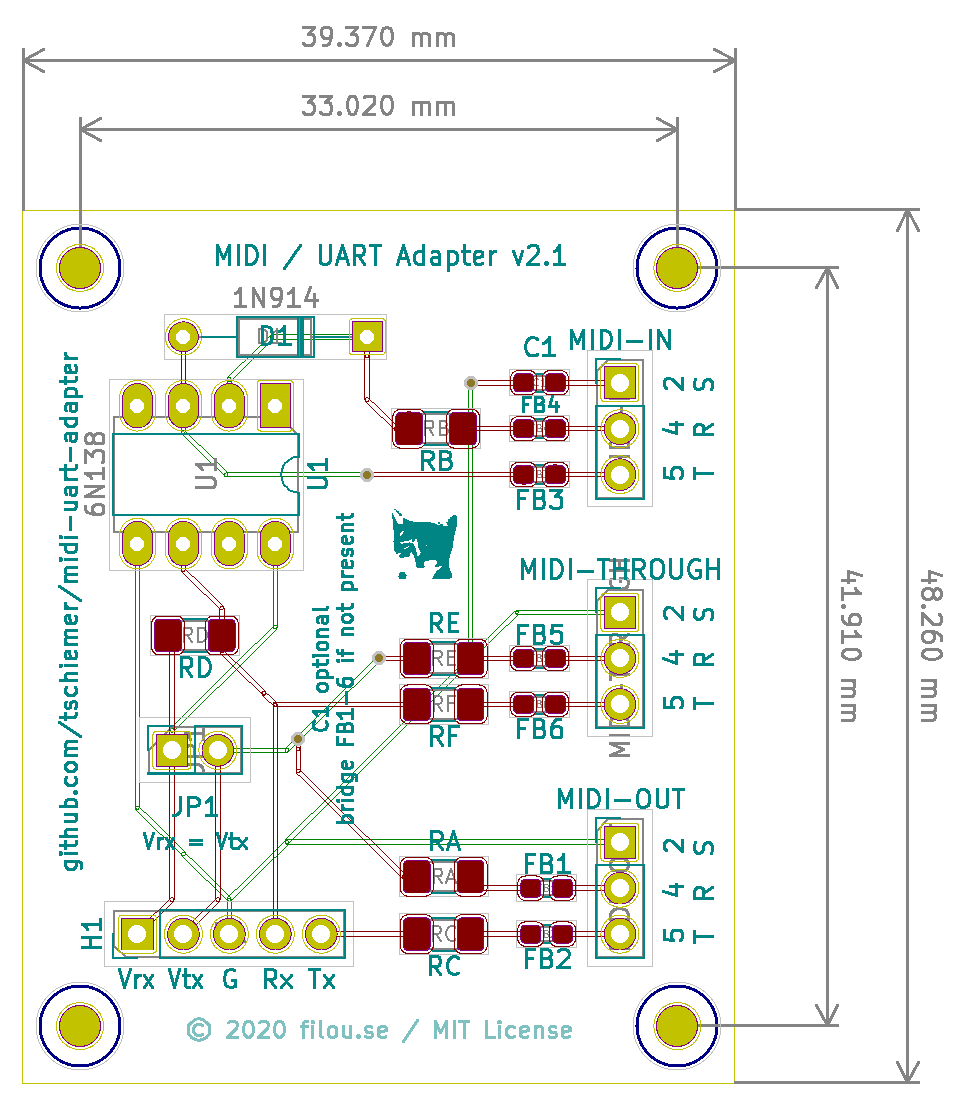

PCB layout for a simple MIDI (In-Through-Out) / UART - Adapter according to MIDI 1.0 Specification

PCB layout for a simple MIDI (In-Through-Out) / UART - Adapter according to MIDI 1.0 Specification

Does not directly include footprints for MIDI or TRS plugs but rather provides headers such as to more easily allow customization.

Also allows to use different voltage levels for RX, TX respectively (please use different resistors according to recommendations).

https://github.com/tschiemer/midi-uart-adapter

Midi uart adapter, from the project README — From the project README

Main components on the Midi uart adapter

Midi uart adapter bill of materials (BOM)

11 components, 6 distinct parts.

Qty	Part	Footprint	Refs
1	6N138	DIP-8_W7.62mm_LongPads	U1
1	Conn_01x05	PinHeader_1x05_P2.54mm_Vertical	H1
1	VCC_rx - VCC_tx	PinHeader_2x01_P2.54mm_Vertical	JP1
1	1N914	D_DO-35_SOD27_P10.16mm_Horizontal	D1
6	MMZ1608Y102BTA00	R_0603_1608Metric_Pad1.05x0.95mm_HandSolder	FB1, FB2, FB3, FB4, FB5, FB6
1	1 microF	C_0603_1608Metric_Pad1.05x0.95mm_HandSolder	C1
