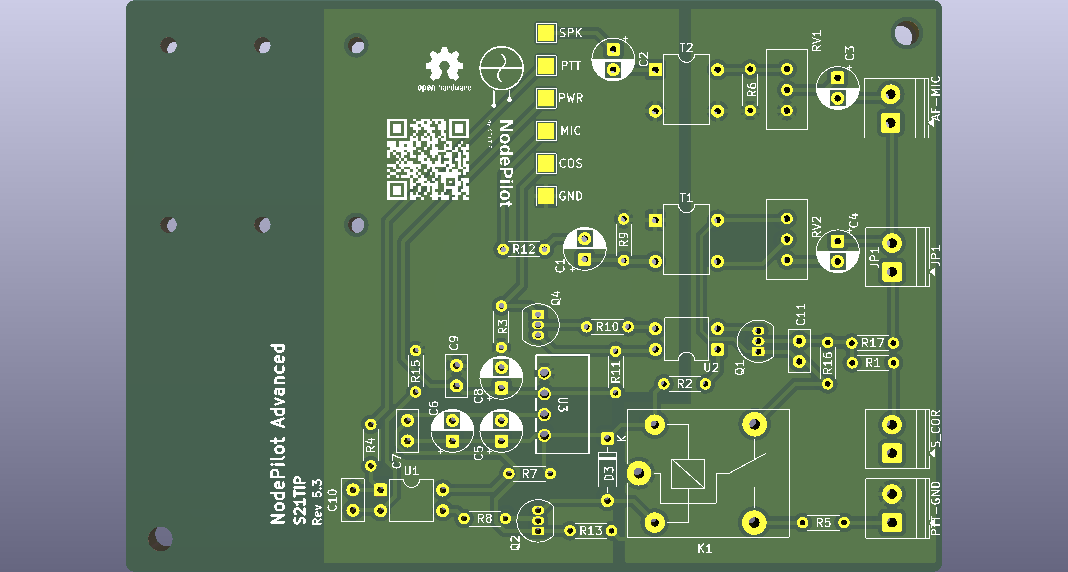

NodePilot PCB layout, top view — open source board by tushroy

About the NodePilot PCB

NodePilot is an open source PCB design by tushroy, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 100 × 70 mm, with 40 components from 21 distinct parts.

Other key parts include the PC817 and B0505S-1WR2. By type, the board carries 16 resistors, 11 capacitors, 3 ICs, 3 transistors, 2 transformers and 1 jumper.

It belongs with the audio and rf & radio designs in this gallery.

From the project

CM108-based AllStarLink radio interface with audio isolation, RF protection, and fully open KiCad hardware design. Created by S21TIP.

This project was designed for both personal use and small-scale production, with a focus on audio quality, RF robustness, and hardware protection.

Channel Driver to used with ASL3: Simpleusb

The complete KiCad schematic, PCB, and design files are publicly available under the CC-BY-SA-4.0 license.

Notes: If you are using buck converters to power Raspberry Pi boards, make sure the switching frequency is greater than 1 MHz for clean audio interfacing. Low-cost converters are often a significant source of RFI, although this circuit can eliminate most of it.

NodePilot, from the project README
From the project README

Main components on the NodePilot

PC817B0505S-1WR2

NodePilot bill of materials (BOM)

40 components, 21 distinct parts.

QtyPartRefs
2
PC817
U1, U2
1
B0505S-1WR2
U3
2
2N3904
Q1, Q4
1
2N2222
Q2
1
JP1
JP1
1
SRD-05VDC-SL-C
K1
2
10k
RV1, RV2
2
1:1 600R
T1, T2
1
1N5817
D3
4
4.7 uf
C1, C3, C4, C6
3
10 uf
C2, C5, C8
2
104
C7, C9
2
103
C10, C11
1
2.2k ohm
R1
4
680 ohm
R2, R4, R6, R9
4
1k ohm
R3, R8, R10, R11
1
2.2 ohm
R5
1
220 ohm
R7
2
10k ohm
R12, R17
2
0 ohm
R13, R15
Show 1 more
QtyPartRefs
1
100k ohm
R16

NodePilot design files

The KiCad project lives in the tushroy/NodePilot repository on GitHub; these links point at the commit this page was built from.

NodePilot: common questions

How big is the NodePilot PCB?

The NodePilot measures 100 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NodePilot?

40 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the NodePilot design files?

From the tushroy/NodePilot repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the NodePilot design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which tushroy chose for the repository.
