Mixer-W-Output-HP

twam·Mixer-W-Output-HP

Mixer-W-Output-HP PCB layout, top view — open source board by twam
Simulate this board

About the Mixer-W-Output-HP PCB

Mixer-W-Output-HP is an open source PCB design by twam, published on GitHub. It is a 4-layer board measuring 50 × 50 mm, with 79 components from 25 distinct parts.

Other key parts include the LM4562 and LME49600. By type, the board carries 36 resistors, 23 capacitors, 5 ICs, 5 connectors, 4 diodes and 3 transistors.

It belongs with the audio designs in this gallery.

From the project

This repository is part of the USB audio mixer project described on https://www.twam.info/general/building-a-custom-usb-audio-mixer.

This repository is part of the USB audio mixer project described on https://www.twam.info/general/building-a-custom-usb-audio-mixer.

The 'W-Output HP' board is an W-Output compatible head phone amplifier, which can be used on W-DAC 4493 or W-DAC S 4493. It is based on the HP Buf by Tomi Nihtilä.

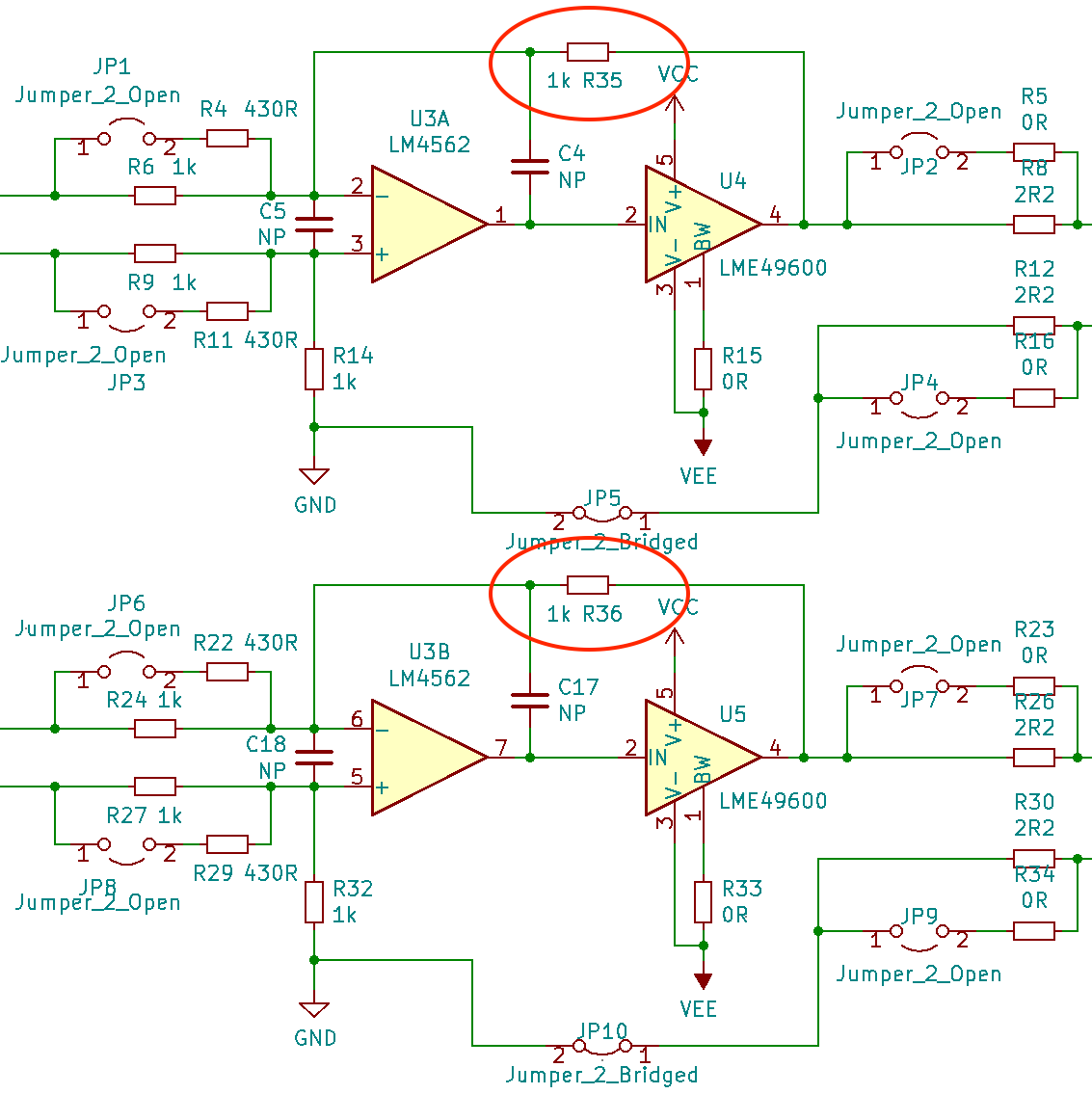

Revision 1 misses two feedback resistors (R35, R36 in latest schematic):

Mixer-W-Output-HP, from the project README
From the project README

Main components on the Mixer-W-Output-HP

LM4562LME49600

Mixer-W-Output-HP bill of materials (BOM)

79 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
LM4562
U1, U2, U3
2
LME49600
U4, U5
1
MMBT3906
Q1
2
MMBT3904
Q2, Q3
1
Conn_01x10
J1
1
Conn_01x08
J2
1
OUT
J3
2
NC3MBH-1
J4, J5
2
G6K-2
K1, K2
2
LL4148
D1, D4
1
C2286
red
D2
1
MMSZ4696
D3
1
600R/100M
L1
9
10U
10u
C1, C2, C3, C6, C7, C15, C16, C19 +1
4
NP
C4, C5, C17, C18
2
100u
C8, C21
8
100N
100n
C9, C10, C11, C12, C13, C14, C22, C23
2
4K7
4k7
R1, R19
7
C21189
0R
R2, R5, R15, R16, R23, R33, R34
4
10K
10k
R3, R18, R20, R21
Show 5 more
QtyPartRefs
4
430R
R4, R11, R22, R29
9
1k
R6, R9, R14, R17, R24, R27, R32, R35 +1
4
47K
47k
R7, R13, R25, R31
4
2R2
R8, R12, R26, R30
2
2M2
R10, R28

Mixer-W-Output-HP design files

The KiCad project lives in the twam/Mixer-W-Output-HP repository on GitHub; these links point at the commit this page was built from.

Mixer-W-Output-HP: common questions

How big is the Mixer-W-Output-HP PCB?

The Mixer-W-Output-HP measures 50 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Mixer-W-Output-HP?

79 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mixer-W-Output-HP design files?

From the twam/Mixer-W-Output-HP repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Mixer-W-Output-HP design in my own project?

The repository has no license, so all rights stay with twam. Use it as a reference, and ask the author before reusing the design.
