About the Hackpack v4-hardware PCB

Hackpack v4-hardware is an open source Raspberry Pi PCB design by twilio, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 93.5 × 149.9 mm, with 40 components from 22 distinct parts.

Its main chip is the Raspberry_Pi_Zero_W Header, from the Raspberry Pi family. Other key parts include the WS2812B, MCP3008, ILI9341_28_TFT_LCD_TOUCH and PSP_1000_JSTK. By type, the board carries 11 resistors, 8 ICs, 8 capacitors, 7 switches, 3 connectors and 2 transistors.

It belongs with the wearables designs in this gallery.

From the project

Hardware collateral for the Twilio 2018 SIGNAL conference badge.

See also our blog post announcing this repository.

Everything you need to build a badge PCB can be found in the KiCad folder. The Hackpack v4 was designed using KiCad major version 5. Download a copy here.

You'll also need to purchase a Raspberry Pi Zero W and a 8GB or larger MicroSD card to use the board.

You can find pre-generated Gerbers in the KiCad/Gerbers directory. Use them at your PCB house of choice to manufacture a board.

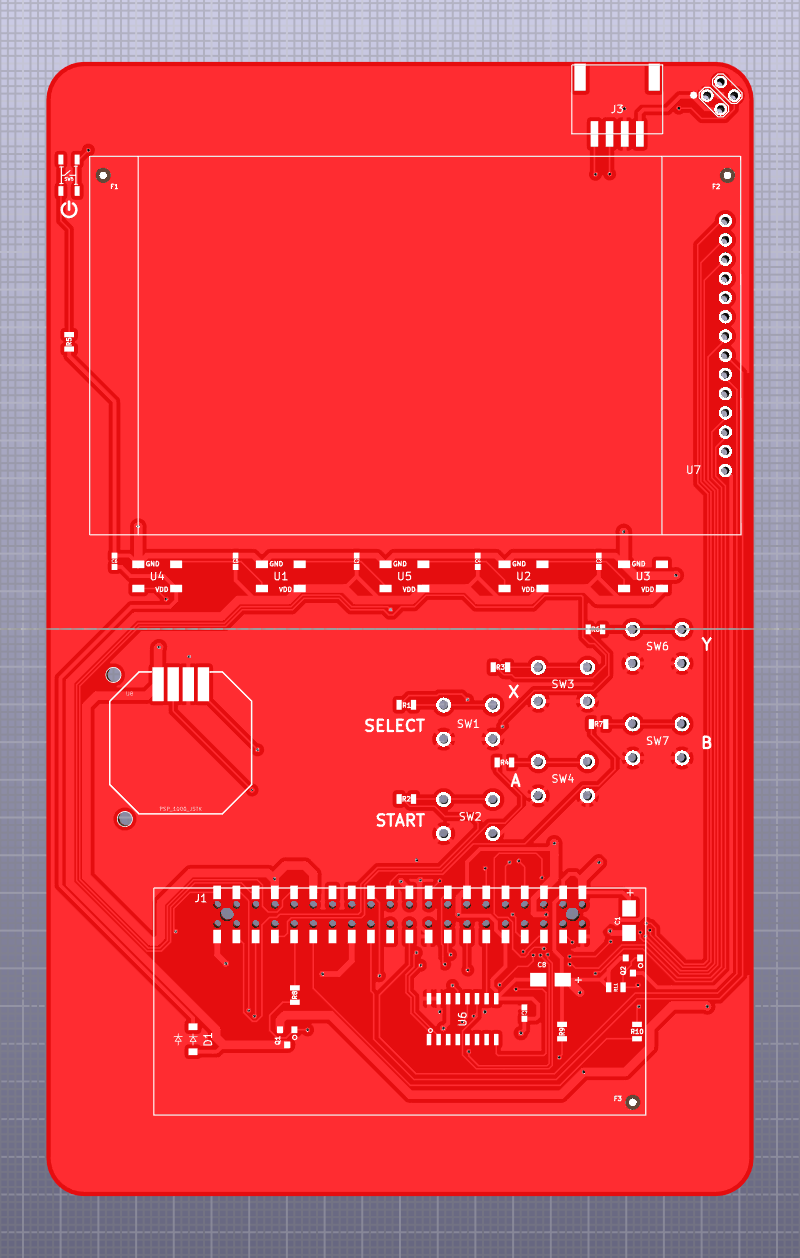

Hackpack v4-hardware, from the project README
From the project README

Main components on the Hackpack v4-hardware

WS2812BMCP3008ILI9341_28_TFT_LCD_TOUCHPSP_1000_JSTK

Hackpack v4-hardware bill of materials (BOM)

40 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
5
WS2812B
U1, U2, U3, U4, U5
1
MCP3008
U6
1
ILI9341_28_TFT_LCD_TOUCH
U7
1
PSP_1000_JSTK
U8
2
NCE3407A
Q1, Q2
1
Raspberry_Pi_Zero_W Header
J1
1
CONN_02X02_ODD_EVEN
Conn_02x02_Odd_Even
J2
1
Grove_UART
J3
1
SEL_B
SW1
1
START_B
SW2
1
X_B
SW3
1
A_B
SW4
1
PWR_B
SW5
1
Y_B
SW6
1
B_B
SW7
1
MMSD4148
D1
2
100UF
100uF
C1, C8
6
.1uF
C2, C3, C4, C5, C6, C7
6
1k
R1, R2, R3, R4, R6, R7
1
330
R5
Show 2 more
QtyPartRefs
2
100
R8, R10
2
10K
10k
R9, R11

Hackpack v4-hardware design files

The KiCad project lives in the twilio/hackpack-v4-hardware repository on GitHub; these links point at the commit this page was built from.

Hackpack v4-hardware: common questions

What microcontroller does the Hackpack v4-hardware use?

The Hackpack v4-hardware is built around the Raspberry_Pi_Zero_W Header, from the Raspberry Pi family.

How big is the Hackpack v4-hardware PCB?

The Hackpack v4-hardware measures 93.5 × 149.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpack v4-hardware?

40 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackpack v4-hardware design files?

From the twilio/hackpack-v4-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Hackpack v4-hardware design in my own project?

Yes, under the terms of its Apache-2.0 license, which twilio chose for the repository.

Can I test firmware for the Hackpack v4-hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
