IceScreamer

UC3Music·IceScreamer·KiCad/icescreamer.kicad_pcb

IceScreamer PCB layout, top view — open source board by UC3Music

About the IceScreamer PCB

IceScreamer is an open source PCB design by UC3Music, published on GitHub. It is a 2-layer board measuring 60 × 85 mm, with 87 components from 41 distinct parts.

Other key parts include the RC4558. By type, the board carries 36 resistors, 26 capacitors, 8 diodes, 7 transistors, 3 connectors and 2 switches.

It belongs with the audio designs in this gallery.

From the project

A widely known overdrive pedal

This project has a very similar electronics to Ibanez TS-808 TubeScreamer. Moreover this board let you choose among several modifications of the original design, and implement it easily. The most important modification is the ability to build a true bypass or buffered bypass pedal. Also there will be plenty of room for the most usual mods out there:

- Easier to provide "more gain" - Easy to replace Op-Amp - Easy to swap diodes (different distortion sounds) - Easy to swap between flavors TS5, TS10 and TS808

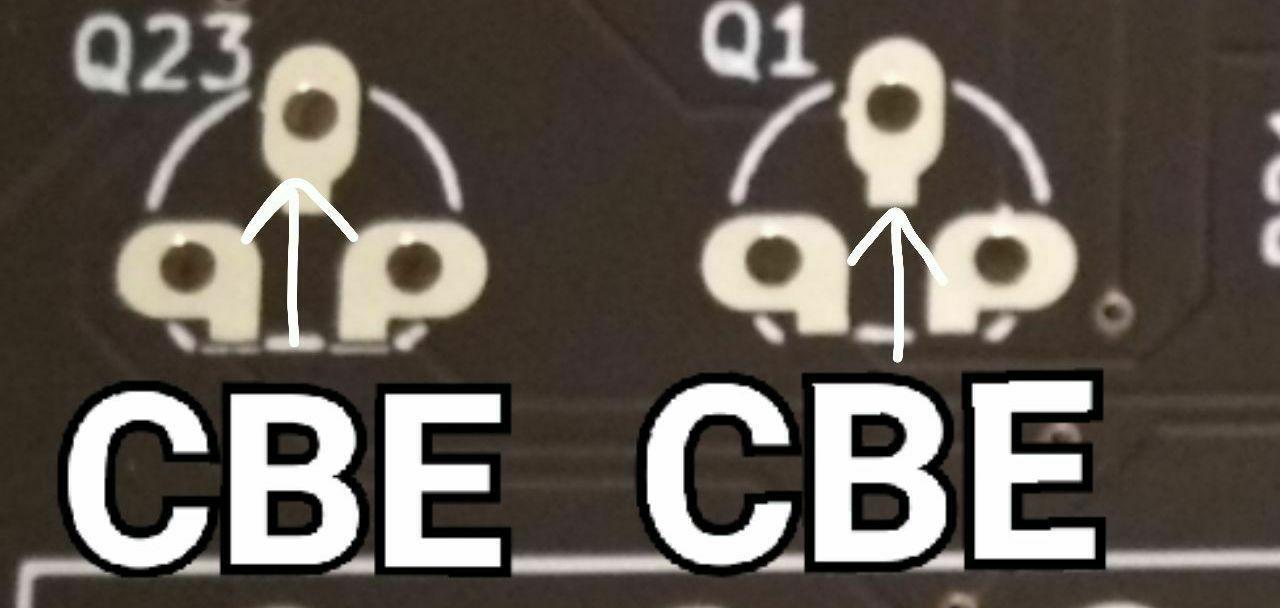

IceScreamer, from the project README
From the project README

Main components on the IceScreamer

RC4558

IceScreamer bill of materials (BOM)

87 components, 41 distinct parts.

QtyPartRefs
1
RC4558
U1
5
NPN_BC547
Q1, Q2, Q20, Q21, Q22
2
MMBF4392L
Q23, Q24
2
NMJ6HFD2
J1, J2
1
Barrel_Jack_Switch
J3
1
Battery_Cell
BT1
1
log 470k
POT1
1
lin 22K
POT2
1
log 100K
POT3
1
SW_TPDT
SW1
1
SW_Push
SW20
1
1N4001
D1
2
1N4148
D2, D3
1
LED
D4
3
1N4148
D20, D21, D22
1
4V7_Zener
D23
2
220uF
C1, C2
9
100nF
C3, C4, C12, C14, C15, C16, C17, C18 +1
1
22nF
C5
2
1uF
C6, C11
Show 21 more
QtyPartRefs
2
47pF
C7, C8
1
220nF
C9
1
220nF
C10
1
10uF
C13
2
47nF
C21, C27
3
1nF
C22, C25, C26
2
100pF
C23, C24
8
10K
R1, R2, R5, R6, R10, R15, R17, R19
4
1K
R3, R9, R11, R13
4
470K
R4, R14, R20, R21
3
47K
R7, R28, R29
1
4K7
R8
1
220R
R12
2
100R
R16, R36
1
R
R18
3
1M
R22, R26, R32
5
56K
R23, R24, R30, R31, R34
1
22K
R25
1
22R
R27
1
0R
R33
1
36K
R35

IceScreamer design files

The KiCad project lives in the UC3Music/IceScreamer repository on GitHub; these links point at the commit this page was built from.

IceScreamer: common questions

How big is the IceScreamer PCB?

The IceScreamer measures 60 × 85 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the IceScreamer?

87 components, from 41 distinct parts. The full bill of materials is listed on this page.

Where can I download the IceScreamer design files?

From the UC3Music/IceScreamer repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the IceScreamer design in my own project?

The repository has no license, so all rights stay with UC3Music. Use it as a reference, and ask the author before reusing the design.
