Mpe32sensor
About the Mpe32sensor PCB
Mpe32sensor is an open source PCB design by udu3324, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 16 × 21 mm, with 6 components from 5 distinct parts.
Other key parts include the TMAG5273A1. By type, the board carries 3 connectors, 1 IC, 1 diode and 1 capacitor.
It belongs with the audio designs in this gallery.
From the project

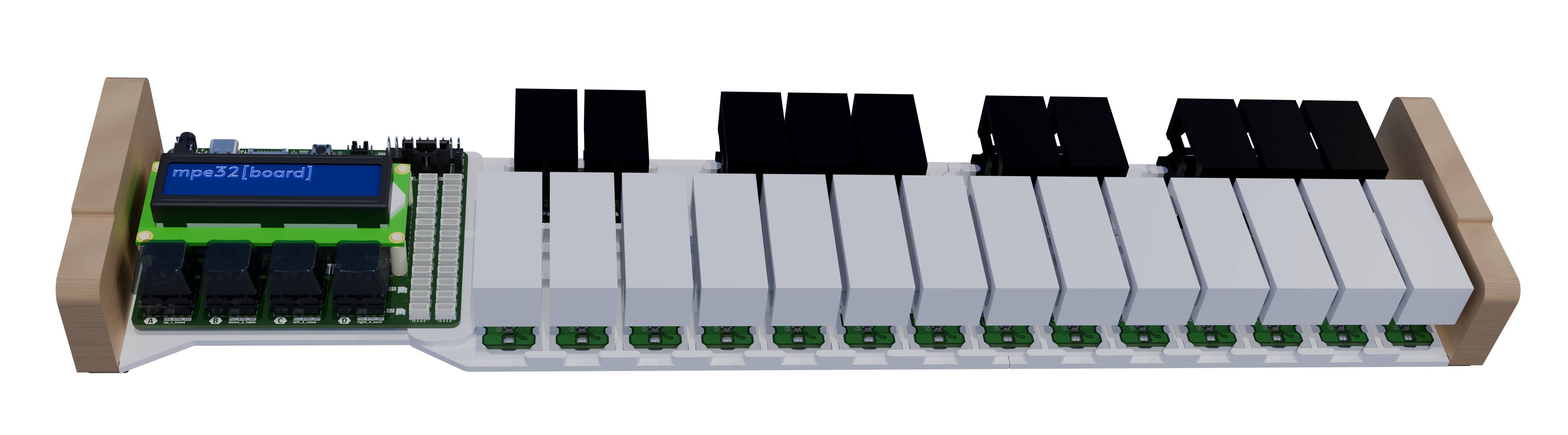

an expressive midi controller that has onboard sound processing with super hackable io
Built in DSP Support for Programs and Sequencer Hacker Header Exposed GPIO Micro-SD Card Support * Onboard SDRAM for extended recording/memory
There is sample code here for trying out the mpe32sensors standalone on the Arduino platform.
Each key is press fit and can also be screwed in with a m3 screw and nut if needed.
Due to my 3d-printer being too small, I have to cut the board in half to print. This is later adhered with uv-glue.
Main components on the Mpe32sensor
Mpe32sensor bill of materials (BOM)
6 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TMAG5273A1 TMAG5273 | SOT-23-6 | U1 |
| 1 | SM04B-SRSS-TB Conn_01x04 | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J1 |
| 2 | DNP Conn_01x01 | PinSocket_1x01_P2.54mm_Horizontal | J2, J3 |
| 1 | SK6812MINI-E-012 SK6812MINI-E | LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount | D1 |
| 1 | 100nF 0603 X7R 100nF | C_0603_1608Metric | C1 |
Mpe32sensor design files
The KiCad project lives in the udu3324/mpe32board-midi repository on GitHub; these links point at the commit this page was built from.
Mpe32sensor: common questions
How big is the Mpe32sensor PCB?
The Mpe32sensor measures 16 × 21 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mpe32sensor?
6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Mpe32sensor design files?
From the udu3324/mpe32board-midi repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Mpe32sensor design in my own project?
Yes, under the terms of its GPL-3.0 license, which udu3324 chose for the repository.
