About the Game and watch swd implant PCB
Game and watch swd implant is an open source Microchip SAM PCB design by UlfWetzker, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 13.9 × 38.5 mm, with 16 components from 13 distinct parts.
Its main chip is the ATSAMD21E18A, from the Microchip SAM family. Other key parts include the AP2127K-3.3. By type, the board carries 6 connectors, 5 capacitors, 3 resistors and 2 ICs.
It belongs with the wearables and usb & debug tools designs in this gallery.
From the project

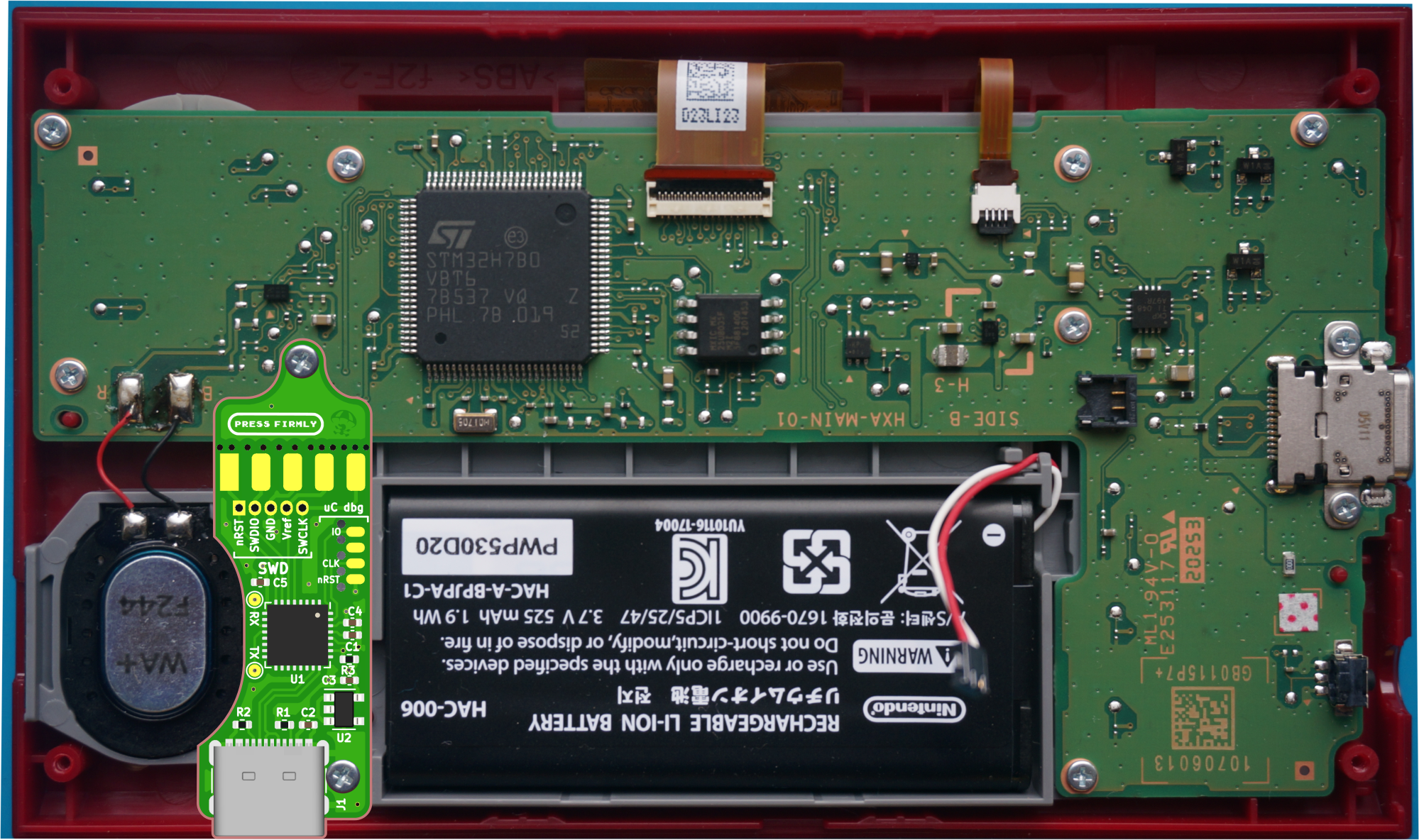

A small DAP-Link SWD programmer/debugger that fits insight a Nintendo® Game & Watch™ 2020.

Main components on the Game and watch swd implant
Game and watch swd implant bill of materials (BOM)
16 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATSAMD21E18A Microchip Tech | QFN-32-1EP_5x5mm_P0.5mm_EP3.6x3.6mm | U1 |
| 1 | AP2127K-3.3 Diodes Incorporated | SOT-23-5 | U2 |
| 1 | U262-161N-4BVC11 XKB Connectivity | USB_C_Receptacle_XKB_U262-16XN-4BVC11 | J1 |
| 1 | G&W pressure contact | GnW_SWD | J2 |
| 1 | 50 mil Pin Header | PinHeader_1x05_P1.27mm_Vertical | J3 |
| 1 | SOICbite | SOIC_clipProgSmall | J4 |
| 1 | 100 mil Pin Header | PinHeader_1x05_P2.45mm_edge | J5 |
| 1 | 100 mil Pin header | PinHeader_1x03_P2.45mm_edge | J6 |
| 2 | 1uF Samsung Electro-Mechanics | C_0402_1005Metric | C1, C2 |
| 1 | 10uF Samsung Electro-Mechanics | C_0402_1005Metric | C3 |
| 2 | 100nF Samsung Electro-Mechanics | C_0402_1005Metric | C4, C5 |
| 2 | 5.1K Uniroyal Elec | R_0402_1005Metric | R1, R2 |
| 1 | 10k Uniroyal Elec | R_0402_1005Metric | R3 |
Game and watch swd implant design files
The KiCad project lives in the UlfWetzker/game-and-watch-swd-implant repository on GitHub; these links point at the commit this page was built from.
- Layoutswd_implant.kicad_pcb
- Schematicswd_implant.kicad_sch
Game and watch swd implant: common questions
What microcontroller does the Game and watch swd implant use?
The Game and watch swd implant is built around the ATSAMD21E18A, from the Microchip SAM family.
How big is the Game and watch swd implant PCB?
The Game and watch swd implant measures 13.9 × 38.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Game and watch swd implant?
16 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Game and watch swd implant design files?
From the UlfWetzker/game-and-watch-swd-implant repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Game and watch swd implant design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which UlfWetzker chose for the repository.
Can I test firmware for the Game and watch swd implant without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
