EspMessenger

usini·espMessenger·kicad/espMessenger.kicad_pcb

EspMessenger PCB layout, top view — open source ESP8266 board by usini

About the EspMessenger PCB

EspMessenger is an open source ESP8266 PCB design by usini, published on GitHub under the MIT license. It is a 2-layer board measuring 51.3 × 32 mm, with 3 components from 3 distinct parts.

Its main chip is the WeMos_D1_mini, from the ESP8266 family. By type, the board carries 2 connectors and 1 IC.

It belongs with the displays & leds and iot & wireless designs in this gallery.

From the project

A small and cheap led matrix to display messages using REST request

An 8x8 Matrix WiFi Display --------------------------

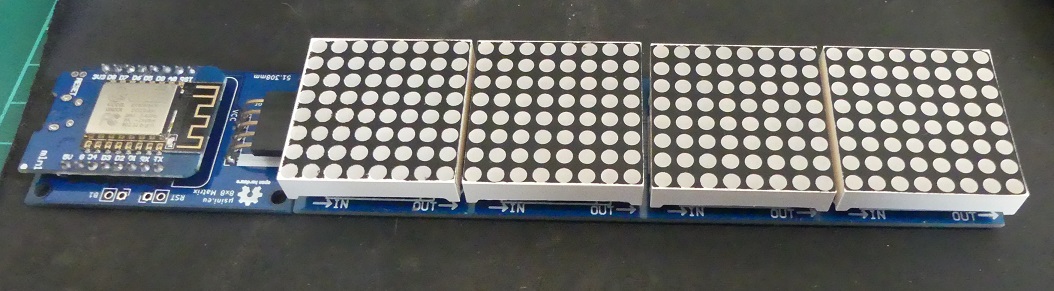

EspMessenger, from the project README
From the project README

Main components on the EspMessenger

WeMos_D1_mini

EspMessenger bill of materials (BOM)

3 components, 3 distinct parts.

QtyPartRefs
1
WeMos_D1_mini
U1
1
RST Button
J1
1
USER Button
J3

EspMessenger design files

The KiCad project lives in the usini/espMessenger repository on GitHub; these links point at the commit this page was built from.

EspMessenger: common questions

What microcontroller does the EspMessenger use?

The EspMessenger is built around the WeMos_D1_mini, from the ESP8266 family.

How big is the EspMessenger PCB?

The EspMessenger measures 51.3 × 32 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EspMessenger?

3 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the EspMessenger design files?

From the usini/espMessenger repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the EspMessenger design in my own project?

Yes, under the terms of its MIT license, which usini chose for the repository.

Can I test firmware for the EspMessenger without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
