Atfblast
About the Atfblast PCB
Atfblast is an open source PCB design by UzixLS, published on GitHub under the MIT license. It is a 2-layer board measuring 88.8 × 42.8 mm, with 32 components from 24 distinct parts.
Other key parts include the L7812, L7805 and LM350. By type, the board carries 12 resistors, 4 connectors, 4 diodes, 4 capacitors, 3 ICs and 2 transistors.
It belongs with the usb & debug tools designs in this gallery.
From the project

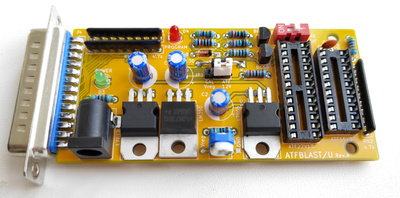

ATF/GAL chips programmer
ATF16V8, GAL16V8, ATF22V10 and GAL22V10 chips programmer.
This is custom PCB variant of ATFBlast project.
See http://www.bhabbott.net.nz/atfblast.html for details.
Main components on the Atfblast
Atfblast bill of materials (BOM)
32 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L7812 | TO-220-3_Horizontal_TabDown | U1 |
| 1 | L7805 | TO-220-3_Horizontal_TabDown | U2 |
| 1 | LM350 | TO-220-3_Horizontal_TabDown | U3 |
| 1 | BC547 | TO-92 | Q1 |
| 1 | BC557 | TO-92 | Q2 |
| 1 | DS-210 | BarrelJack_Horizontal | J1 |
| 1 | DIP20-panel | DIP-20_W7.62mm_Socket | J2 |
| 1 | DIP24-panel | DIP-24_W7.62mm_Socket | J3 |
| 1 | DB25_Male | DSUB-25_Male_EdgeMount_P2.77mm | J4 |
| 1 | Jumper_3 | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | 4.7k | Potentiometer_Runtron_RM-063_Horizontal | RV1 |
| 1 | SW_DIP_x01 | SW_DIP_SPSTx01_Slide_9.78x4.72mm_W7.62mm_P2.54mm | SW1 |
| 1 | SB130 | D_DO-41_SOD81_P12.70mm_Horizontal | D1 |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D2 |
| 2 | LED | LED_D4.0mm | D3, D4 |
| 1 | 100n | C_Disc_D5.0mm_W2.5mm_P2.50mm | C1 |
| 3 | 10u | CP_Radial_D8.0mm_P3.50mm | C2, C3, C4 |
| 3 | 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R5, R8 |
| 1 | 22k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 1 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R4 |
| 2 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6, R7 |
| 1 | 240 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9 |
| 3 | 4.7k | R_Array_SIP9 | RN1, RN2, RN3 |
Atfblast design files
The KiCad project lives in the UzixLS/atfblast repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/atfblast.kicad_pcb
- Schematicpcb/atfblast.kicad_sch
Atfblast: common questions
How big is the Atfblast PCB?
The Atfblast measures 88.8 × 42.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Atfblast?
32 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the Atfblast design files?
From the UzixLS/atfblast repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Atfblast design in my own project?
Yes, under the terms of its MIT license, which UzixLS chose for the repository.
