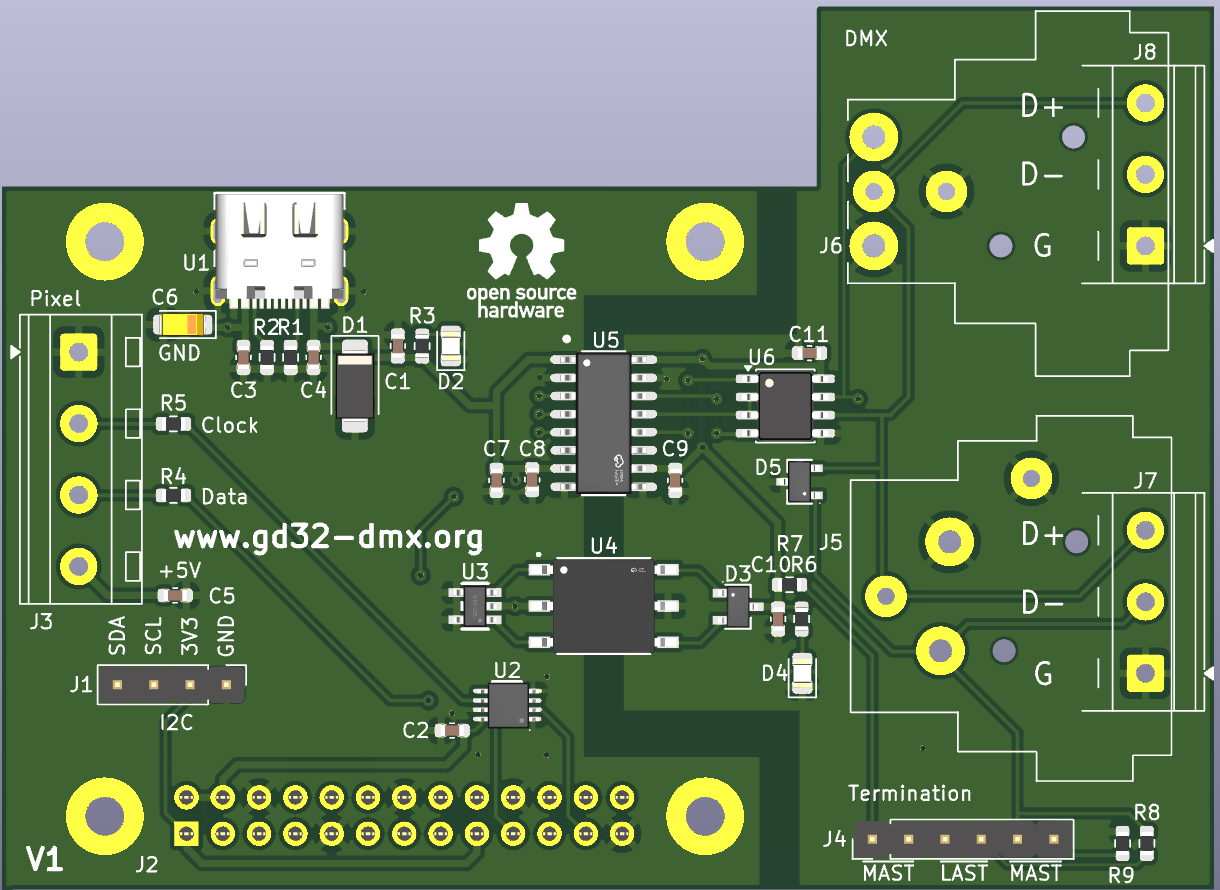

KiCad-DMX-Pixel-1
About the KiCad-DMX-Pixel-1 PCB
KiCad-DMX-Pixel-1 is an open source PCB design by vanvught, published on GitHub under the MIT license. It is a 2-layer board measuring 84.8 × 62.1 mm, with 31 components from 17 distinct parts.
Other key parts include the GT-USB-7010ASV, 74LVC2G125, SN6501DBVR, MXPP6-3K6110 and CA-IS3731HN. By type, the board carries 11 capacitors, 9 resistors, 6 ICs and 5 diodes.
It belongs with the displays & leds designs in this gallery.
From the project
KiCad DMX Pixel 1 Port
- https://github.com/vanvught/GD32F103RC-DMX512-RDM - https://github.com/vanvught/GD32F107RC-DMX512-RDM - https://github.com/vanvught/GD32F303RC-DMX512-RDM
More information https://www.gd32-dmx.org/pixel.html
Main components on the KiCad-DMX-Pixel-1
KiCad-DMX-Pixel-1 bill of materials (BOM)
31 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GT-USB-7010ASV G-Switch(品赞) | USB-C-SMD_G-SWITCH_GT-USB-7010ASV | U1 |
| 1 | 74LVC2G125 | SM8_L3.2-W2.9-P0.65-LS4.3-BR | U2 |
| 1 | SN6501DBVR TI(德州仪器) | SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR | U3 |
| 1 | MXPP6-3K6110 Wuxi Maxinmicro(无锡明芯微) | XFMR-SMD_L7.1-W6.6-P2.54_LT31-120 | U4 |
| 1 | CA-IS3731HN Chipanalog(川土微) | SOIC-16_L9.9-W3.9-P1.27-LS6.0-BL | U5 |
| 1 | MAX485E | SOIC-8_3.9x4.9mm_P1.27mm | U6 |
| 1 | SMAJ5.0A | D_SMA | D1 |
| 2 | LED | LED_0805_2012Metric | D2, D4 |
| 1 | BAT54C CJ(江苏长电/长晶) | SOT-23-3_L2.9-W1.6-P1.90-LS2.8-BR | D3 |
| 1 | PSM712-LF-T7 PROTEK | SOT-23-3_L3.0-W1.7-P0.95-LS2.9-BR | D5 |
| 3 | 10uF/16V | C_0603_1608Metric | C1, C8, C10 |
| 7 | 100n | C_0603_1608Metric | C2, C3, C4, C5, C7, C9, C11 |
| 1 | 10uF | CP_EIA-3216-18_Kemet-A | C6 |
| 4 | 5K1 | R_0603_1608Metric | R1, R2, R3, R6 |
| 2 | 100Ω | R_0603_1608Metric | R4, R5 |
| 2 | 680Ω | R_0603_1608Metric | R7, R9 |
| 1 | 120Ω | R_0603_1608Metric | R8 |
KiCad-DMX-Pixel-1 design files
The KiCad project lives in the vanvught/KiCad-DMX-Pixel-1 repository on GitHub; these links point at the commit this page was built from.
- LayoutDMX-Pixel-1.kicad_pcb
- SchematicDMX-Pixel-1.kicad_sch
KiCad-DMX-Pixel-1: common questions
How big is the KiCad-DMX-Pixel-1 PCB?
The KiCad-DMX-Pixel-1 measures 84.8 × 62.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KiCad-DMX-Pixel-1?
31 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the KiCad-DMX-Pixel-1 design files?
From the vanvught/KiCad-DMX-Pixel-1 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the KiCad-DMX-Pixel-1 design in my own project?
Yes, under the terms of its MIT license, which vanvught chose for the repository.
