About the KiCad-GD32F207RG-Pixel-8 PCB

KiCad-GD32F207RG-Pixel-8 is an open source PCB design by vanvught, published on GitHub under the MIT license. It is a 2-layer board measuring 65.5 × 55 mm, with 29 components from 8 distinct parts.

Other key parts include the GT-USB-7010ASV and 74HCT245. By type, the board carries 19 resistors, 5 capacitors, 3 ICs and 2 diodes.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

KiCad GD32F207RG Pixel 8-ports x 4 Universes

Firmware https://github.com/vanvught/GD32F207RG-DMX512-RDM

More information https://www.gd32-dmx.org/pixel.html

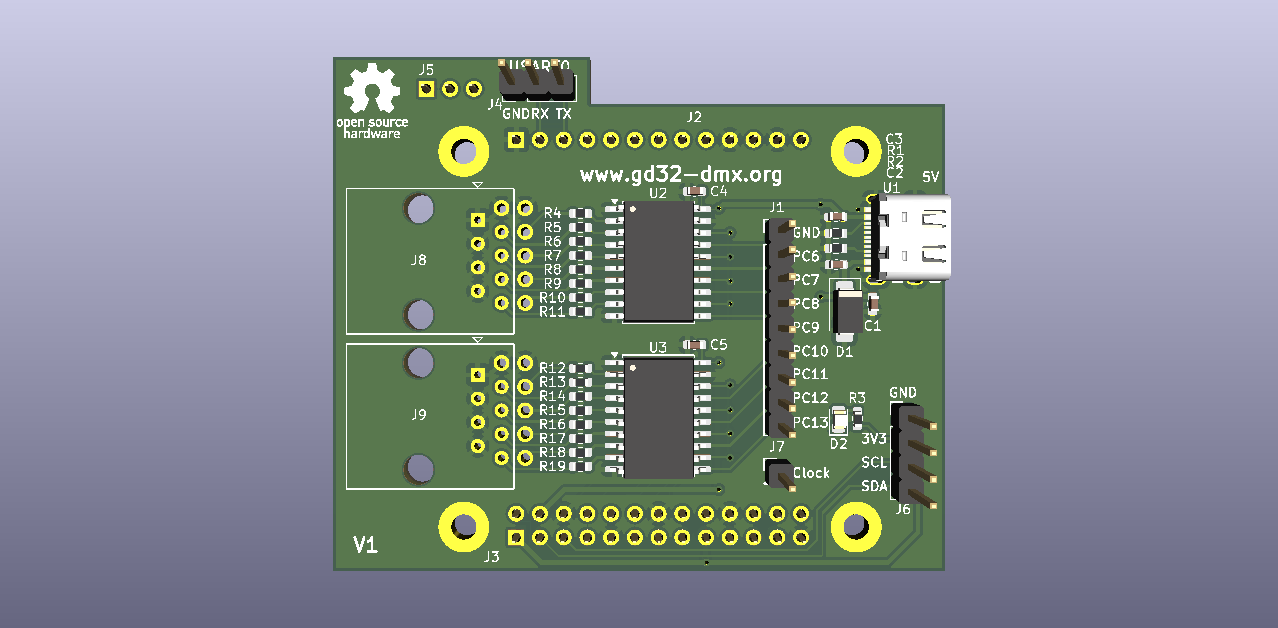

KiCad-GD32F207RG-Pixel-8, from the project README — From the project README

Main components on the KiCad-GD32F207RG-Pixel-8

GT-USB-7010ASV 74HCT245

KiCad-GD32F207RG-Pixel-8 bill of materials (BOM)

29 components, 8 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	GT-USB-7010ASV G-Switch(品赞)	USB-C-SMD_G-SWITCH_GT-USB-7010ASV	U1
2	74HCT245	SOIC-20W_7.5x12.8mm_P1.27mm	U2, U3
1	SMAJ5.0A	D_SMA	D1
1	LED	LED_0805_2012Metric	D2
1	10UF/16V 10uF/16V	C_0603_1608Metric	C1
4	100N 100n	C_0603_1608Metric	C2, C3, C4, C5
3	5K1	R_0603_1608Metric	R1, R2, R3
16	100Ω	R_0603_1608Metric	R4, R5, R6, R7, R8, R9, R10, R11 +8

KiCad-GD32F207RG-Pixel-8 design files

The KiCad project lives in the vanvught/KiCad-GD32F207RG-Pixel-8 repository on GitHub; these links point at the commit this page was built from.

KiCad-GD32F207RG-Pixel-8: common questions

How big is the KiCad-GD32F207RG-Pixel-8 PCB?

The KiCad-GD32F207RG-Pixel-8 measures 65.5 × 55 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad-GD32F207RG-Pixel-8?

29 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KiCad-GD32F207RG-Pixel-8 design files?

From the vanvught/KiCad-GD32F207RG-Pixel-8 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KiCad-GD32F207RG-Pixel-8 design in my own project?

Yes, under the terms of its MIT license, which vanvught chose for the repository.
