ESP32-Zip
About the ESP32-Zip PCB
ESP32-Zip is an open source ESP32 PCB design by vintlabs, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 65 × 30 mm, with 37 components from 18 distinct parts.
Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the AP7215-33YG-13 and CP2102N-A01-GQFN24. By type, the board carries 11 resistors, 10 capacitors, 5 diodes, 4 connectors, 3 ICs and 2 transistors.
It belongs with the iot & wireless designs in this gallery.

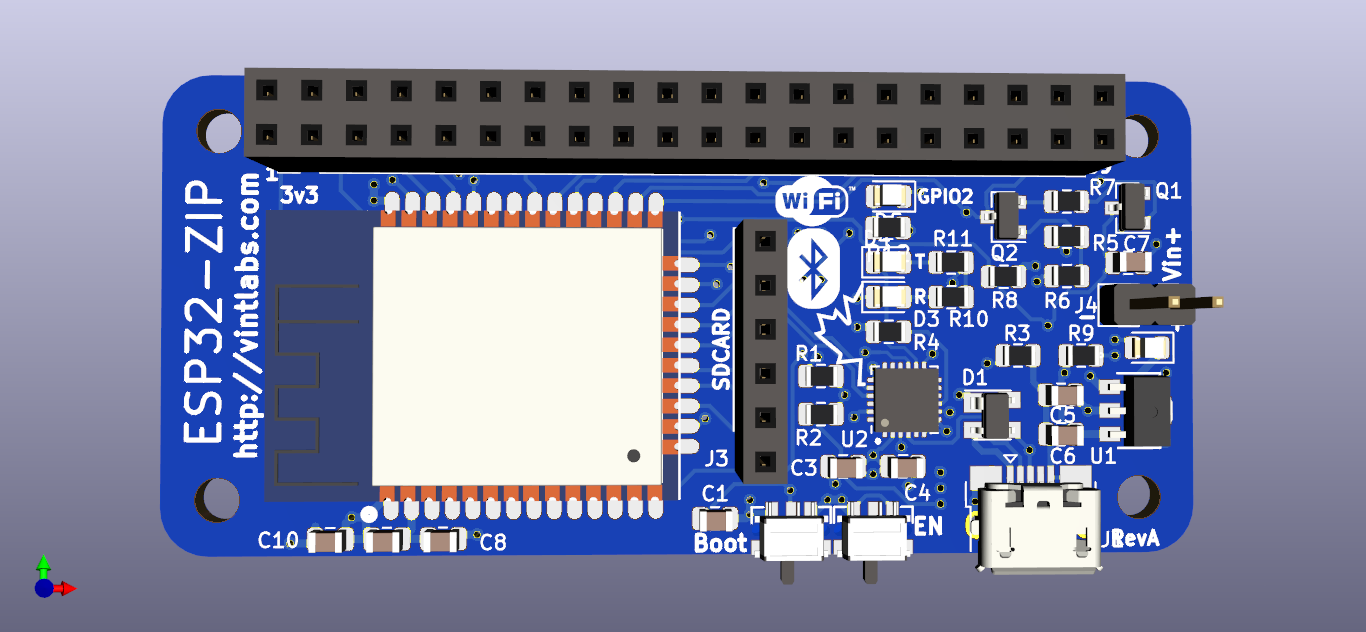

From the project
ESP32 Development Module compatible with Pi Zero cases (hardware)
Main components on the ESP32-Zip
ESP32-Zip bill of materials (BOM)
37 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP7215-33YG-13 | AP7215-33YG-13 | U1 |
| 1 | CP2102N-A01-GQFN24 | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm_CP2102-lessSolder | U2 |
| 1 | ESP32-WROOM-32 | ESP32-WROOM-32-Espressif-Symbol-Kicad-62379 | U3 |
| 2 | MMBT2222A | SOT-23 | Q1, Q2 |
| 1 | USB_B_Micro | USB_Micro-B_Amphenol_10118194-0001LF_Horizontal | J1 |
| 1 | Conn_02x20_Odd_Even | PinHeader_2x20_P2.54mm_Vertical | J2 |
| 1 | Conn_01x06_Male | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | Conn_01x02_Male | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 2 | SW_Push | SW_TACTILE_PO21301 | SW1, SW2 |
| 1 | SP0503BAHT | SOT-143 | D1 |
| 4 | LED | LED_0805_2012Metric | D2, D3, D4, D5 |
| 5 | 0.1u | C_0805_2012Metric | C1, C2, C4, C7, C10 |
| 5 | 10u | C_0805_2012Metric | C3, C5, C6, C8, C9 |
| 1 | 22.1k | R_0805_2012Metric | R1 |
| 1 | 47.5k | R_0805_2012Metric | R2 |
| 4 | 10k | R_0805_2012Metric | R3, R5, R6, R8 |
| 1 | 1k | R_0805_2012Metric | R4 |
| 4 | 2.2k | R_0805_2012Metric | R9, R10, R11, R12 |
ESP32-Zip design files
The KiCad project lives in the vintlabs/ESP32-Zip repository on GitHub; these links point at the commit this page was built from.
- LayoutESP32-Zip.kicad_pcb
ESP32-Zip: common questions
What microcontroller does the ESP32-Zip use?
The ESP32-Zip is built around the ESP32-WROOM-32, from the ESP32 family.
How big is the ESP32-Zip PCB?
The ESP32-Zip measures 65 × 30 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the ESP32-Zip?
37 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the ESP32-Zip design files?
From the vintlabs/ESP32-Zip repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ESP32-Zip design in my own project?
Yes, under the terms of its GPL-3.0 license, which vintlabs chose for the repository.
Can I test firmware for the ESP32-Zip without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
