Vara

About the Vara PCB

Vara is an open source PCB design by VirajSanghani, published on GitHub under the Custom license license. It is a board, with 21 components from 18 distinct parts.

Other key parts include the IP5306, MAX98357A, TPS22918, AP2112K-3.3 and RPi Zero 2 W. By type, the board carries 7 resistors, 4 ICs, 3 connectors, 1 module, 1 battery holder and 1 speaker.

It belongs with the test & measurement and sensors designs in this gallery.

From the project

A handheld modular perception instrument: slide on a cartridge and it gains a new sense. A printable enclosure + an optimized dovetail connector with a frozen 6-pin contract (so any I²C sensor becomes a cartridge) + a Raspberry Pi vision prototype. One honest, end-to-end engineering pass — validated-by-design, not hardware-tested.

Interactive showcase (explode the device, watch the connector evolve, see the point-and-identify loop): run web/ locally — see Run the showcase. Pronounced VAH-rah, from Sanskrit वर — "boon, the chosen thing."

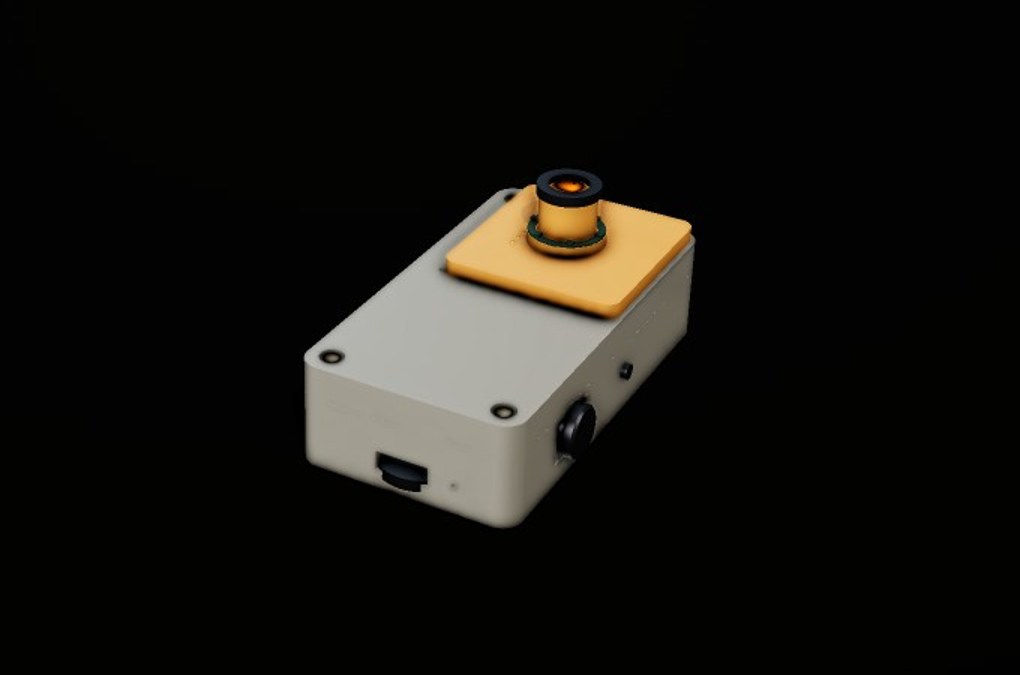

The whole assembly, every part flying from exploded to seated and back — on a loop. This is rendered straight from the CAD: a single animated glTF (enclosure, the optimized dovetail connector, M2.5 screws, and the representative internals) played in ``.

Main components on the Vara

IP5306MAX98357ATPS22918AP2112K-3.3RPi Zero 2 W

Vara bill of materials (BOM)

21 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
IP5306
U2
1
MAX98357A
U4
1
TPS22918
U5
1
AP2112K-3.3
U6
1
RPi Zero 2 W
A1
1
USB-C recept
J1
1
Pogo 6p (CORE)
J2
1
CSI FFC 15p
J3
1
Li-po 3.7V 1500mAh
BT1
1
RPi Camera v2
CAM1
1
ST7789 1.69in 240x280
DS1
1
Speaker 8R 1W
LS1
1
SPH0645LM4H
MK1
1
EC11
SW1
2
4.7k
R1, R2
2
10k
R3, R4
1
100k
R5
2
5.1k
R7, R8

Vara design files

The KiCad project lives in the VirajSanghani/vara repository on GitHub; these links point at the commit this page was built from.
