MCU-Data-Logger PCB layout, top view — open source AVR/Arduino board by VishwanathKambalyal

About the MCU-Data-Logger PCB

MCU-Data-Logger is an open source AVR/Arduino PCB design by VishwanathKambalyal, published on GitHub. It is a 2-layer board measuring 53 × 40.3 mm, with 25 components from 16 distinct parts.

Its main chip is the ATMEGA328P-AU, from the AVR/Arduino family. Other key parts include the 24LC1025 and DS1337S_. By type, the board carries 7 resistors, 5 capacitors, 4 ICs, 4 connectors, 2 crystals and 2 diodes.

It belongs with the sensors designs in this gallery.

From the project

Data logger

MCU Data Logger is a hardware-based data logging system designed to record and store data efficiently. The system is built using the ATmega328P-AU microcontroller, 24LC1025 EEPROM, and DS1337 RTC for precise timekeeping. The hardware is designed in KiCad 9, with 2-layer PCB.

- 🖥️ ATmega328P-AU (MCU) - Serves as the main processing unit. - Handles data acquisition, processing, and communication. - Supports multiple communication protocols (UART, SPI, I2C).

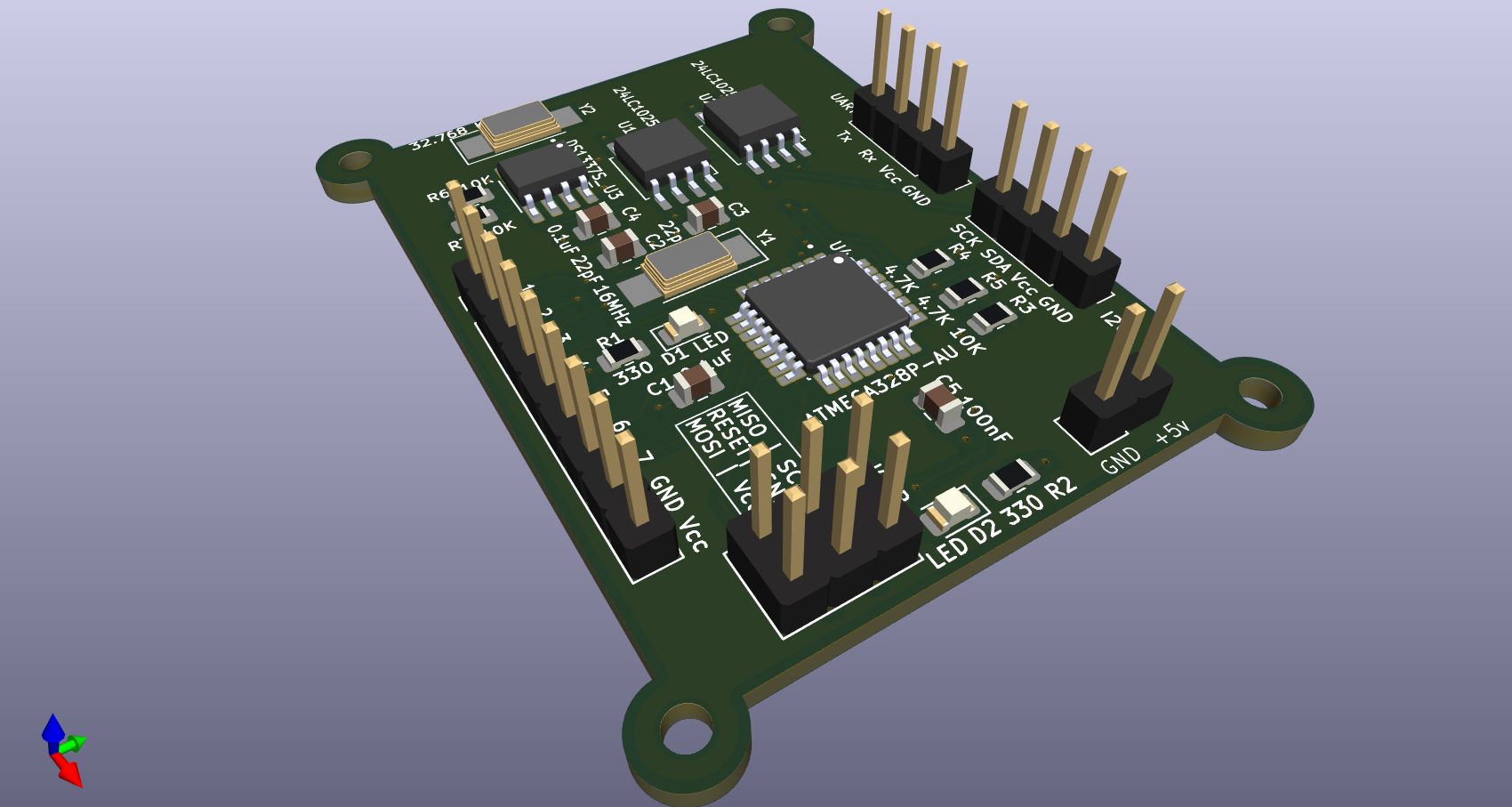

MCU-Data-Logger, from the project README
From the project README

Main components on the MCU-Data-Logger

24LC1025DS1337S_ATMEGA328P-AU

MCU-Data-Logger bill of materials (BOM)

25 components, 16 distinct parts.

QtyPartRefs
2
24LC1025
U1, U2
1
DS1337S_
U3
1
ATMEGA328P-AU
U4
1
16MHz
Y1
1
32.768 KHz
Y2
2
Conn_01x04_Pin
J1, J2
1
Conn_01x09_Pin
J3
1
Conn_02x03_Counter_Clockwise
J4
1
Battery_Cell
BT1
2
LED
D1, D2
2
0.1uF
C1, C4
2
22pF
C2, C3
1
100nF
C5
2
330
R1, R2
3
10K
R3, R6, R7
2
4.7K
R4, R5

MCU-Data-Logger design files

The KiCad project lives in the VishwanathKambalyal/MCU-Data-Logger repository on GitHub; these links point at the commit this page was built from.

MCU-Data-Logger: common questions

What microcontroller does the MCU-Data-Logger use?

The MCU-Data-Logger is built around the ATMEGA328P-AU, from the AVR/Arduino family.

How big is the MCU-Data-Logger PCB?

The MCU-Data-Logger measures 53 × 40.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MCU-Data-Logger?

25 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the MCU-Data-Logger design files?

From the VishwanathKambalyal/MCU-Data-Logger repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the MCU-Data-Logger design in my own project?

The repository has no license, so all rights stay with VishwanathKambalyal. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MCU-Data-Logger without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
