About the AS5047P-Board
AS5047P-Board is an open source PCB design by Westly-Bouchard, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 28.8 × 27.8 mm, with 10 components from 7 distinct parts.
Other key parts include the AS5047P-ATSM. By type, the board carries 4 connectors, 3 resistors, 2 capacitors and 1 IC.
It belongs with the robotics & motion and dev boards & breakouts designs in this gallery.
From the project

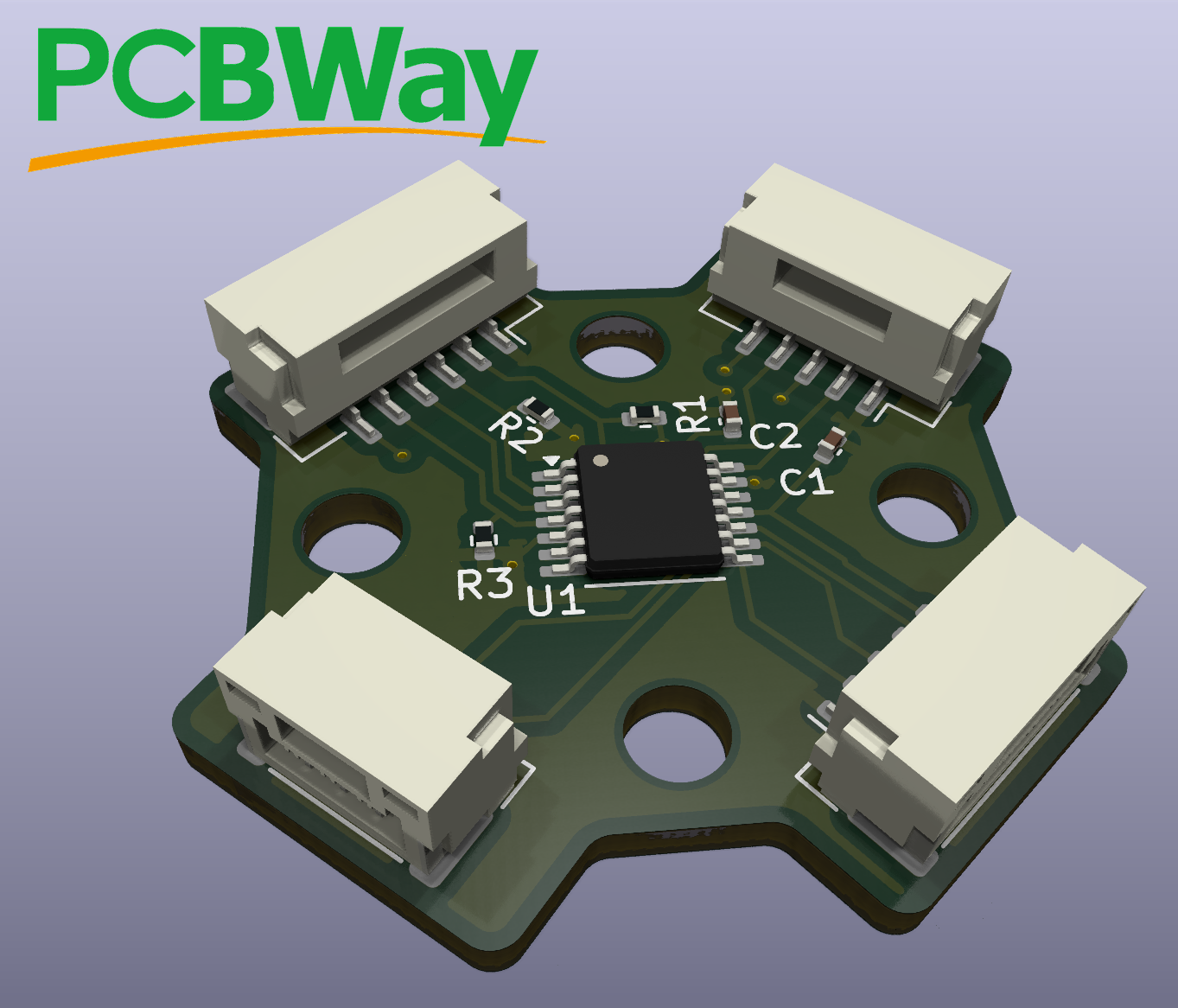

KiCad Project for an AS5047P Breakout Board
Big thanks to PCBWay for sponsoring this project! Their support enables me (and hundreds of other designers) to make cool stuff. More info in Manufacturing This is a breakout pcb for the commonly used AS5047P magnetic position sensor IC. Its SPI communication protocols are supported by many motor drivers such as VESCs and ODrives (newer ODrives have them built in, but boards based on the older open source designs like the ODesc don't). I designed this in KiCad, so if you want to work on it you'll need to install that.

Main components on the AS5047P-Board
AS5047P-Board bill of materials (BOM)
10 components, 7 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AS5047P-ATSM AS5047P AMS | TSSOP-14_4.4x5mm_P0.65mm | U1 |
| 1 | Conn_01x06_MountingPin | JST_GH_SM06B-GHS-TB_1x06-1MP_P1.25mm_Horizontal | J1 |
| 2 | Conn_01x05_MountingPin | JST_GH_SM05B-GHS-TB_1x05-1MP_P1.25mm_Horizontal | J2, J3 |
| 1 | Conn_01x03_MountingPin | JST_GH_SM03B-GHS-TB_1x03-1MP_P1.25mm_Horizontal | J4 |
| 1 | 100NF 100nF | C_0402_1005Metric | C1 |
| 1 | 1UF 1uF | C_0402_1005Metric | C2 |
| 3 | 10K 10k | R_0402_1005Metric | R1, R2, R3 |
AS5047P-Board design files
The KiCad project lives in the Westly-Bouchard/AS5047P-Board repository on GitHub; these links point at the commit this page was built from.
AS5047P-Board: common questions
How big is the AS5047P-Board?
The AS5047P-Board measures 28.8 × 27.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AS5047P-Board?
10 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AS5047P-Board design files?
From the Westly-Bouchard/AS5047P-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the AS5047P-Board design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which Westly-Bouchard chose for the repository.
