About the Hackpad PCB

Hackpad is an open source RP2040/RP2350 PCB design by wetzii, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 28 components from 5 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 12 switches, 12 diodes, 2 capacitors, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

This is my first real Try for HackClub Blueprint challange

Important to know The Rotary Encoder Switch just works to mute and unmute the Capacitor just there as backup! I would work without the Capacitors but for me its okay.

The Crash Pad runs on KMK Firmware (CircuitPython).

Layout: A standard Numpad layout (0–9, Backspace, Enter) OLED: Displays a custom logo and device name on a 128x32 SSD1306 display Encoder:** Programmed as a System Mute toggle (works in all applications)

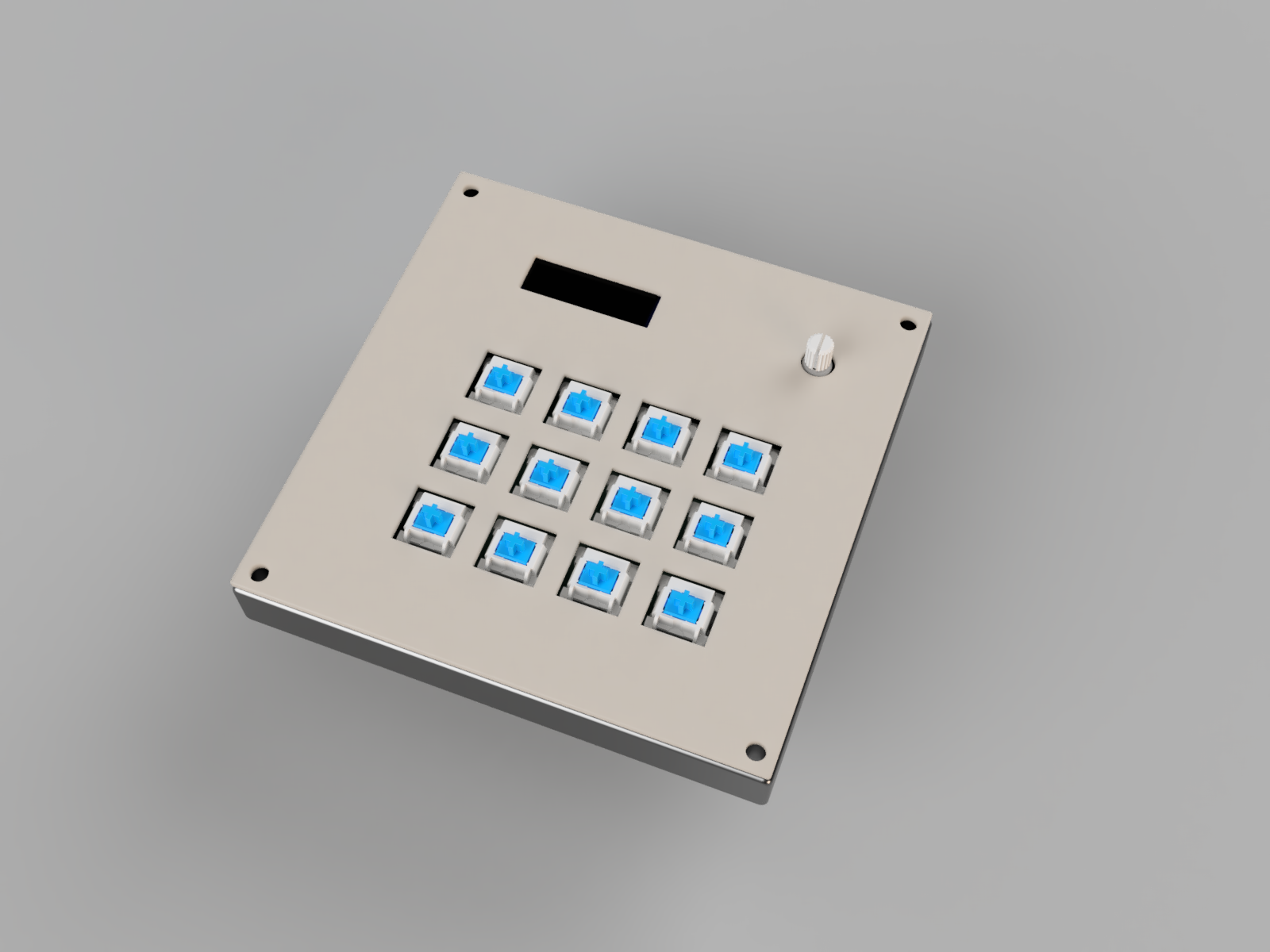

Hackpad, from the project README — From the project README

Main components on the Hackpad

XIAO-RP2040-DIP

Hackpad bill of materials (BOM)

28 components, 5 distinct parts.

Qty	Part	Footprint	Refs
1	XIAO-RP2040-DIP	XIAO-RP2040-DIP	U1
1	Conn_01x04_Pin	SSD1306-0.91-OLED-4pin-128x32	J2
12	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4
12	D	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +4
2	100n	C_0603_1608Metric	C1, C2
