About the C64-128-Power-Supply PCB

C64-128-Power-Supply is an open source PCB design by wiretap-retro, published on GitHub. It is a 2-layer board measuring 120 × 68 mm, with 11 components from 6 distinct parts.

By type, the board carries 7 connectors, 1 fuse and 1 resistor.

It belongs with the retro computing and power & battery designs in this gallery.

From the project

This power supply is a simple design for the C64 or C128.

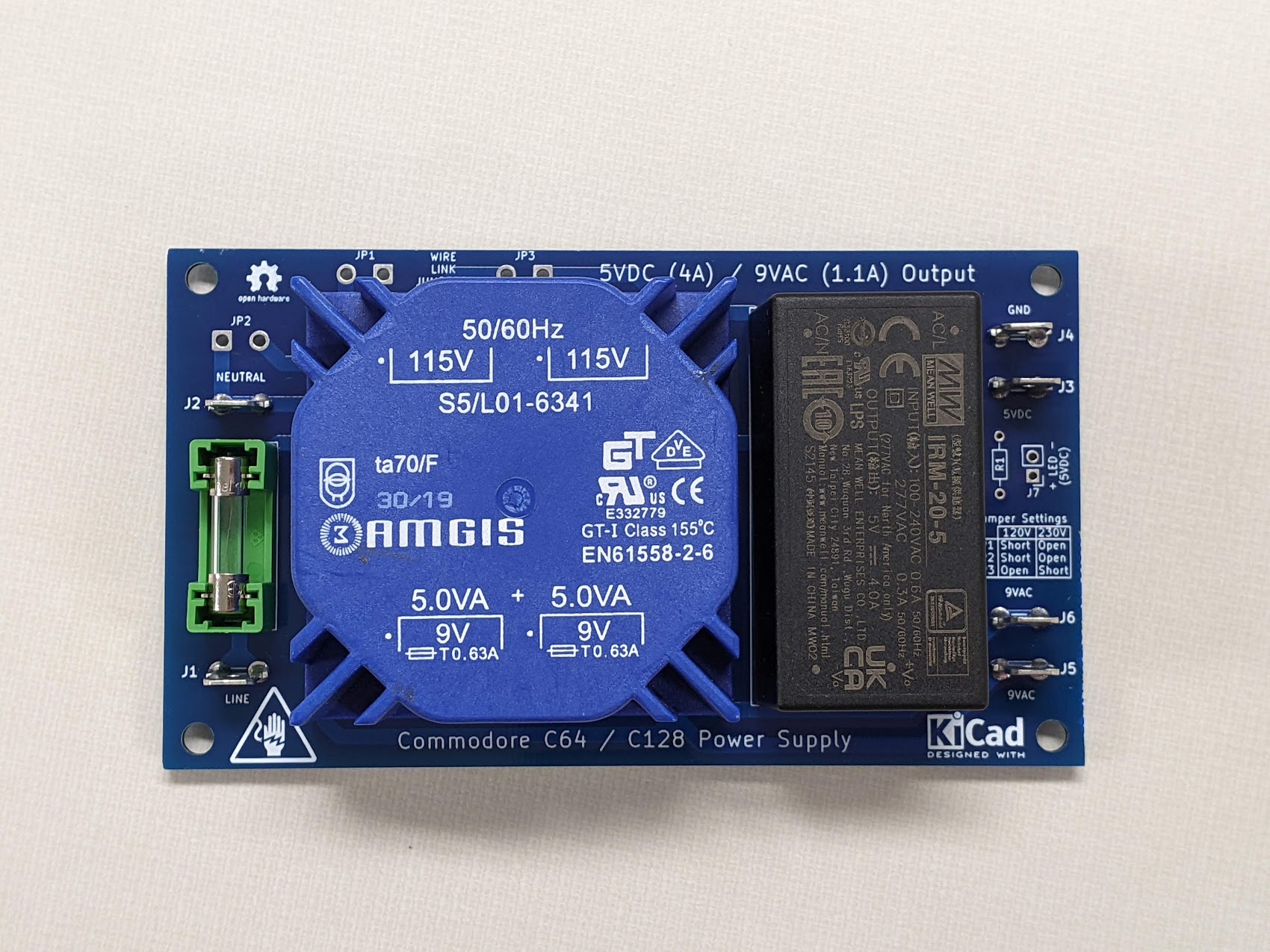

C64-128-Power-Supply, from the project README
From the project README

C64-128-Power-Supply bill of materials (BOM)

11 components, 6 distinct parts.

QtyPartRefs
6
1-726386-2
J1, J2, J3, J4, J5, J6
1
Power LED Header
J7
1
OPTF0075P
F1
1
IRM-20-5
PS1
1
Amgis_L01-6341
TR1
1
330
R1

C64-128-Power-Supply design files

The KiCad project lives in the wiretap-retro/C64-128-Power-Supply repository on GitHub; these links point at the commit this page was built from.

C64-128-Power-Supply: common questions

How big is the C64-128-Power-Supply PCB?

The C64-128-Power-Supply measures 120 × 68 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the C64-128-Power-Supply?

11 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the C64-128-Power-Supply design files?

From the wiretap-retro/C64-128-Power-Supply repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the C64-128-Power-Supply design in my own project?

The repository has no license, so all rights stay with wiretap-retro. Use it as a reference, and ask the author before reusing the design.
