EXT BATT-3-6V-Version

wiretap-retro·EXT_BATT-3-6V-Version·EXT_BATT_3V-6V/EXT_BATT_3V-6V.kicad_pcb

EXT BATT-3-6V-Version PCB layout, top view — open source board by wiretap-retro
Simulate this board

About the EXT BATT-3-6V-Version PCB

EXT BATT-3-6V-Version is an open source PCB design by wiretap-retro, published on GitHub. It is a 2-layer board measuring 19.7 × 21.9 mm, with 6 components from 4 distinct parts.

Other key parts include the MAX40200AUK+T. By type, the board carries 3 connectors and 1 IC.

It belongs with the retro computing and power & battery designs in this gallery.

From the project

A battery supply for retro motherboards with an EXT_BATT header.

For 3V, populate the rear battery only. For 6V, populate both batteries. The negative battery terminal faces the PCB. \ \ 3V may work for your board, as there are many people that report a single 3V lithium cell is able to power their RTC. Of course, it depends on the minimum input voltage rating for the RTC chip. For 6V, please check your motherboard manual first to see if it will accept a voltage at that level.

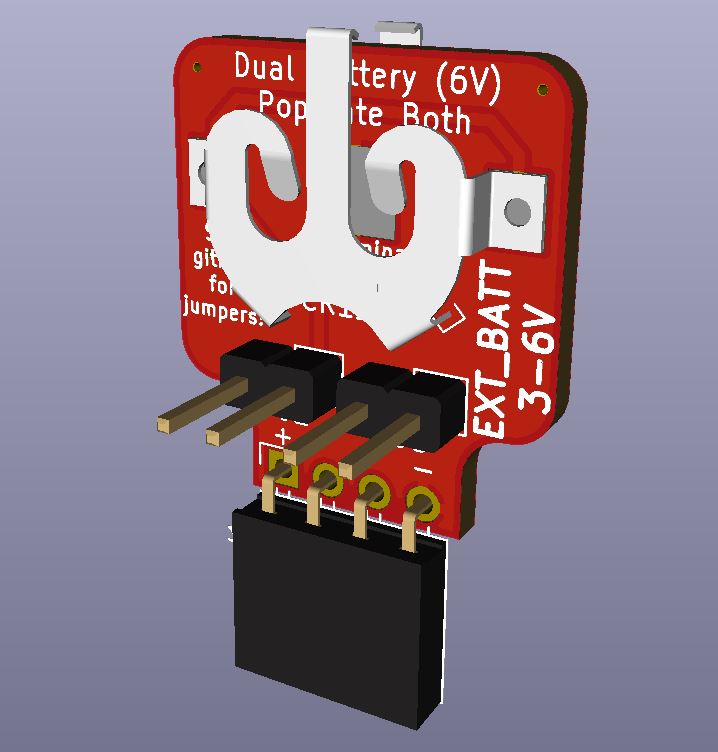

EXT BATT-3-6V-Version, from the project README
From the project README

Main components on the EXT BATT-3-6V-Version

MAX40200AUK+T

EXT BATT-3-6V-Version bill of materials (BOM)

6 components, 4 distinct parts.

QtyPartRefs
1
MAX40200AUK+T
IC1
1
Conn_01x04
J1
2
Conn_01x02
J2, J3
2
2894
H1, H2

EXT BATT-3-6V-Version design files

The KiCad project lives in the wiretap-retro/EXT_BATT-3-6V-Version repository on GitHub; these links point at the commit this page was built from.

EXT BATT-3-6V-Version: common questions

How big is the EXT BATT-3-6V-Version PCB?

The EXT BATT-3-6V-Version measures 19.7 × 21.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EXT BATT-3-6V-Version?

6 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the EXT BATT-3-6V-Version design files?

From the wiretap-retro/EXT_BATT-3-6V-Version repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the EXT BATT-3-6V-Version design in my own project?

The repository has no license, so all rights stay with wiretap-retro. Use it as a reference, and ask the author before reusing the design.
