About the Mt32-pi zero breakout

Mt32-pi zero breakout is an open source Raspberry Pi PCB design by wiretap-retro, published on GitHub under the Unlicense license. It is a 2-layer board measuring 65 × 30 mm, with 13 components from 13 distinct parts.

Its main chip is the 2222, from the Raspberry Pi family. Other key parts include the H11L1M. By type, the board carries 8 connectors, 2 resistors, 1 IC, 1 diode and 1 capacitor.

It belongs with the dev boards & breakouts and audio designs in this gallery.

From the project

A small breakout board for custom mt32-pi projects using a Raspberry Pi Zero 2 W.

\ Please read the original mt32-pi repository linked in the information section for compatible screens, encoders, etc..

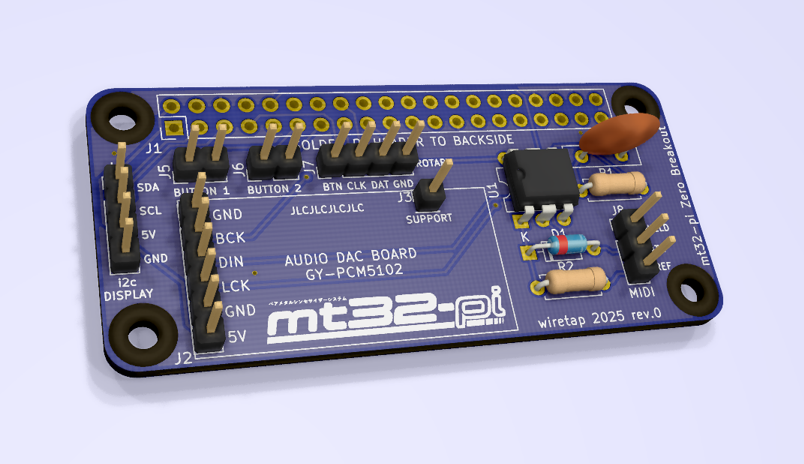

Mt32-pi zero breakout, from the project README
From the project README

Main components on the Mt32-pi zero breakout

H11L1M

Mt32-pi zero breakout bill of materials (BOM)

13 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
H11L1M
H11L1
Onsemi
U1
1
2222
Raspberry_Pi_0_2_3
Adafruit
J1
1
TSW-150-07-T-S
DAC Board
Samtec
J2
1
TSW-150-07-T-S
SUPPORT
Samtec
J3
1
TSW-150-07-T-S
DISPLAY
Samtec
J4
1
TSW-150-07-T-S
BUTTON 1
Samtec
J5
1
TSW-150-07-T-S
BUTTON 2
Samtec
J6
1
TSW-150-07-T-S
ROTARY
Samtec
J7
1
TSW-150-07-T-S
MIDI
Samtec
J8
1
1N4148
Onsemi
D1
1
AR211C104K4RTR2
100nF
Kyocera
C1
1
LR0204F1K0
1k
TE Connectivity
R1
1
LR0204F220R
220
TE Connectivity
R2

Mt32-pi zero breakout design files

The KiCad project lives in the wiretap-retro/mt32-pi-zero-breakout repository on GitHub; these links point at the commit this page was built from.

Mt32-pi zero breakout: common questions

What microcontroller does the Mt32-pi zero breakout use?

The Mt32-pi zero breakout is built around the 2222, from the Raspberry Pi family.

How big is the Mt32-pi zero breakout?

The Mt32-pi zero breakout measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mt32-pi zero breakout?

13 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mt32-pi zero breakout design files?

From the wiretap-retro/mt32-pi-zero-breakout repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Mt32-pi zero breakout design in my own project?

Yes, under the terms of its Unlicense license, which wiretap-retro chose for the repository.

Can I test firmware for the Mt32-pi zero breakout without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
