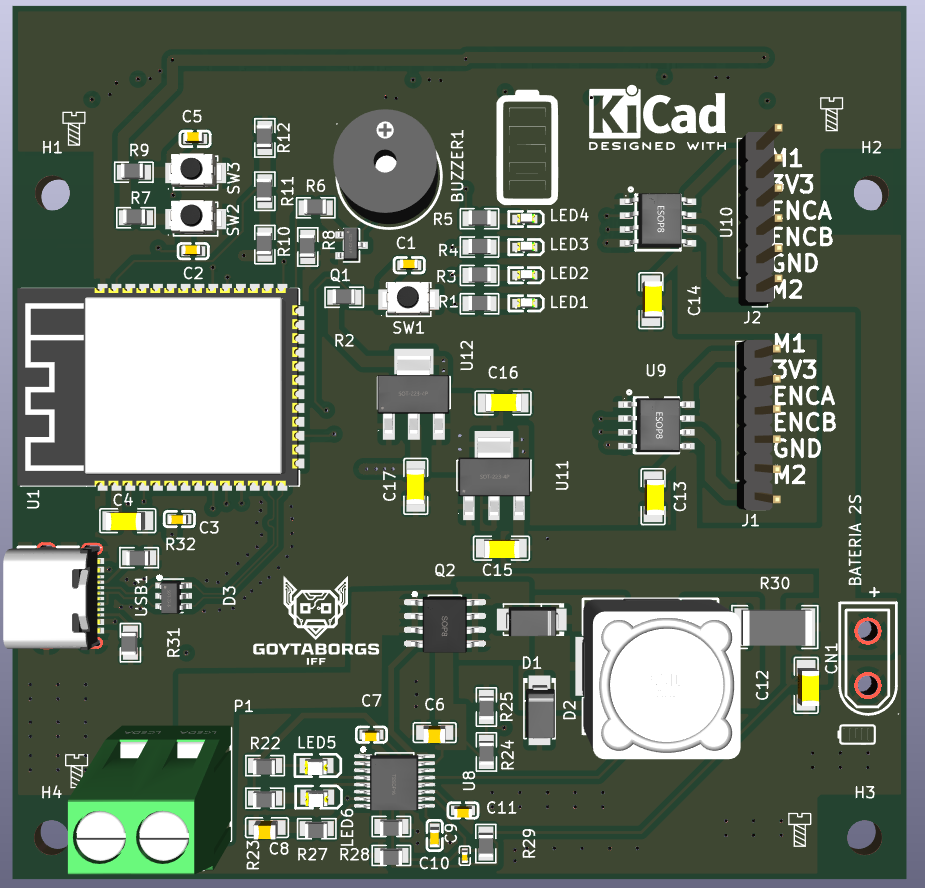

Mcp kicad vscode PCB layout, top view — open source ESP32 board by wvianna

About the Mcp kicad vscode PCB

Mcp kicad vscode is an open source ESP32 PCB design by wvianna, published on GitHub. It is a 4-layer board measuring 82.1 × 80.2 mm, with 82 components from 38 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16R8, from the ESP32 family. Other key parts include the ITR8307/S18/TR8(B), CN3722, AS4950, AMS1117-5.0 and AMS1117-3.3. By type, the board carries 32 resistors, 17 capacitors, 12 ICs, 6 LEDs, 4 connectors and 3 switches.

From the project

Workspace que combina um servidor MCP para automação de design de PCB com KiCad e o projeto de hardware (placa de circuito impresso) desenvolvido com ele.

Workspace que combina um servidor MCP para automação de design de PCB com KiCad e o projeto de hardware (placa de circuito impresso) desenvolvido com ele.

- KiCAD-MCP-Server/ — Servidor MCP (Node.js/TypeScript + Python) que permite que assistentes de IA controlem o KiCad: criação de esquemáticos, layout de PCB, roteamento, DRC, exportação e integração com catálogos de componentes. - project-kicad/ — Projeto KiCad real: placa seguidor de linhas de 4 camadas (seguidordelinhas4camada2-2026-1`), com 97 footprints e 83 nets.

Mcp kicad vscode, from the project README
From the project README

Main components on the Mcp kicad vscode

ESP32-S3-WROOM-1-N16R8ITR8307/S18/TR8(B)CN3722AS4950AMS1117-5.0AMS1117-3.3

Mcp kicad vscode bill of materials (BOM)

82 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N16R8
ESP32-S3-WROOM-1
ESPRESSIF(乐鑫)
U1
6
ITR8307/S18/TR8(B)
ITR8307/S18/TR8
EVERLIGHT(亿光)
U2, U3, U4, U5, U6, U7
1
CN3722
CONSONANCE(上海如韵)
U8
2
AS4950
ASSEMSTAR(聚迹)
U9, U10
1
AMS1117-5.0
AMS
U11
1
AMS1117-3.3
AMS
U12
1
2N7002
CJ(江苏长电/长晶)
Q1
1
AO4407A
AO4407A_C2841482
UMW(友台半导体)
Q2
1
XT30UPB-M
AMASS(艾迈斯)
CN1
2
motor g20 encoder
J1, J2
1
WJ128V-5.0-02P-14-00A
WJ128V-5.0-2P
KANGNEX(康奈克斯电气)
P1
1
HNB09A05
华能
BUZZER1
1
TS-1088-AR02016
BAT
XUNPU(讯普)
SW1
1
TS-1088-AR02016
RESET
XUNPU(讯普)
SW2
1
TS-1088-AR02016
FLASH
XUNPU(讯普)
SW3
1
TYPE-C 16PIN 2MD(073)
TYPE-C 16PIN 2MD
SHOU HAN(首韩)
USB1
4
KT-0603R
KENTO
LED1, LED2, LED3, LED4
1
KT-0805G
0805G
KENTO
LED5
1
KT-0805黄灯
17-21SUYC/TR8
KENTO
LED6
2
SS34
SS34_C8678
MDD(辰达半导体)
D1, D2
Show 18 more
QtyPartRefs
1
USBLC6-2SC6
ST(意法半导体)
D3
1
SMDRI127-330MT
SXN(顺翔诺)
L1
6
CC0603KRX7R9BB104
YAGEO(国巨)
C1, C2, C3, C5, C7, C11
5
CL31A106KOHNNNE
SAMSUNG(三星)
C4, C12, C15, C16, C17
1
CGA0805X5R106K500MT
HRE(芯声)
C6
1
CL21B224KBFNNNE
SAMSUNG(三星)
C8
1
0603B471K500NT
FH(风华)
C9
1
0402CG220J500NT
FH(风华)
C10
2
CL31B105KBHNNNE
SAMSUNG(三星)
C13, C14
10
0805W8F1001T5E
UNI-ROYAL(厚声)
R1, R3, R4, R5, R14, R15, R17, R18 +2
10
0805W8F1002T5E
UNI-ROYAL(厚声)
R2, R7, R8, R9, R10, R11, R12, R25 +2
2
0805W8F1200T5E
UNI-ROYAL(厚声)
R6, R27
3
0805W8F680JT5E
UNI-ROYAL(厚声)
R13, R16, R19
2
0805W8F2001T5E
UNI-ROYAL(厚声)
R22, R23
1
0805W8F1333T5E
UNI-ROYAL(厚声)
R24
1
0805W8F2492T5E
UNI-ROYAL(厚声)
R29
1
25121WF100LT4E
UNI-ROYAL(厚声)
R30
2
0805W8F5101T5E
UNI-ROYAL(厚声)
R31, R32
