Custom Keyboard

X-3maar·Custom_Keyboard·Kicad/My Keyboard.kicad_pcb

Custom Keyboard PCB layout, top view — open source RP2040/RP2350 board by X-3maar

About the Custom Keyboard PCB

Custom Keyboard is an open source RP2040/RP2350 PCB design by X-3maar, published on GitHub. It is a 2-layer board measuring 290.9 × 128.4 mm, with 185 components from 5 distinct parts.

Its main chip is the Raspberry_Pi_Pico, from the RP2040/RP2350 family. By type, the board carries 122 diodes, 61 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

here is the link for the spread sheet:https://stemschools-my.sharepoint.com/:x:/g/personal/ammar1024104stemoctobermoeedu_eg/EaMfzBkgDNVCjZ2IeJW4RrMBYXwM8-TcE8Ny9vNTQ7Igzg?e=zn2DD8&nav=MTVfezIzNEYzOTM1LUEyREEtNEE3NC05Mzc0LTE0MzFFQzI2RUU0MH0

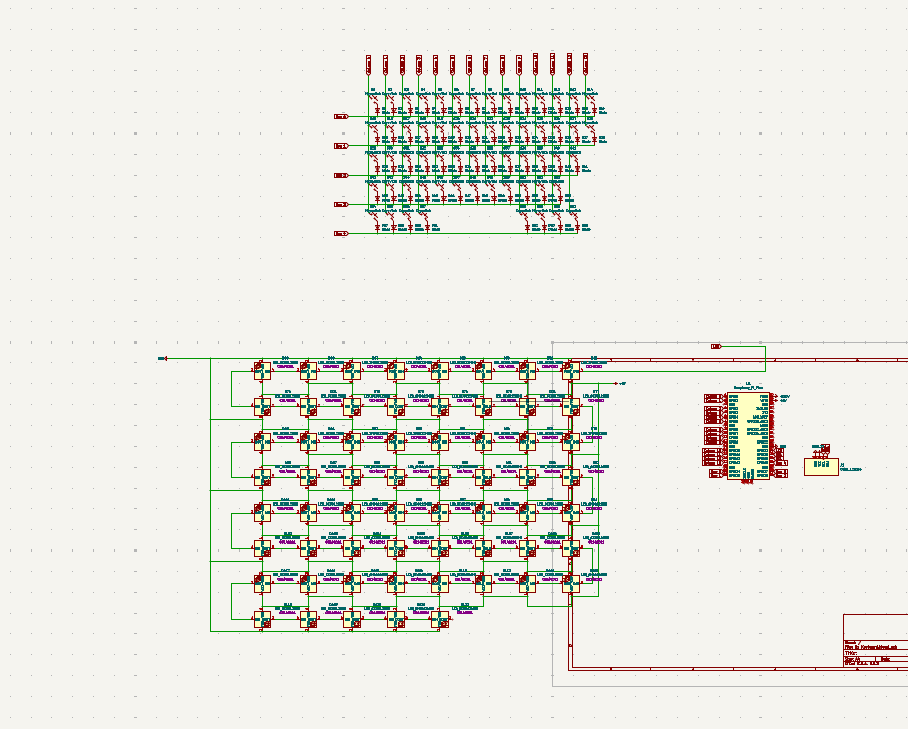

Custom Keyboard, from the project README
From the project README

Main components on the Custom Keyboard

Raspberry_Pi_Pico

Custom Keyboard bill of materials (BOM)

185 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Raspberry_Pi_Pico
U1
1
OLED_128X64
OLED_128x64
J1
61
Keyswitch
S1, S2, S3, S4, S5, S6, S7, S8 +53
61
Diode
D1, D2, D3, D4, D5, D6, D7, D8 +53
61
LED_SK6812MINI
D48, D52, D56, D60, D64, D67, D68, D69 +53

Custom Keyboard design files

The KiCad project lives in the X-3maar/Custom_Keyboard repository on GitHub; these links point at the commit this page was built from.

Custom Keyboard: common questions

What microcontroller does the Custom Keyboard use?

The Custom Keyboard is built around the Raspberry_Pi_Pico, from the RP2040/RP2350 family.

How big is the Custom Keyboard PCB?

The Custom Keyboard measures 290.9 × 128.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Custom Keyboard?

185 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Custom Keyboard design files?

From the X-3maar/Custom_Keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Custom Keyboard design in my own project?

The repository has no license, so all rights stay with X-3maar. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Custom Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
