MP1584EN-Kicad-Template-Module
About the MP1584EN-Kicad-Template-Module
MP1584EN-Kicad-Template-Module is an open source PCB design by xgiralt64, published on GitHub. It is a 2-layer board measuring 19.6 × 23.8 mm, with 18 components from 16 distinct parts.
Other key parts include the MP1584EN. By type, the board carries 6 capacitors, 6 resistors, 3 connectors, 1 IC, 1 diode and 1 inductor.
It belongs with the power & battery designs in this gallery.
From the project

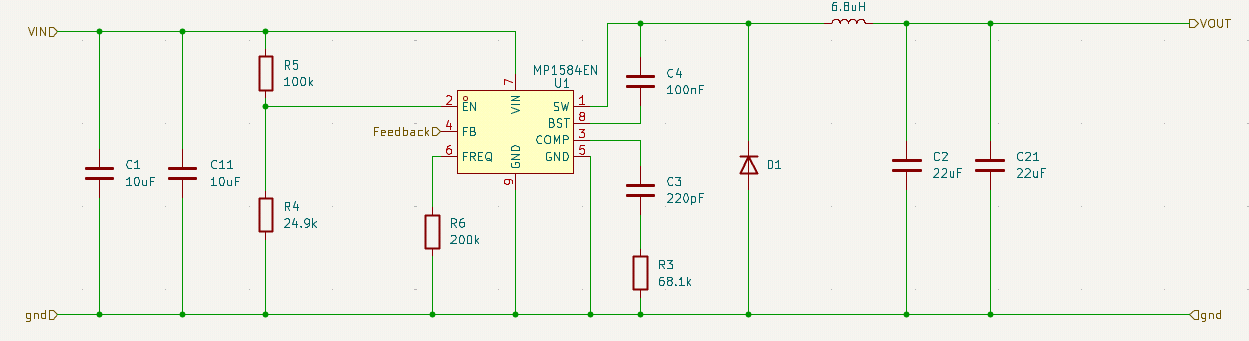

KiCad MP1584EN buck converter template with optimized layout and reusable hierarchical sheet integration.
This project provides a custom PCB layout for the MP1584EN switching regulator, inspired by the manufacturer's recommended reference design while incorporating layout improvements to enhance performance, manufacturability, and ease of integration.
The board can be fabricated and used as a standalone buck converter module, or the circuit can be embedded directly into your own PCB designs to efficiently step down input voltages for embedded and electronic applications.
Main components on the MP1584EN-Kicad-Template-Module
MP1584EN-Kicad-Template-Module bill of materials (BOM)
18 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MP1584EN | SOIC-8_L4.9-W3.9-P1.27-LS6.0-BL-EP3.3 | U1 |
| 1 | VIN | SolderWirePad_1x01_SMD_2x4mm | J1 |
| 1 | GND | SolderWirePad_1x01_SMD_2x4mm | J2 |
| 1 | VOUT | SolderWirePad_1x01_SMD_2x4mm | J3 |
| 1 | ~ | D_SMA_Handsoldering | D1 |
| 1 | 6.8uH | L_6.3x6.3_H3 | L1 |
| 2 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C11 |
| 2 | 22uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2, C21 |
| 1 | 220pF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3 |
| 1 | 100nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4 |
| 1 | 125.62k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 1 | 40.2k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2 |
| 1 | 68.1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R3 |
| 1 | 24.9k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R4 |
| 1 | 100k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5 |
| 1 | 200k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R6 |
MP1584EN-Kicad-Template-Module design files
The KiCad project lives in the xgiralt64/MP1584EN-Kicad-Template-Module repository on GitHub; these links point at the commit this page was built from.
MP1584EN-Kicad-Template-Module: common questions
How big is the MP1584EN-Kicad-Template-Module?
The MP1584EN-Kicad-Template-Module measures 19.6 × 23.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MP1584EN-Kicad-Template-Module?
18 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the MP1584EN-Kicad-Template-Module design files?
From the xgiralt64/MP1584EN-Kicad-Template-Module repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MP1584EN-Kicad-Template-Module design in my own project?
The repository has no license, so all rights stay with xgiralt64. Use it as a reference, and ask the author before reusing the design.
