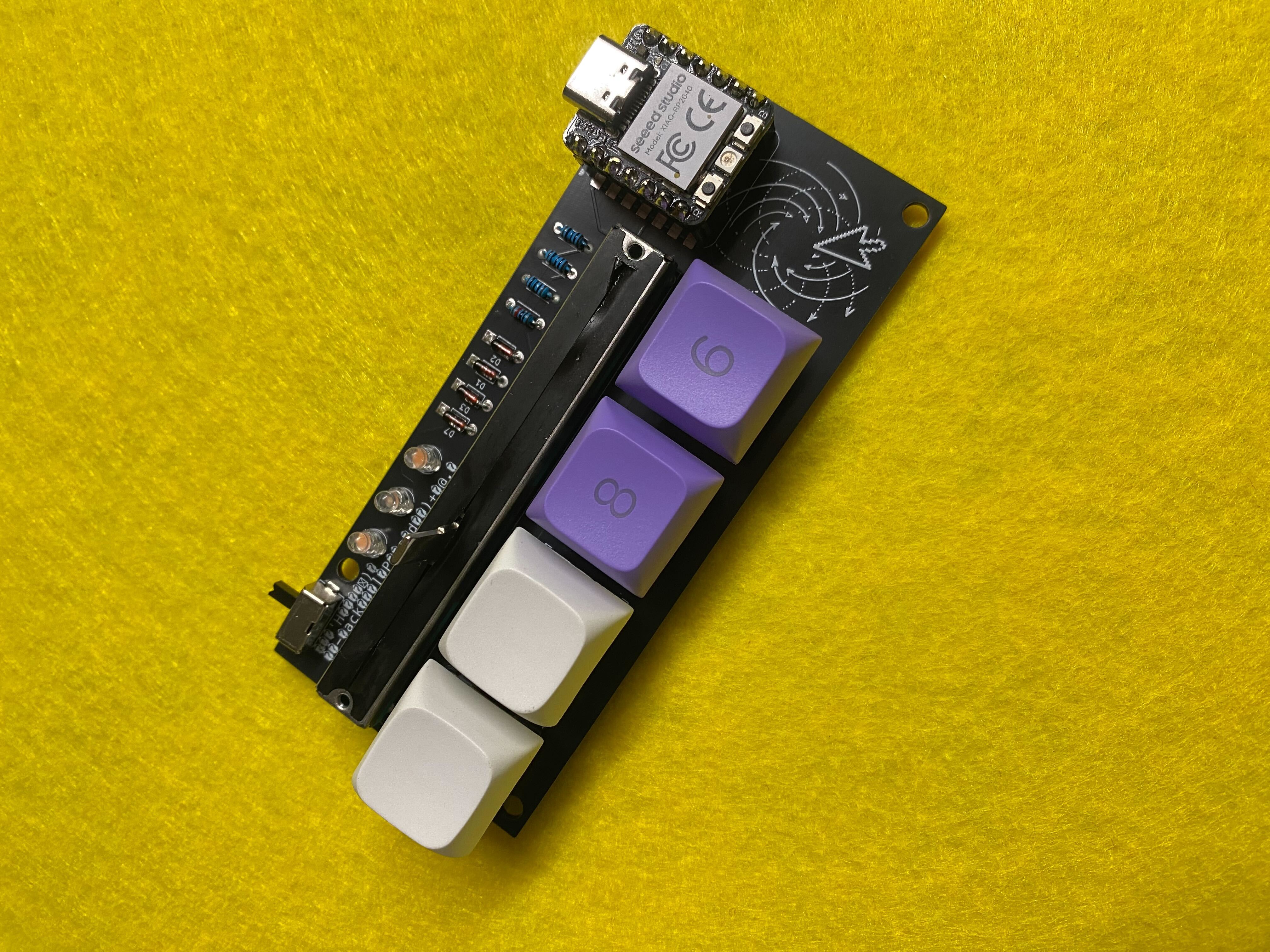

About the Ccc macropad PCB
Ccc macropad is an open source RP2040/RP2350 PCB design by ZenVega, published on GitHub under the MIT license. It is a 2-layer board measuring 114 × 44 mm, with 19 components from 9 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 7 diodes, 5 switches, 4 resistors, 1 IC and 1 capacitor.
It belongs with the keyboards designs in this gallery.
From the project
build documentation for ccc_macropad workshop
Congrats on getting your first own DisArray Desnarler. We are happy to have you here and help you organise your desktop.
For a quick overview of the project, have a look at the Hackaday project page.
The shared KiCad symbol and footprint libraries live at the repository root in ../symbolsandfootprints/.
The PCBs are sponsored by PCBWay. Thanks for the support. Check out their services for high-quality PCBs and fast service.

Main components on the Ccc macropad
Ccc macropad bill of materials (BOM)
19 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP RP2040-Zero | RP2040 Zero | U1 |
| 1 | Analogue_input_slider 10k | Potentiometer_slide_75mm_range_60mm_2_sets | RV1 |
| 4 | SW_Push | Kailh_socket_MX_PG1350_optional | SW1, SW2, SW4, SW5 |
| 1 | OS/Left_Right-hand_Switch | SPDT_3pin_2_pos_1P2T_tht_2.54mm_switch_sk12d07 | SW3 |
| 4 | 1N4148WT | D_DO-35_SOD27_P5.08mm_Horizontal | D1, D2, D3, D7 |
| 3 | LED | LED_D3.0mm | D6, D8, D9 |
| 1 | C | C_Disc_D5.0mm_W2.5mm_P5.00mm | C1 |
| 3 | 100R | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2, R3 |
| 1 | 10K 10k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R4 |
Ccc macropad design files
The KiCad project lives in the ZenVega/disarray_desnarler_docs repository on GitHub; these links point at the commit this page was built from.
Ccc macropad: common questions
What microcontroller does the Ccc macropad use?
The Ccc macropad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the Ccc macropad PCB?
The Ccc macropad measures 114 × 44 mm, has 2 copper layers and is 1.600198 mm thick.
How many components are on the Ccc macropad?
19 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ccc macropad design files?
From the ZenVega/disarray_desnarler_docs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Ccc macropad design in my own project?
Yes, under the terms of its MIT license, which ZenVega chose for the repository.
Can I test firmware for the Ccc macropad without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
