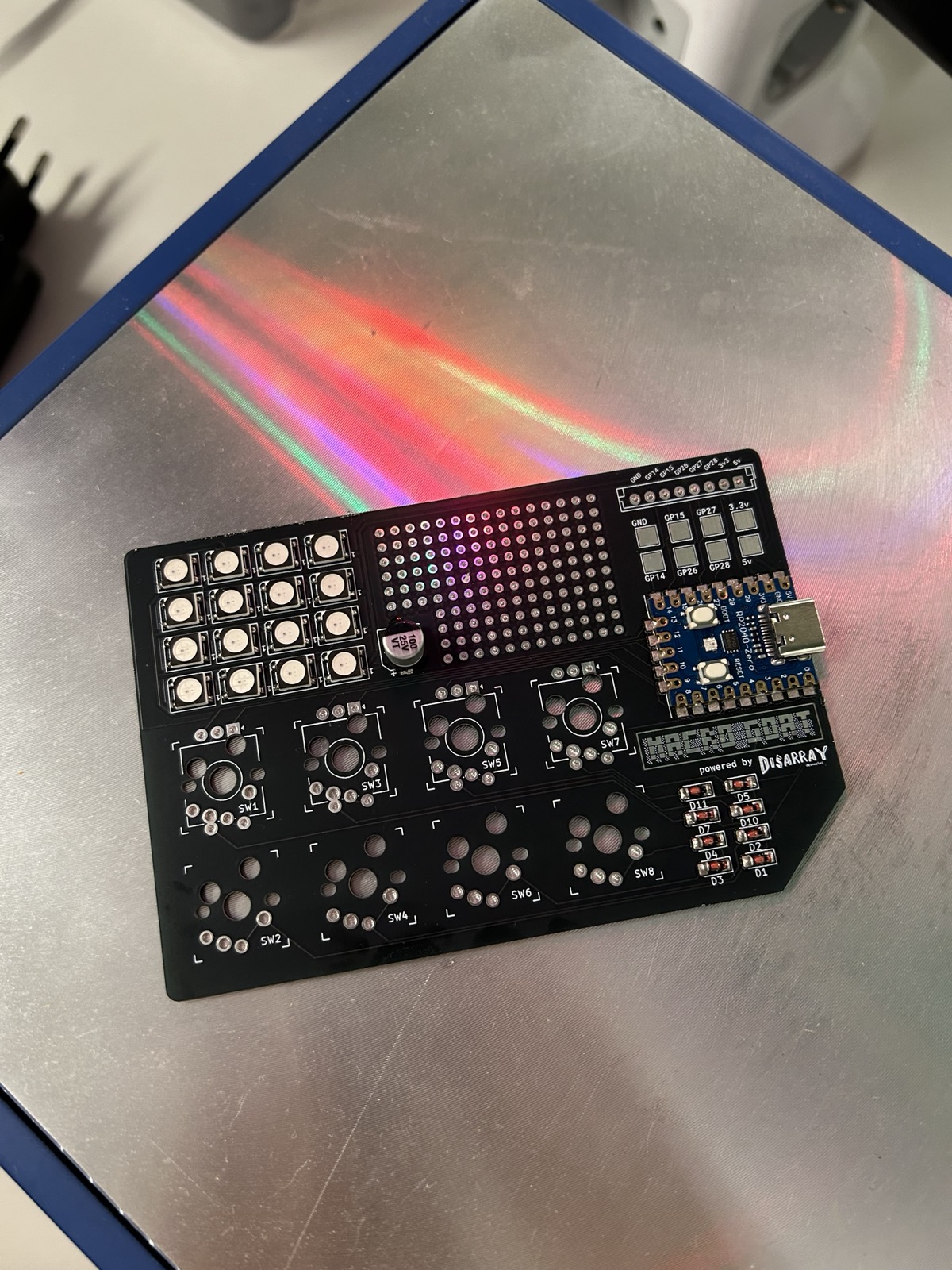

Chaos array
ZenVega·disarray_desnarler_docs·macro_GOAT/pcb/v1.0/chaos_array.kicad_pcb
About the Chaos array PCB
Chaos array is an open source RP2040/RP2350 PCB design by ZenVega, published on GitHub under the MIT license. It is a 2-layer board measuring 106.4 × 71 mm, with 35 components from 8 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 24 diodes, 8 switches, 1 IC, 1 connector and 1 capacitor.
It belongs with the keyboards designs in this gallery.
From the project
build documentation for ccc_macropad workshop
A custom macropad built around an RP2040-Zero with a 16-LED WS2812B array, hot-swap switches, and up to 4 optional EC11 rotary encoder.
The macroGOAT keymap lives in the shared QMK repository ZenVega/qmkdisarray_desnarler (alongside the DisArray Desnarler keymap). Flash it with QMK using the shared flashing guide.

Main components on the Chaos array
Chaos array bill of materials (BOM)
35 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP RP2040-Zero | RP2040 Zero | U1 |
| 1 | Conn_01x08_Socket | JST_EH_B8B-EH-A_1x08_P2.50mm_Vertical | J2 |
| 4 | RotaryEncoder_Switch | Kailh_socket_MX_PG1350_EC11_optional | SW1, SW3, SW5, SW7 |
| 4 | SW_Push | Kailh_socket_MX_PG1350_optional | SW2, SW4, SW6, SW8 |
| 4 | 1N4148WT | D_MiniMELF | D1, D2, D3, D7 |
| 4 | 1N4148WT | D_MiniMELF | D4, D5, D10, D11 |
| 16 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | D12, D13, D14, D15, D16, D17, D18, D19 +8 |
| 1 | C_Polarized | CP_Elec_6.3x5.8 | C1 |
Chaos array design files
The KiCad project lives in the ZenVega/disarray_desnarler_docs repository on GitHub; these links point at the commit this page was built from.
Chaos array: common questions
What microcontroller does the Chaos array use?
The Chaos array is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the Chaos array PCB?
The Chaos array measures 106.4 × 71 mm, has 2 copper layers and is 1.600198 mm thick.
How many components are on the Chaos array?
35 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Chaos array design files?
From the ZenVega/disarray_desnarler_docs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Chaos array design in my own project?
Yes, under the terms of its MIT license, which ZenVega chose for the repository.
Can I test firmware for the Chaos array without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
