Joker60 HUB
About the Joker60 HUB PCB
Joker60 HUB is an open source ESP32 PCB design by ZeshuLiu, published on GitHub under the MIT license. It is a 2-layer board measuring 99 × 25 mm, with 24 components from 17 distinct parts.
Its main chip is the ESP32-WROOM-32U, from the ESP32 family. By type, the board carries 8 resistors, 6 capacitors, 3 connectors, 3 diodes, 1 IC and 1 crystal.
It belongs with the keyboards designs in this gallery.
From the project

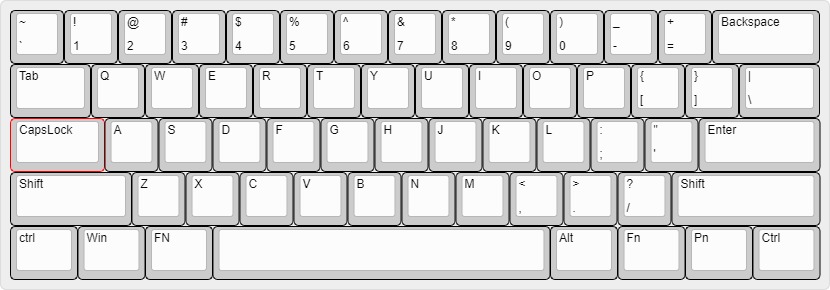

Keyboard using esp32
Main components on the Joker60 HUB
Joker60 HUB bill of materials (BOM)
24 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP32-WROOM-32U FE1.1s | SSOP-28_3.9x9.9mm_P0.635mm | U1 |
| 1 | 12Mhz | Crystal_SMD_HC49-SD_HandSoldering | Y1 |
| 1 | USB_A_Port2 | USB_A_Molex_67643_Horizontal | J1 |
| 1 | CONN_01X02_MOUNTINGPIN USB_B_Mini | USB_Micro-B_Wuerth_629105150521_CircularHoles | J2 |
| 1 | CONN_01X02_MOUNTINGPIN Port3 | JST_PH_S4B-PH-SM4-TB_1x04-1MP_P2.00mm_Horizontal | J3 |
| 2 | M3_BOLT | M3 BOLT | Bolt1, Bolt2 |
| 1 | LL4148 Port2 | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | LL4148 Port3 | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2 |
| 1 | LL4148 HUB | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D3 |
| 1 | 1UF 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 2 | 0.1UF 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C5 |
| 1 | 0.1UF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3 |
| 2 | 22UF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C6 |
| 1 | 10K 2.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 3 | 10K 100k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R4, R5 |
| 1 | 10K 47k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3 |
| 3 | 10K 330 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R6, R7, R8 |
Joker60 HUB design files
The KiCad project lives in the ZeshuLiu/esp32_keyboard repository on GitHub; these links point at the commit this page was built from.
Joker60 HUB: common questions
What microcontroller does the Joker60 HUB use?
The Joker60 HUB is built around the ESP32-WROOM-32U, from the ESP32 family.
How big is the Joker60 HUB PCB?
The Joker60 HUB measures 99 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Joker60 HUB?
24 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Joker60 HUB design files?
From the ZeshuLiu/esp32_keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Joker60 HUB design in my own project?
Yes, under the terms of its MIT license, which ZeshuLiu chose for the repository.
Can I test firmware for the Joker60 HUB without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
