Zynthiandac PCB layout, top view — open source board by zynthian
Simulate this board

About the Zynthiandac PCB

Zynthiandac is an open source PCB design by zynthian, published on GitHub. It is a 2-layer board measuring 64 × 55 mm, with 75 components from 23 distinct parts.

Other key parts include the PCM1863DBT, AT24CS01-STUM, ncp163 and PCM5242RHBR. By type, the board carries 32 capacitors, 27 resistors, 6 ICs, 6 connectors, 2 crystals and 2 diodes.

It belongs with the audio designs in this gallery.

From the project

Zynthian hardware stuff: PCBs, schemes, parts specifications, pin assignment, ...

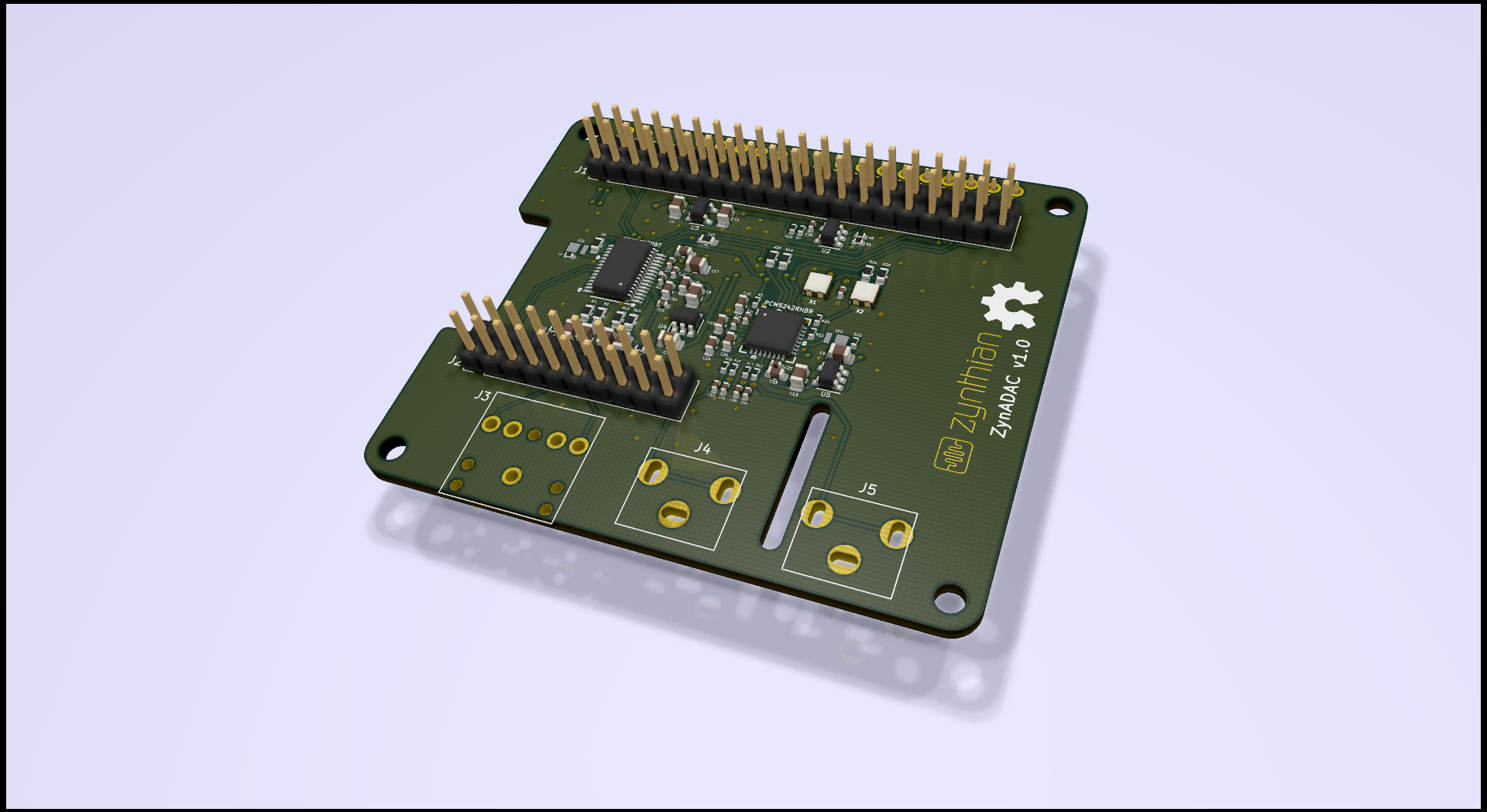

ZynADAC is an Input/Output Audio Interface for the RBPi.

+ Burr Brown (Texas Instruments) PCM5242 (DAC) + Burr Brown (Texas Instruments) PCM1863 (ADC) + 2 x ultra-low jitter oscillators (44.1 & 48 KHz) + 3 x dedicated ultra-low noise LDOs (analog DAC, analog ADC, digital)

This design is inspired in the Hifiberry soundcards.

Zynthiandac, from the project README
From the project README

Main components on the Zynthiandac

PCM1863DBTAT24CS01-STUMncp163PCM5242RHBR

Zynthiandac bill of materials (BOM)

75 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PCM1863DBT
U1
1
AT24CS01-STUM
U2
3
ncp163
U3, U4, U5
1
PCM5242RHBR
U6
1
22.5792Mhz
X1
1
24.576Mhz
X2
1
Conn_2x20
J1
1
Conn_02x10_Odd_Even
J2
1
AudioJack2_Ground_Switch
J3
2
AudioJack2_Ground
J4, J5
1
Conn_2x20
J6
2
LED
D1, D2
11
10uf16v
C1, C2, C3, C4, C5, C6, C7, C8 +3
4
2,2nf50v
C10, C11, C16, C20
7
100nF25V
C12, C15, C18, C21, C28, C30, C31
6
1uf16v
C14, C22, C25, C33, C34, C35
2
100nf16v
C19, C23
2
1uf 16v
C24, C26
5
10k
R1, R2, R20, R23, R24
10
100R
R3, R4, R9, R12, R14, R19, R21, R22 +2
Show 3 more
QtyPartRefs
4
3K8
R5, R6, R7, R28
4
100K
R8, R10, R11, R13
4
470R
R15, R16, R17, R18

Zynthiandac design files

The KiCad project lives in the zynthian/zynthian-hw repository on GitHub; these links point at the commit this page was built from.

Zynthiandac: common questions

How big is the Zynthiandac PCB?

The Zynthiandac measures 64 × 55 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Zynthiandac?

75 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Zynthiandac design files?

From the zynthian/zynthian-hw repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Zynthiandac design in my own project?

The repository has no license, so all rights stay with zynthian. Use it as a reference, and ask the author before reusing the design.
