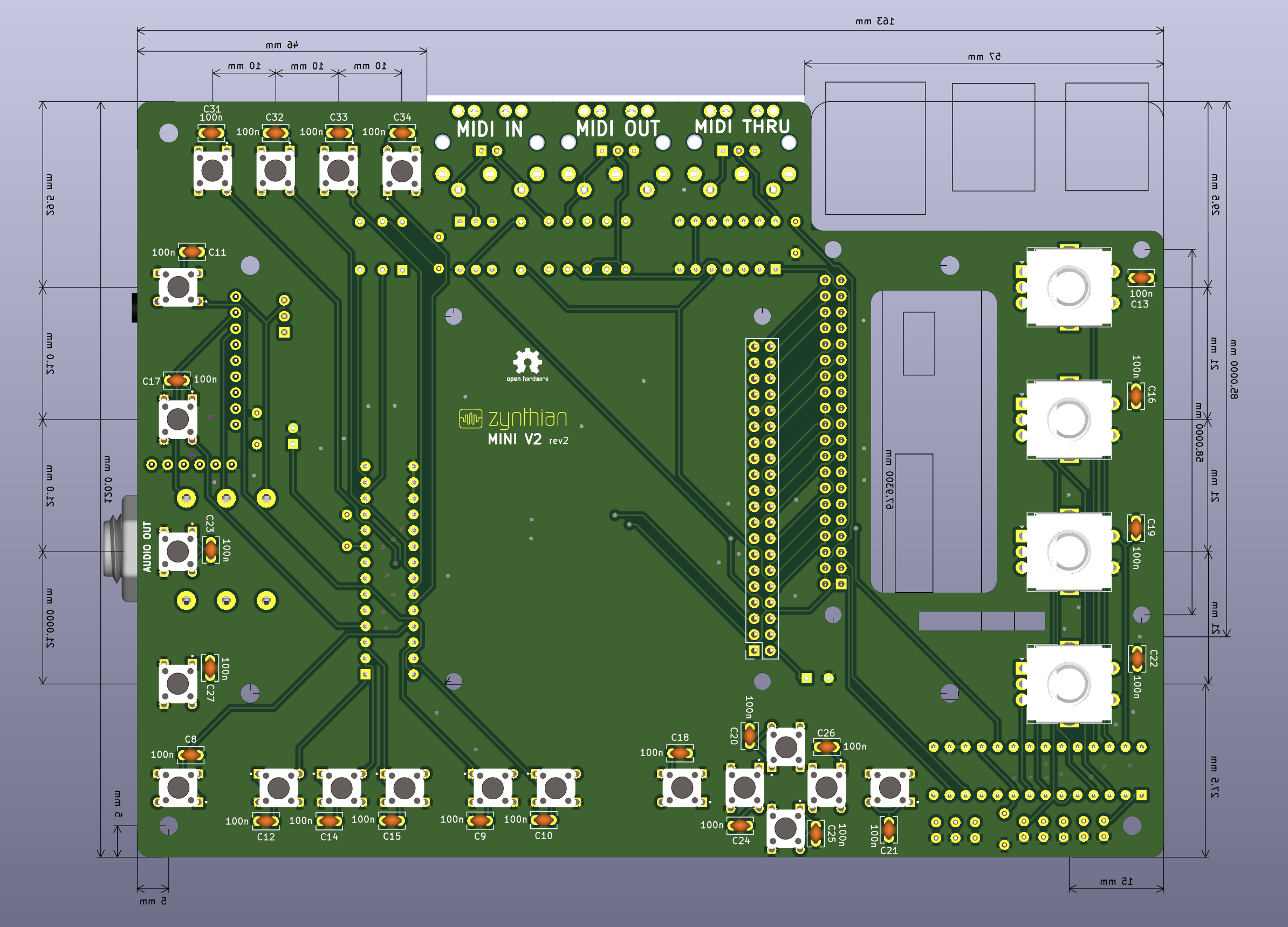

About the Zynthian mini PCB
Zynthian mini is an open source Raspberry Pi PCB design by zynthian, published on GitHub. It is a 2-layer board measuring 163 × 120 mm, with 87 components from 23 distinct parts.
Its main chip is the RPI HAT Connector, from the Raspberry Pi family. Other key parts include the 74HCT14, H11L1M and GY-PCM5102. By type, the board carries 39 capacitors, 20 switches, 8 resistors, 2 ICs, 1 module and 1 connector.
From the project
Zynthian hardware stuff: PCBs, schemes, parts specifications, pin assignment, ...
This repo include design details for building PCB for Zynthian MINI V2.
Zynthian PCB is designed usign KiCad software.
This repository also include PCB that is used as a facia.
For more information about howe to build zynthian mini V2 go to zynhtian wiki.

Main components on the Zynthian mini
Zynthian mini bill of materials (BOM)
87 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74HCT14 | DIP-14_W7.62mm | U1 |
| 1 | H11L1M | DIP-6_W7.62mm | U2 |
| 1 | GY-PCM5102 | GY-PCM5102 | A1 |
| 1 | NEUTRIK | Jack_6.35mm_Neutrik_NMJ6HFD2_Horizontal | J1 |
| 4 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC12E-Switch_Vertical_H20mm | Enc1, Enc2, Enc3, Enc4 |
| 1 | RPI HAT Connector | raspberry pi 4 | HAT1 |
| 2 | MCP23017_SP | DIP-28_W7.62mm | MCP23017_1, MCP23017_2 |
| 1 | MIDI In Jack | MultiDIN5 | MIDI-IN-J1 |
| 1 | Conn_01x03_Pin | PinHeader_1x02_P2.54mm_Vertical | MIDI-IN-J2 |
| 1 | MIDI Out Jack | MultiDIN5 | MIDI-OUT-J1 |
| 3 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | MIDI-OUT-J2, MIDI-THRU-J2, stereo_conn_01 |
| 1 | MIDI Thru Jack | MultiDIN5 | MIDI-THRU-J1 |
| 1 | RPI Connector | raspberry pi 4 HAT | RPi1 |
| 20 | SW_Push | push-button-13mm | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +12 |
| 1 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1 |
| 1 | 470u 10V | CP_Radial_D8.0mm_P3.50mm | C1 |
| 5 | 100n | C_Rect_L7.0mm_W2.0mm_P5.00mm | C2, C3, C5, C6, C7 |
| 1 | 100u | CP_Radial_D6.3mm_P2.50mm | C4 |
| 24 | 100n | C_Rect_L4.0mm_W2.5mm_P2.50mm | C8, C9, C10, C11, C12, C13, C14, C15 +16 |
| 8 | 10n | C_Rect_L4.0mm_W2.5mm_P2.50mm | C28, C29, C30, C35, C36, C37, C38, C39 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | 220R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R3, R4, R5, R6 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
| 2 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R7, R8 |
Zynthian mini design files
The KiCad project lives in the zynthian/zynthian-hw repository on GitHub; these links point at the commit this page was built from.
Zynthian mini: common questions
What microcontroller does the Zynthian mini use?
The Zynthian mini is built around the RPI HAT Connector, from the Raspberry Pi family.
How big is the Zynthian mini PCB?
The Zynthian mini measures 163 × 120 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Zynthian mini?
87 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Zynthian mini design files?
From the zynthian/zynthian-hw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Zynthian mini design in my own project?
The repository has no license, so all rights stay with zynthian. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Zynthian mini without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
