About the Stront PCB

Stront is an open source RP2040/RP2350 PCB design by zzeneg, published on GitHub under the MIT license. It is a 2-layer board measuring 321 × 92.3 mm, with 170 components from 15 distinct parts.

Its main chip is the rp2040-zero, from the RP2040/RP2350 family. By type, the board carries 42 diodes, 40 switches, 40 LEDs, 8 connectors, 6 jumpers and 4 resistors.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

Split keyboards with 38 or 40 keys, LCD display and Cirque trackpad

Family of modular split keyboards with 38 or 40 keys, LCD display and Cirque/Azoteq trackpad.

All versions: - Hotswap sockets - LCD display (1.69" 240x280 by default) - Cirque or Azoteq (with VIK adapter) trackpad - roller/rotary encoders - 3D printed cases - exposed SPI/I2C contacts, so any other device can be used instead, it's just a matter of changing the case

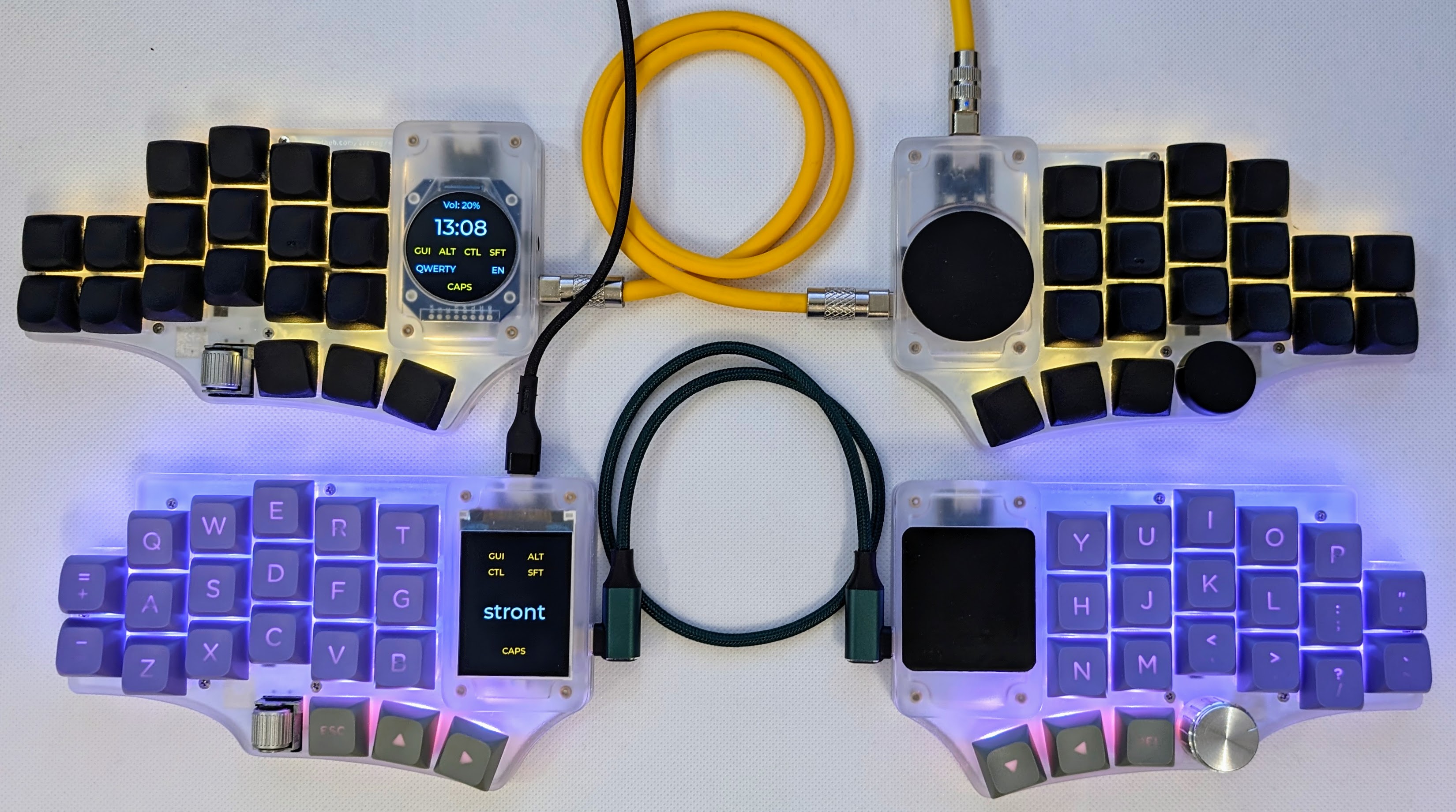

Stront, from the project README — From the project README

Main components on the Stront

rp2040-zero

Stront bill of materials (BOM)

170 components, 15 distinct parts.

Qty	Part	Footprint	Refs
2	rp2040-zero	MCU_rp2040-zero-tht	MCU1, MCU2
2	Display_generic-spi-8pin	Connector_Display-8pin-SPI-2.0mm	DISP1, DISP2
2	Connector_HRO-TYPE-C-31-M-12	Connector_HRO-TYPE-C-31-M-12-data	USB1, USB2
2	Connector_VIK-keyboard	Connector_VIK-vertical-keyboard	VIK_K1, VIK_K4
2	Connector_VIK-keyboard	vik-keyboard-connector-horizontal	VIK_K3, VIK_K6
4	MountingHole	Hole_Breakaway-Tabs	BR1, BR2, BR3, BR4
18	MountingHole	Hole_M2	H1, H2, H3, H4, H5, H6, H7, H8 +10
6	SolderJumper_2_Open	SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm	JP1, JP2, JP3, JP4, JP5, JP6
2	RotaryEncoder_Switch	RotaryEncoder_EC11	RE1, RE2
2	RollerEncoder_EVQWGD001	RotaryEncoder_EVQWGD001	ROLL1, ROLL2
40	Switch	Switch_MXKS-hotswap-south	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +32
2	Connector_VIK-keyboard	vik-keyboard-throughole	VIK_K2, VIK_K5
40	YS-SK6812MINI-E	LED_SK6812-MINI-E	LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +32
42	D	Diode_1N4148-SOD123	D1, D2, D3, D4, D5, D6, D7, D8 +34
4	R	R_1206_3216Metric	R1, R2, R3, R4

Stront design files

The KiCad project lives in the zzeneg/stront repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/mx40/pcb.kicad_pcb
Schematicpcb/mx40/pcb.kicad_sch

Stront: common questions

What microcontroller does the Stront use?

The Stront is built around the rp2040-zero, from the RP2040/RP2350 family.

How big is the Stront PCB?

The Stront measures 321 × 92.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stront?

170 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stront design files?

From the zzeneg/stront repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stront design in my own project?

Yes, under the terms of its MIT license, which zzeneg chose for the repository.
