About the RP2040-Embedded-Controller PCB

RP2040-Embedded-Controller is an open source RP2040/RP2350 PCB design by 0susi0, published on GitHub under the MIT license. It is a 2-layer board measuring 145 × 75 mm, with 47 components from 25 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVSIQ TR. By type, the board carries 18 capacitors, 8 resistors, 7 connectors, 2 ICs, 1 crystal and 1 diode.

It belongs with the displays & leds and power & battery designs in this gallery.

From the project

Controller V1 is a custom handheld game-controller board built around the Raspberry Pi RP2040 microcontroller. It was designed from scratch in KiCad, covering schematic capture, power design, and full PCB layout.

The board is powered over USB-C, regulates 5 V down to 3.3 V with a synchronous buck converter, and carries an 8-button input matrix (D-pad + A/B + Mode/Select) plus a dedicated reboot button, an external QSPI flash chip for program storage, an I²C header for a monochrome OLED, an SWD debug port, and a 4-channel ADC breakout — making it a solid base for handheld gaming and general…

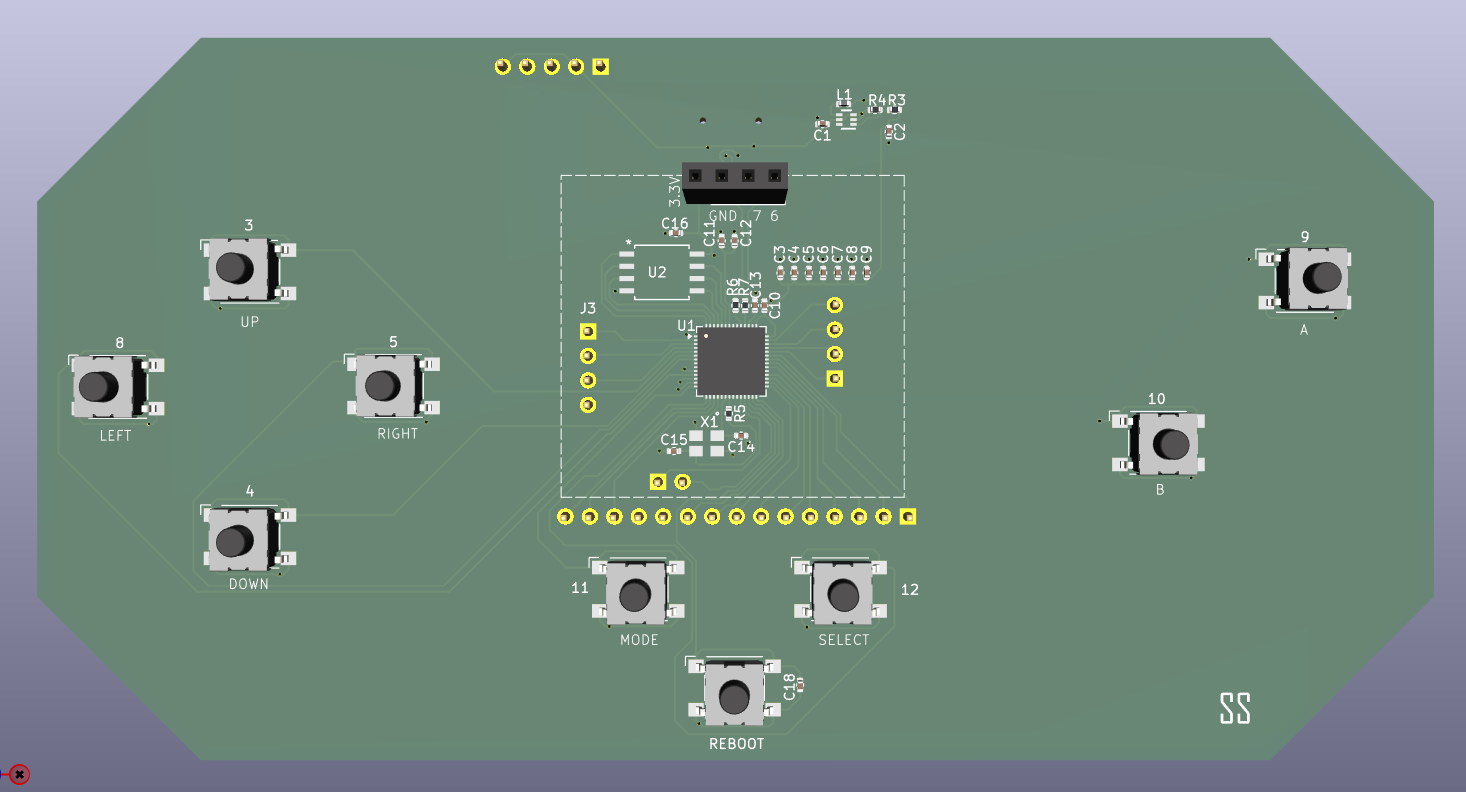

RP2040-Embedded-Controller, from the project README — From the project README

Main components on the RP2040-Embedded-Controller

RP2040 W25Q128JVSIQ TR

RP2040-Embedded-Controller bill of materials (BOM)

47 components, 25 distinct parts.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	W25Q128JVSIQ TR	SOIC_208MIL_WIN	U2
1	ABM8-272-T3	ABM8-272-T3_ABR	X1
1	Conn_01x04_Socket	PinSocket_1x04_P2.54mm_Vertical	J1
2	Conn_01x04_Pin	PinHeader_1x04_P2.54mm_Vertical	J2, J3
1	Conn_01x15_Pin	PinHeader_1x15_P2.54mm_Vertical	J4
1	Conn_01x02_Pin	PinHeader_1x02_P2.54mm_Vertical	J5
1	Conn_01x05_Pin	PinHeader_1x05_P2.54mm_Vertical	J6
1	USB_C_Receptacle_USB2.0_16P	USB_C_Receptacle_GCT_USB4110	J7
8	SW_Push	SW_SPST_Omron_B3FS-101xP	3, 4, 5, 8, 9, 10, 11, 12
1	TLV62569ADRLR	DRL0006A	buck1
1	LED	LED_0402_1005Metric	D1
1	1u	L_0402_1005Metric	L1
1	4.7u	C_0402_1005Metric	C1
1	22u	C_0402_1005Metric	C2
11	100n	C_0402_1005Metric	C3, C4, C5, C6, C7, C8, C9, C11 +3
2	1u	C_0402_1005Metric	C10, C13
2	15p	C_0402_1005Metric	C14, C15
1	10u	C_0402_1005Metric	C17
2	5.1k	R_0402_1005Metric	R1, R2

Show 5 more

Qty	Part	Footprint	Refs
1	453k	R_0402_1005Metric	R3
1	100k	R_0402_1005Metric	R4
1	1k	R_0402_1005Metric	R5
2	27	R_0402_1005Metric	R6, R7
1	2.2k	R_0402_1005Metric	R8

RP2040-Embedded-Controller design files

The KiCad project lives in the 0susi0/RP2040-Embedded-Controller repository on GitHub; these links point at the commit this page was built from.

LayoutHardware/KiCad/rp2040.kicad_pcb
SchematicHardware/KiCad/rp2040.kicad_sch

RP2040-Embedded-Controller: common questions

What microcontroller does the RP2040-Embedded-Controller use?

The RP2040-Embedded-Controller is built around the RP2040, from the RP2040/RP2350 family.

How big is the RP2040-Embedded-Controller PCB?

The RP2040-Embedded-Controller measures 145 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RP2040-Embedded-Controller?

47 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the RP2040-Embedded-Controller design files?

From the 0susi0/RP2040-Embedded-Controller repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RP2040-Embedded-Controller design in my own project?

Yes, under the terms of its MIT license, which 0susi0 chose for the repository.
