Quill stm32wl
About the Quill stm32wl PCB
Quill stm32wl is an open source PCB design by 4f48, published on GitHub. It is a 4-layer board measuring 50.8 × 22.9 mm, with 32 components from 21 distinct parts.
Other key parts include the RAK3172-T-8-SM-I, CH340E, AP2112K-3.3 and MCP73831-2-OT. By type, the board carries 10 resistors, 7 capacitors, 6 connectors, 4 ICs, 2 switches and 2 diodes.
It belongs with the rf & radio, iot & wireless and power & battery designs in this gallery.
From the project

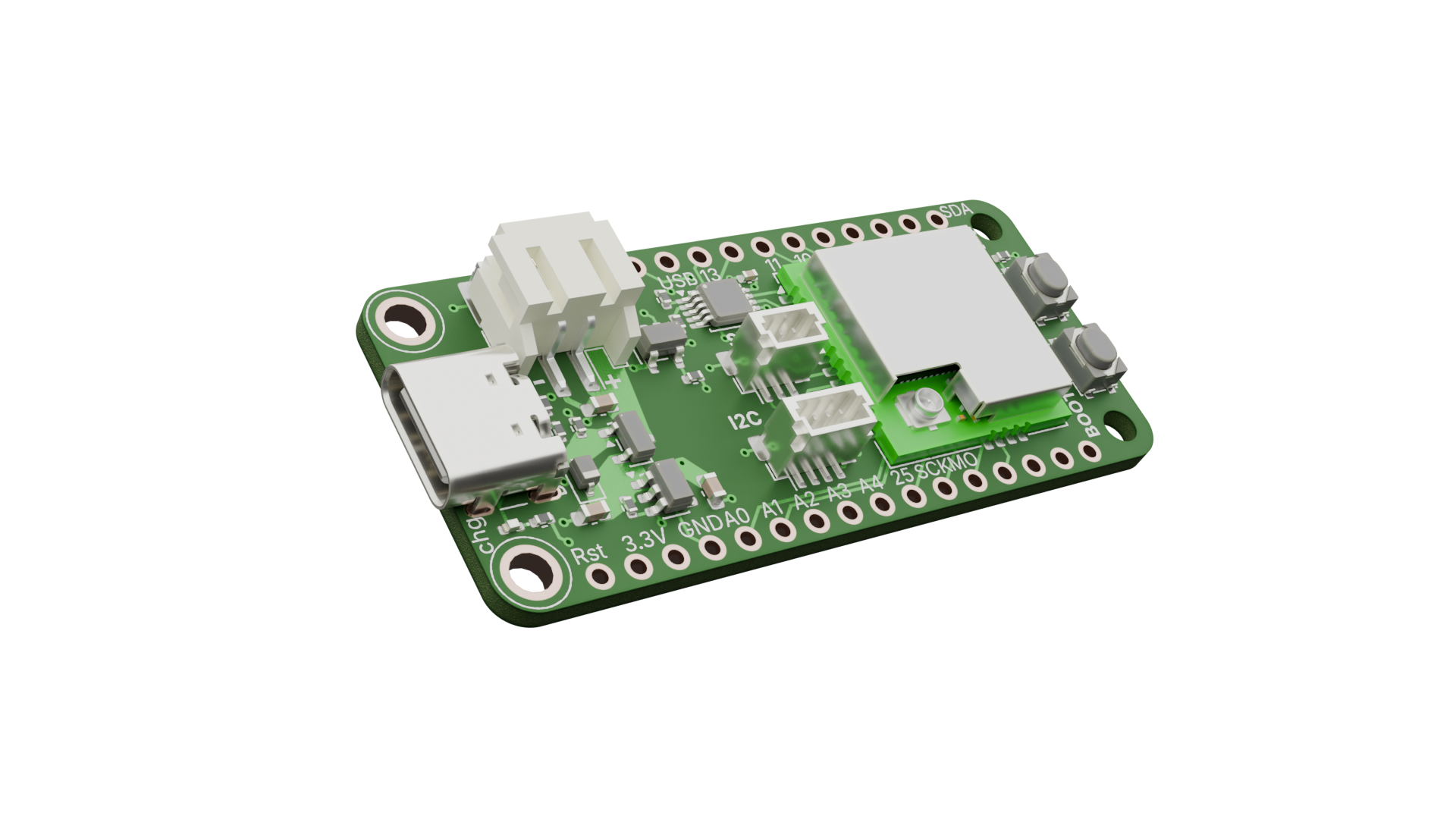

An Adafruit Feather-sized STM32 development board with integrated 868 MHz LoRa radio.
An Adafruit Feather-sized STM32 development board with integrated 868 MHz LoRa radio.
As I was scrolling through ST Microelectronic's website (as one does), I found the perfect match: the STM32WLE5 family of microcontrollers. They offer an improved LoRa solution - with up to +22 dBm output power - in a sleek package, with an integrated, low-power STM32 microcontroller. I knew I had to try making something with it.
Main components on the Quill stm32wl
Quill stm32wl bill of materials (BOM)
32 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RAK3172-T-8-SM-I | RAK3172 | U1 |
| 1 | CH340E | MSOP-10_3x3mm_P0.5mm | U2 |
| 1 | AP2112K-3.3 | SOT-23-5 | U3 |
| 1 | MCP73831-2-OT | SOT-23-5 | U4 |
| 1 | AO3401A | SOT-23 | Q1 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J1 |
| 1 | CONN_01X02_MOUNTINGPIN Conn_01x02_MountingPin | JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal | J2 |
| 1 | CONN_01X12 Conn_01x12 | PinHeader_1x12_P2.54mm_Vertical | J3 |
| 1 | CONN_01X16 Conn_01x16 | PinHeader_1x16_P2.54mm_Vertical | J4 |
| 1 | CONN_01X04_MOUNTINGPIN Conn_01x04_MountingPin | JST_SH_BM04B-SRSS-TB_1x04-1MP_P1.00mm_Vertical | J5 |
| 1 | CONN_01X03_MOUNTINGPIN Conn_01x03_MountingPin | JST_SH_BM03B-SRSS-TB_1x03-1MP_P1.00mm_Vertical | J6 |
| 1 | RESET | SW_SPST_PTS810 | SW1 |
| 1 | BOOT | SW_SPST_PTS810 | SW2 |
| 1 | 1N5819WS | D_SOD-323 | D1 |
| 1 | ORANGE | LED_0402_1005Metric | D2 |
| 2 | 100N 100n | C_0402_1005Metric | C1, C3 |
| 4 | 10U 10u | C_0603_1608Metric | C2, C5, C6, C7 |
| 1 | 4.7U 4.7u | C_0402_1005Metric | C4 |
| 5 | 10K 10k | R_0402_1005Metric | R1, R2, R5, R6, R8 |
| 2 | 22 | R_0402_1005Metric | R3, R4 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 5.1K 5.1k | R_0402_1005Metric | R7, R9, R10 |
Quill stm32wl design files
The KiCad project lives in the 4f48/quill-stm32wl repository on GitHub; these links point at the commit this page was built from.
Quill stm32wl: common questions
How big is the Quill stm32wl PCB?
The Quill stm32wl measures 50.8 × 22.9 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Quill stm32wl?
32 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Quill stm32wl design files?
From the 4f48/quill-stm32wl repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Quill stm32wl design in my own project?
The repository has no license, so all rights stay with 4f48. Use it as a reference, and ask the author before reusing the design.
