Frmw dcin
About the Frmw dcin PCB
Frmw dcin is an open source PCB design by a-little-wifi, published on GitHub. It is a 4-layer board measuring 41.5 × 24 mm, with 59 components from 28 distinct parts.
Other key parts include the SY6280, AP63200WU and AP2112K-3.3. By type, the board carries 23 resistors, 15 capacitors, 7 transistors, 4 diodes, 3 ICs and 2 test points.
It belongs with the power & battery designs in this gallery.
From the project

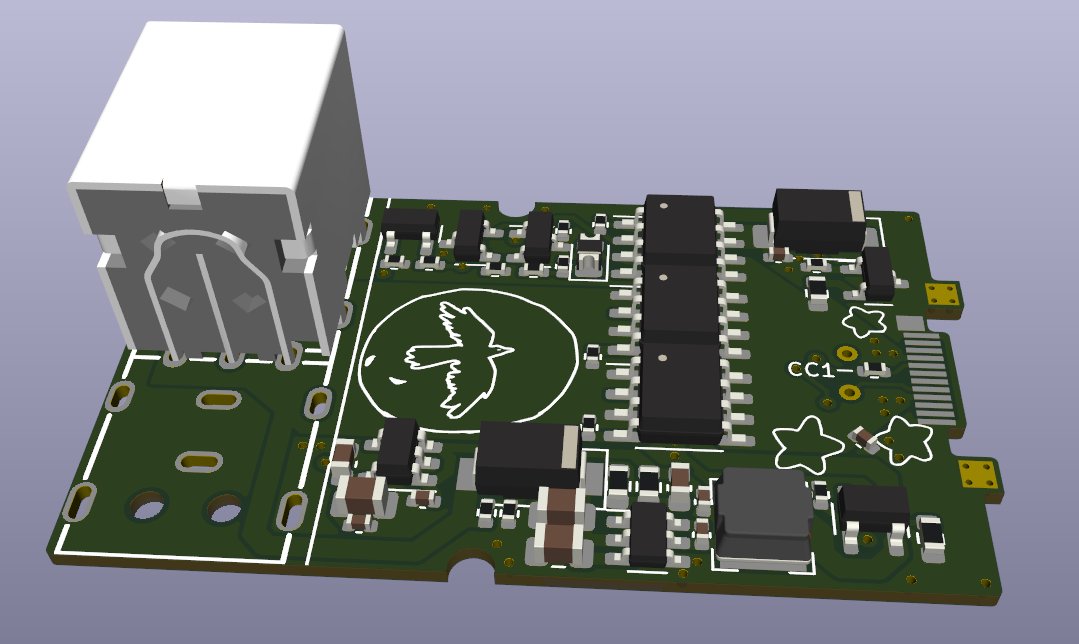

Barrel jack laptop power supply adapter module for framework laptops
This is a Framework laptop module designed to let you use Dell or HP laptop power supplies with a Framework laptop (or any other device that takes 20V USB-PD)
The schematic for this board was made by Arya, I tweaked it a bit and did the board layout. It requires an Altmode Friend, also made by Arya, to handle all the communication and control.
Main components on the Frmw dcin
Frmw dcin bill of materials (BOM)
59 components, 28 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SY6280 | SOT-23-5 | U1 |
| 1 | AP63200WU | TSOT-23-6 | U2 |
| 1 | AP2112K-3.3 | SOT-23-5 | U3 |
| 1 | AltmodeFriend | altmode_friend | M1 |
| 3 | SI4909 | SO-8_3.9x4.9mm_P1.27mm | Q1, Q5, Q7 |
| 4 | 2N7002 | SOT-23 | Q2, Q3, Q4, Q6 |
| 1 | SMART | USB_C_Plug_Molex_105444 | J2 |
| 2 | DC-042E XKB Connectivity(中国星坤) | DC-IN-TH_DC-042E | DC1, DC2 |
| 1 | SBU1 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP9 |
| 1 | SBU2 | TestPoint_THTPad_D1.0mm_Drill0.5mm | TP10 |
| 1 | Schottky 1A | D_SMA | D1 |
| 1 | 3V6 | D_0805_2012Metric | D2 |
| 1 | 1N5819 | D_SMA | D3 |
| 1 | 5V1 | D_0805_2012Metric | D4 |
| 1 | Ls | L_Bourns-SRN4018 | L1 |
| 2 | Cin | C_0805_2012Metric | C1, C2 |
| 2 | Cout | C_0805_2012Metric | C3, C4 |
| 1 | 100nF | C_0402_1005Metric | C5 |
| 1 | 100pF | C_0603_1608Metric | C6 |
| 5 | 1uF | C_0402_1005Metric | C7, C8, C9, C10, C11 |
Show 8 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 10nF | C_0402_1005Metric | C12, C13, C14, C15 |
| 1 | NC | R_0402_1005Metric | R1 |
| 3 | 20K | R_0402_1005Metric | R2, R19, R23 |
| 7 | 5K1 | R_0402_1005Metric | R3, R6, R9, R10, R13, R20, R21 |
| 9 | 1K8 | R_0402_1005Metric | R4, R7, R8, R11, R12, R14, R17, R18 +1 |
| 1 | 0R | R_0402_1005Metric | R5 |
| 1 | Rs2 | R_0603_1608Metric | R15 |
| 1 | Rs1 | R_0603_1608Metric | R16 |
Frmw dcin design files
The KiCad project lives in the a-little-wifi/frmw-dcin repository on GitHub; these links point at the commit this page was built from.
Frmw dcin: common questions
How big is the Frmw dcin PCB?
The Frmw dcin measures 41.5 × 24 mm, has 4 copper layers and is 0.8 mm thick.
How many components are on the Frmw dcin?
59 components, from 28 distinct parts. The full bill of materials is listed on this page.
Where can I download the Frmw dcin design files?
From the a-little-wifi/frmw-dcin repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Frmw dcin design in my own project?
The repository has no license, so all rights stay with a-little-wifi. Use it as a reference, and ask the author before reusing the design.
