Crumbs DRV8323
About the Crumbs DRV8323 PCB
Crumbs DRV8323 is an open source PCB design by ahsanu123, published on GitHub under the MIT license. It is a 2-layer board measuring 116.5 × 80.8 mm, with 33 components from 23 distinct parts.
Other key parts include the DRV8323SRTAT, LMR16010PDDAR and MR60PW-M.G.B. By type, the board carries 9 capacitors, 6 transistors, 6 resistors, 4 connectors, 3 ICs and 1 diode.
It belongs with the robotics & motion designs in this gallery.
From the project

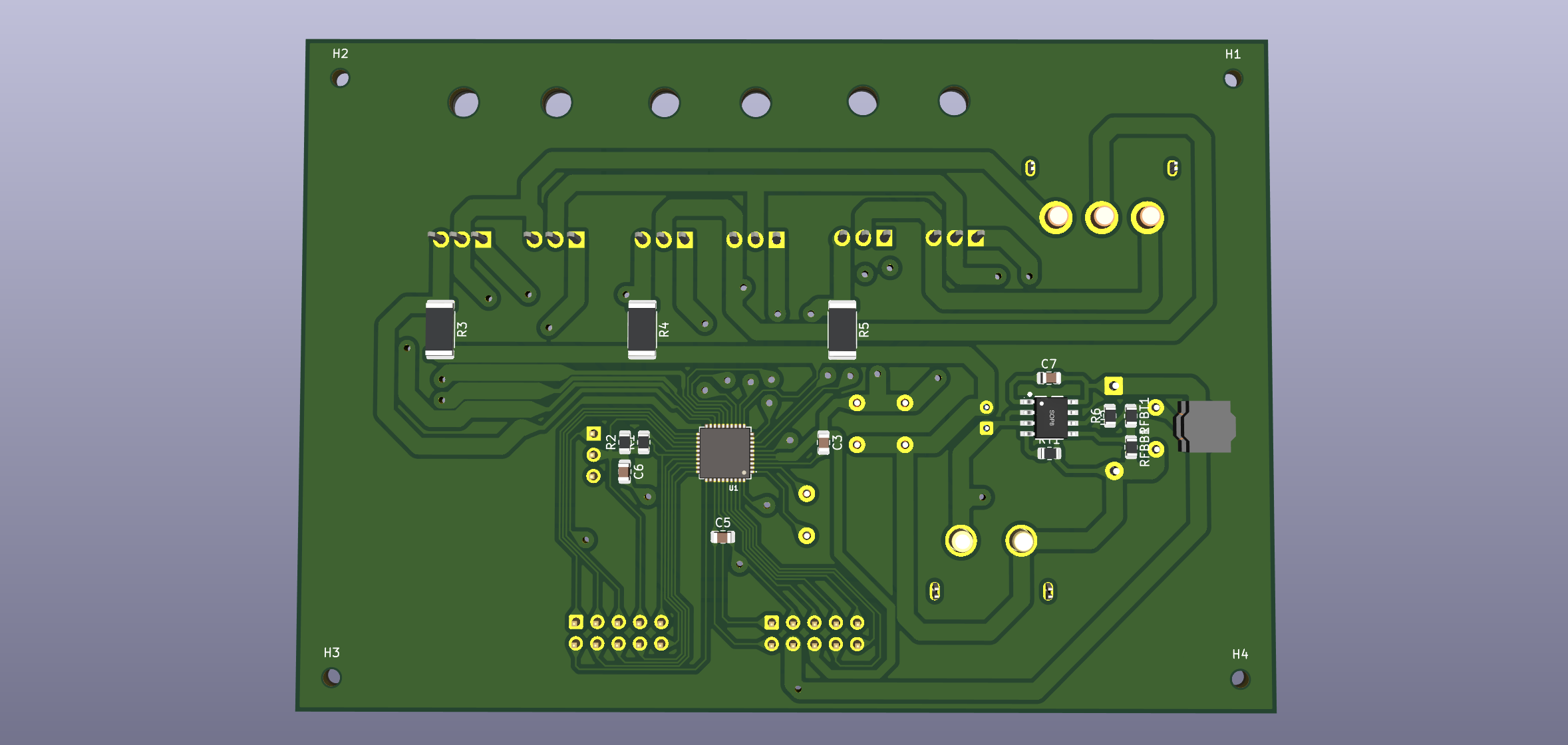

🍪 Crumbs - Collection of my DIY Electronic Module
Main components on the Crumbs DRV8323
Crumbs DRV8323 bill of materials (BOM)
33 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DRV8323SRTAT | QFN50P600X600X80-41N415X415 | U1 |
| 1 | LMR16010PDDAR TI(德州仪器) | SOPOWERPAD-8_L4.9-W3.9-P1.27-LS6.0-BL-EP | U2 |
| 1 | MR60PW-M.G.B AMASS(艾迈斯) | CONN-TH_MR60PW | U3 |
| 6 | IRFB3077PBF Infineon(英飞凌) | TO-220-3_Horizontal_TabDown | Q1, Q2, Q3, Q4, Q5, Q7 |
| 1 | XT60PW-M AMASS(艾迈斯) | CONN-TH_XT60PW-M | CN1 |
| 2 | Conn_02x05_Odd_Even | IDC-Header_2x05_P2.54mm_Vertical | J2, J5 |
| 1 | VCC_to_3.3V | PinHeader_1x03_P2.54mm_Vertical | J3 |
| 1 | 30K | R_0805_2012Metric | RFBB1 |
| 1 | 100K | R_0805_2012Metric | RFBT1 |
| 1 | 34K8 | R_0805_2012Metric | RT1 |
| 1 | 1N5819 | D_DO-41_SOD81_P10.16mm_Horizontal | D1 |
| 1 | 22uH / 2A | L_1812_4532Metric | L1 |
| 1 | 22uF | C_Disc_D7.5mm_W5.0mm_P5.00mm | C1 |
| 1 | 100nF | C_Disc_D7.5mm_W5.0mm_P5.00mm | C2 |
| 1 | 1uF/16V | C_0805_2012Metric | C3 |
| 1 | 47nF | C_Disc_D7.5mm_W5.0mm_P5.00mm | C4 |
| 1 | 1uF/6.3V | C_0805_2012Metric | C5 |
| 1 | 100nF | C_0805_2012Metric | C6 |
| 1 | 100nF / 16V | C_0805_2012Metric | C7 |
| 1 | 47uF / 16V | C_Disc_D7.5mm_W5.0mm_P5.00mm | C8 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4.7uF / VM | CP_Radial_D8.0mm_P2.50mm | C9 |
| 3 | 4K7 | R_0805_2012Metric | R1, R2, R6 |
| 3 | 2m / 2W | R_2512_6332Metric | R3, R4, R5 |
Crumbs DRV8323 design files
The KiCad project lives in the ahsanu123/crumbs repository on GitHub; these links point at the commit this page was built from.
Crumbs DRV8323: common questions
How big is the Crumbs DRV8323 PCB?
The Crumbs DRV8323 measures 116.5 × 80.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Crumbs DRV8323?
33 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the Crumbs DRV8323 design files?
From the ahsanu123/crumbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Crumbs DRV8323 design in my own project?
Yes, under the terms of its MIT license, which ahsanu123 chose for the repository.
