RotaryEncoderWith595

ahsanu123·crumbs·crumbs595165/rotaryEncoderWith595.kicad_pcb

RotaryEncoderWith595 PCB layout, top view — open source board by ahsanu123

About the RotaryEncoderWith595 PCB

RotaryEncoderWith595 is an open source PCB design by ahsanu123, published on GitHub under the MIT license. It is a 2-layer board measuring 130 × 95 mm, with 68 components from 11 distinct parts.

Other key parts include the 74HC165 and 74HC595. By type, the board carries 27 resistors, 16 diodes, 12 capacitors, 8 switches, 4 ICs and 1 connector.

From the project

🍪 Crumbs - Collection of my DIY Electronic Module

Simple Breakout Board to Learn Shift Register with Tactile Switch And Rotary Encoder

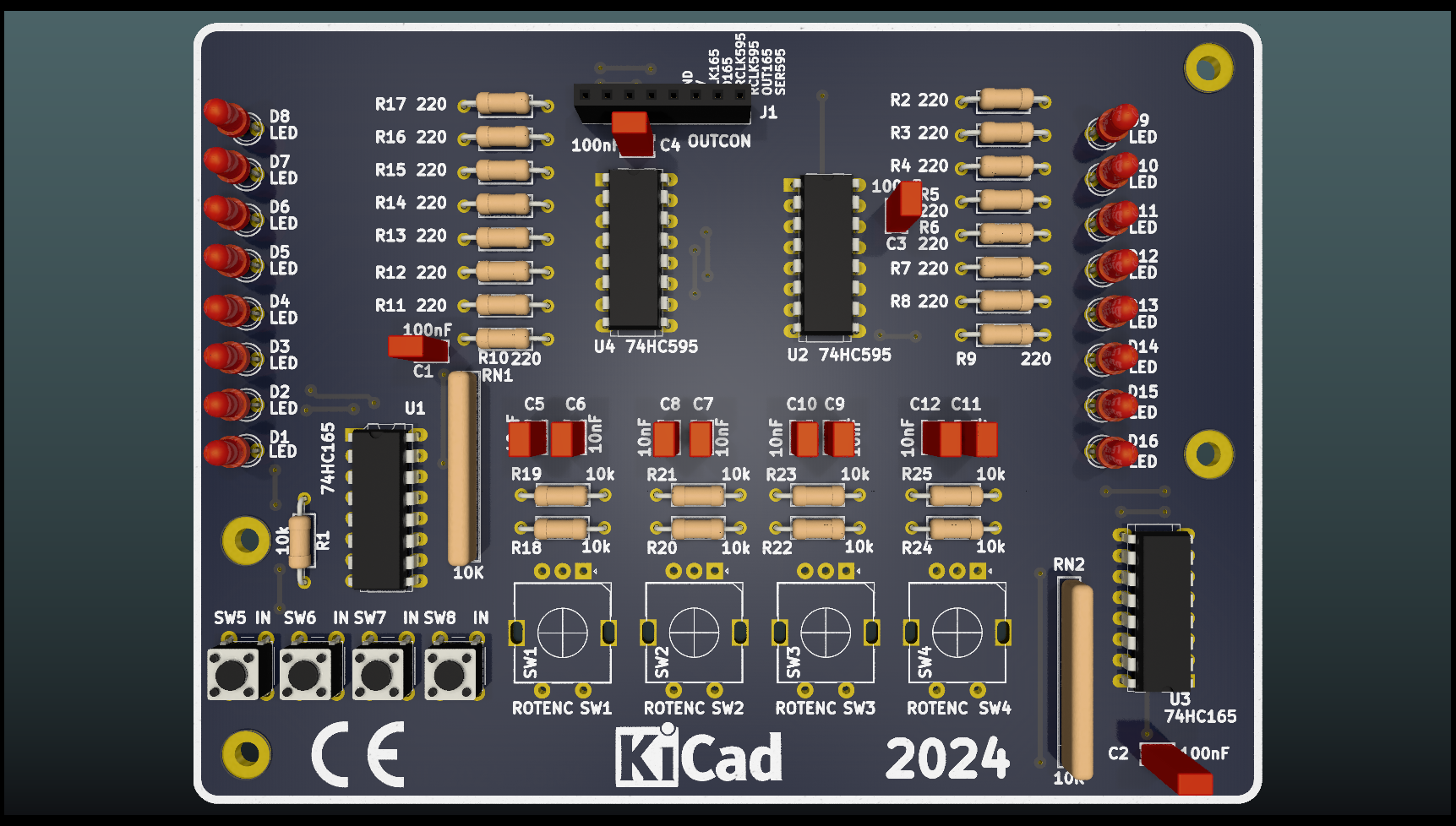

RotaryEncoderWith595, from the project README
From the project README

Main components on the RotaryEncoderWith595

74HC16574HC595

RotaryEncoderWith595 bill of materials (BOM)

68 components, 11 distinct parts.

QtyPartRefs
2
74HC165
U1, U3
2
74HC595
U2, U4
1
OUTCON
J1
4
ROTENC
SW1, SW2, SW3, SW4
4
IN
SW5, SW6, SW7, SW8
16
LED
D1, D2, D3, D4, D5, D6, D7, D8 +8
4
100nF
C1, C2, C3, C4
8
10nF
C5, C6, C7, C8, C9, C10, C11, C12
9
10k
R1, R18, R19, R20, R21, R22, R23, R24 +1
16
220
R2, R3, R4, R5, R6, R7, R8, R9 +8
2
10K
RN1, RN2

RotaryEncoderWith595 design files

The KiCad project lives in the ahsanu123/crumbs repository on GitHub; these links point at the commit this page was built from.

RotaryEncoderWith595: common questions

How big is the RotaryEncoderWith595 PCB?

The RotaryEncoderWith595 measures 130 × 95 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RotaryEncoderWith595?

68 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the RotaryEncoderWith595 design files?

From the ahsanu123/crumbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RotaryEncoderWith595 design in my own project?

Yes, under the terms of its MIT license, which ahsanu123 chose for the repository.
