VGAutumn

About the VGAutumn PCB

VGAutumn is an open source RP2040/RP2350 PCB design by Alan-GIRAUDON, published on GitHub under the MIT license. It is a 2-layer board measuring 108.5 × 61 mm, with 55 components from 22 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the XC6206P332MR and W25Q128JVS. By type, the board carries 24 resistors, 17 capacitors, 4 switches, 3 ICs, 3 connectors and 3 diodes.

From the project

VGAutumn is a RP2040 VGA joystick PCB. This board allows to play different game using its VGA output and its inputs (joystick, buttons).

- Micro-USB connector to power and program the board - LDO converter, 3V3 for the RP2040, Flash memory, SD card and joystick and LED - 16 MB flash memory - Boot button to put the RP2040 in USB storage mode - VGA connector linked to the RP2040 through a resistor ladder (cheap DAC) - Joystick (vertical, horizontal and pushable) with two buttons - micro-SD card reader - 3 LEDS, White, Blue LED and a Red power LED - Expose the debug pins

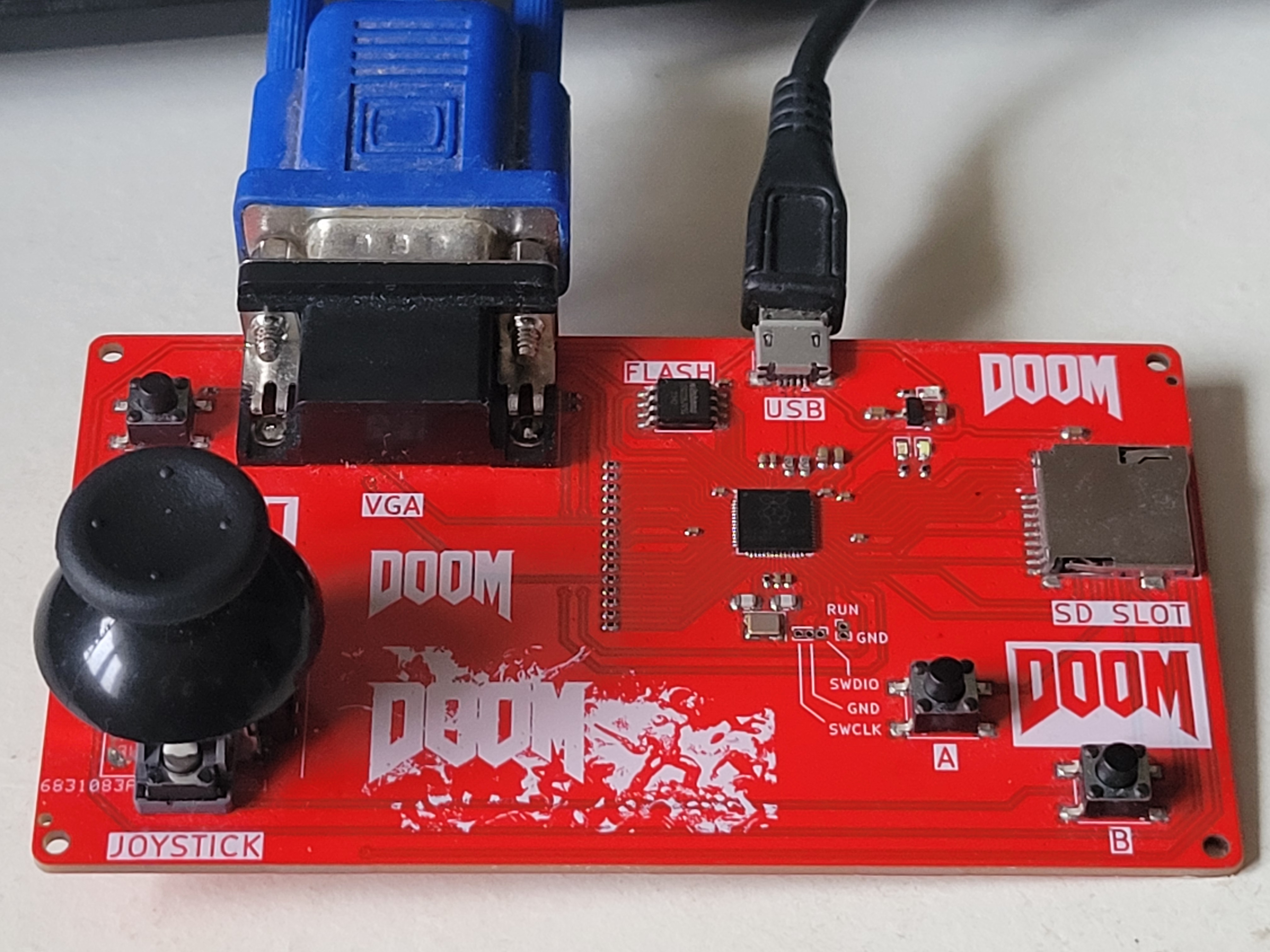

VGAutumn, from the project README — From the project README

Main components on the VGAutumn

XC6206P332MR W25Q128JVS RP2040

VGAutumn bill of materials (BOM)

55 components, 22 distinct parts.

Qty	Part	Footprint	Refs
1	XC6206P332MR	SOT-23-3	U1
1	W25Q128JVS	SOIC-8_5.23x5.23mm_P1.27mm	U2
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U3
1	Crystal_GND24	Crystal_SMD_SeikoEpson_FA238-4Pin_3.2x2.5mm	Y1
1	USB_B_Micro	USB_Micro-B_XKB_U254-051T-4BH83-F1S	J1
1	Micro_SD_Card	GCT_MEM2075-00-140-01-A	J2
1	DE15_Receptacle_HighDensity	VGA	J3
1	RKJXV122400R	RKJXV122400R	S1
3	SW_Push	SW_Push_1P1T_NO_6x6mm_H9.5mm	SW1, SW2, SW3
1	LEDR	LED_0603_1608Metric	D1
1	LEDW	LED_0603_1608Metric	D2
1	LEDB	LED_0603_1608Metric	D3
5	1u	C_0603_1608Metric	C1, C2, C3, C13, C14
10	100n	C_0402_1005Metric	C4, C5, C6, C7, C8, C9, C10, C11 +2
2	15p	C_0805_2012Metric	C16, C17
8	1k	R_0402_1005Metric	R1, R4, R6, R13, R15, R18, R20, R23
3	8k06	R_0402_1005Metric	R2, R10, R16
3	4k02	R_0402_1005Metric	R3, R11, R17
3	2k	R_0402_1005Metric	R5, R12, R19
3	499R	R_0402_1005Metric	R7, R14, R21

Show 2 more

Qty	Part	Footprint	Refs
2	27R	R_0603_1608Metric	R8, R9
2	47R	R_0402_1005Metric	R22, R24

VGAutumn design files

The KiCad project lives in the Alan-GIRAUDON/VGAutumn repository on GitHub; these links point at the commit this page was built from.

LayoutVGAutumn.kicad_pcb
SchematicVGAutumn.kicad_sch

VGAutumn: common questions

What microcontroller does the VGAutumn use?

The VGAutumn is built around the RP2040, from the RP2040/RP2350 family.

How big is the VGAutumn PCB?

The VGAutumn measures 108.5 × 61 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VGAutumn?

55 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the VGAutumn design files?

From the Alan-GIRAUDON/VGAutumn repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the VGAutumn design in my own project?

Yes, under the terms of its MIT license, which Alan-GIRAUDON chose for the repository.

Can I test firmware for the VGAutumn without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
