Sick spider

alangecker·sick-spider·board/spider2.kicad_pcb

Sick spider PCB layout, top view — open source board by alangecker

About the Sick spider PCB

Sick spider is an open source PCB design by alangecker, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 137 × 76.7 mm, with 120 components from 34 distinct parts.

Other key parts include the NCV8114ASN165, AP63203, OPA2310 and PAM8406D. By type, the board carries 50 resistors, 29 capacitors, 19 connectors, 6 ICs, 5 inductors and 3 transistors.

It belongs with the power & battery designs in this gallery.

From the project

New board design for the COATI spider https://coati.pimienta.org/electronics/spider/

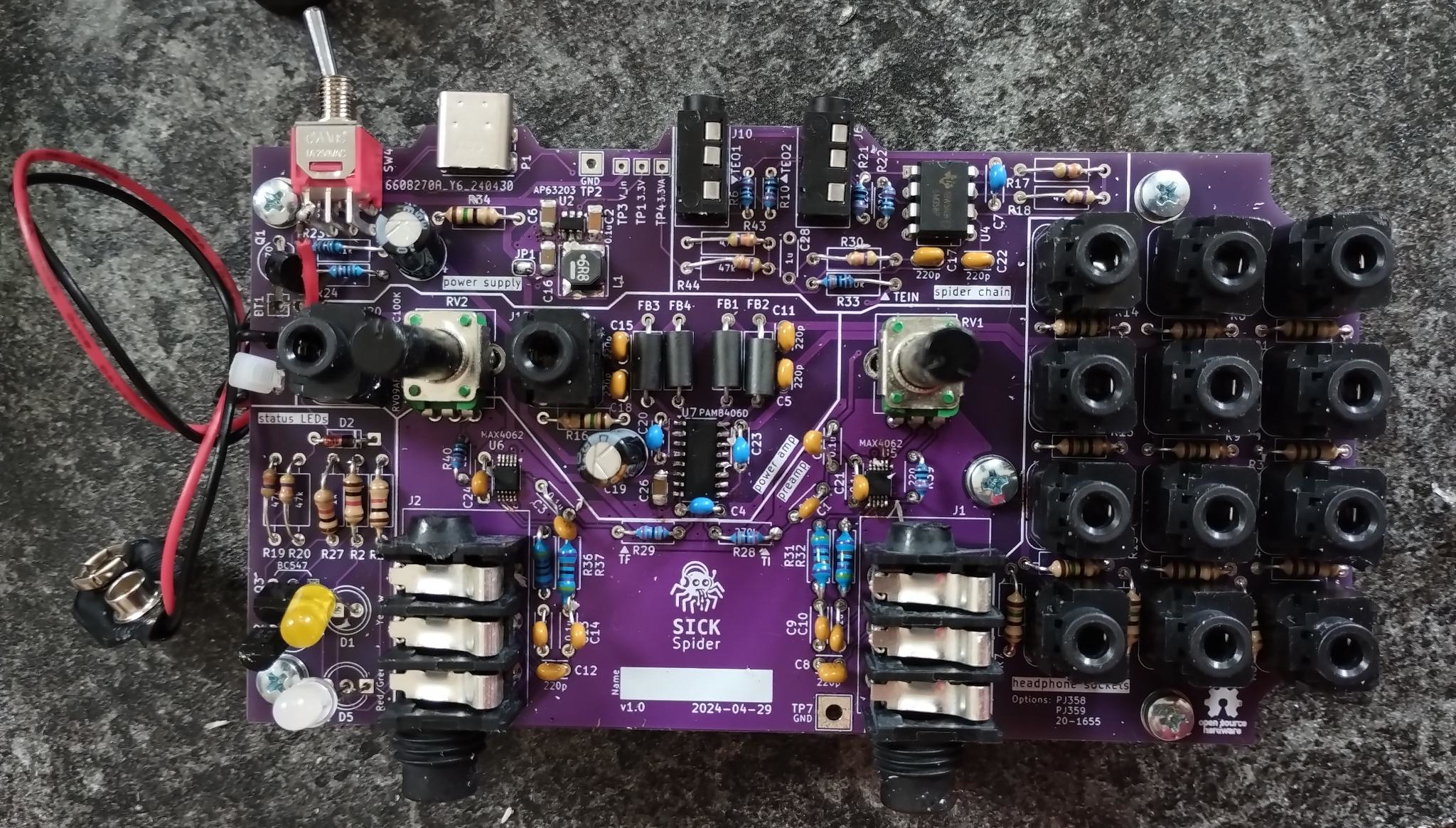

Sick spider, from the project README
From the project README

Main components on the Sick spider

NCV8114ASN165AP63203OPA2310PAM8406D

Sick spider bill of materials (BOM)

120 components, 34 distinct parts.

QtyPartRefs
1
NCV8114ASN165
U1
1
AP63203
U2
3
OPA2310
U4, U5, U6
1
PAM8406D
U7
1
BS170
Q1
2
BC547
Q2, Q3
2
NRJ6HH-1
J1, J2
14
PJ358
J3, J4, J5, J7, J8, J9, J11, J12 +6
2
PJ-320A
J6, J10
1
USB4125
J17
1
9V Block
BT1
1
250mA
F1
2
RV09AF-40-30K-C10K
RV1, RV2
1
SK-23D07
SW1
1
Yellow
D1
1
6.2V
D2
1
Red/Green
D5
4
3A/≥100 Ohm
FB1, FB2, FB3, FB4
1
6.8uH
L1
10
0.1u
C1, C3, C7, C9, C10, C13, C14, C21 +2
Show 14 more
QtyPartRefs
1
0.1u
C2
5
1u
C4, C20, C23, C28, C33
7
220p
C5, C8, C11, C12, C15, C17, C18
3
22u
C6, C16, C26
3
220u/6.3V
C19, C25, C30
15
15
R1, R3, R4, R5, R7, R8, R9, R11 +7
3
1k
R2, R25, R27
4
220
R6, R10, R21, R22
14
10K
R17, R18, R26, R31, R32, R35, R37, R38 +6
4
47k
R19, R20, R30, R33
2
5.1k
R23, R24
2
270k
R28, R29
2
47
R36, R46
4
3.4K
R39, R43, R44, R49

Sick spider design files

The KiCad project lives in the alangecker/sick-spider repository on GitHub; these links point at the commit this page was built from.

Sick spider: common questions

How big is the Sick spider PCB?

The Sick spider measures 137 × 76.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sick spider?

120 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sick spider design files?

From the alangecker/sick-spider repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Sick spider design in my own project?

Yes, under the terms of its GPL-3.0 license, which alangecker chose for the repository.
