ESP32-C3 Breadboard-Adapter

alexandrebobkov·ESP32-C3_Breadboard-Adapter·assets/esp32-c3-wroom-socket.kicad_pcb

ESP32-C3 Breadboard-Adapter PCB layout, top view — open source ESP32 board by alexandrebobkov

About the ESP32-C3 Breadboard-Adapter PCB

ESP32-C3 Breadboard-Adapter is an open source ESP32 PCB design by alexandrebobkov, published on GitHub under the MIT license. It is a 2-layer board measuring 30.5 × 25.4 mm, with 13 components from 9 distinct parts.

Its main chip is the ESP32-C3-WROOM-02-N4, from the ESP32 family. Other key parts include the AMS1117-3V3. By type, the board carries 6 resistors, 2 ICs, 2 connectors, 2 switches and 1 LED.

It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.

From the project

ESP32-C3 Breadboard Adapter

Integrating the ESP32-C3 Development Board with MicroPython offers several compelling benefits:

1. Ease of Use: MicroPython simplifies the development process by allowing developers to write code in Python, a high-level, easy-to-read programming language. This reduces the learning curve for beginners and accelerates development for experienced programmers.

2. Rapid Prototyping: With MicroPython, developers can quickly prototype and test their ideas. The interactive REPL (Read-Eval-Print Loop) enables immediate feedback and debugging, making it easier to iterate and refine projects.

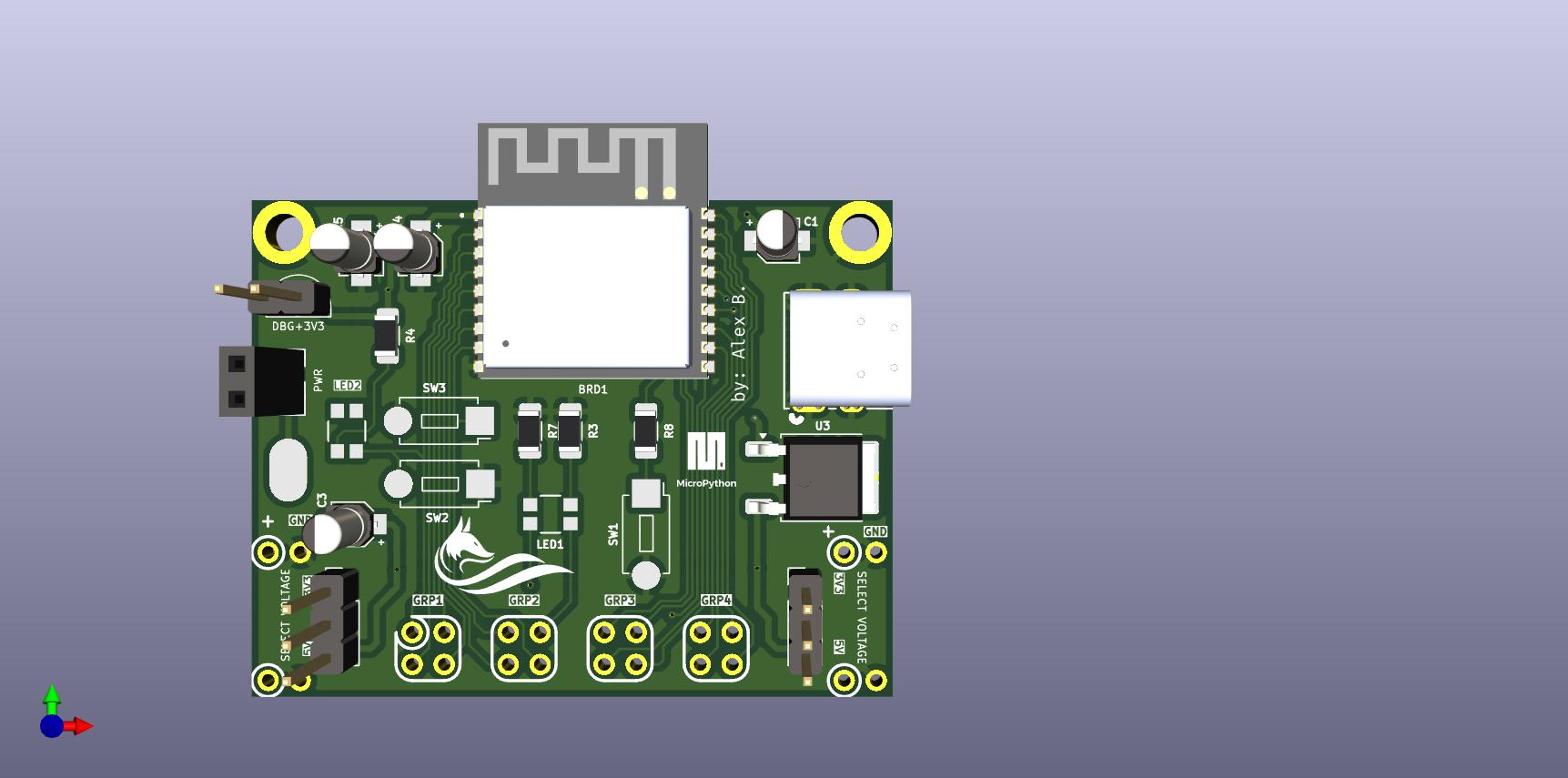

ESP32-C3 Breadboard-Adapter, from the project README
From the project README

Main components on the ESP32-C3 Breadboard-Adapter

ESP32-C3-WROOM-02-N4AMS1117-3V3

ESP32-C3 Breadboard-Adapter bill of materials (BOM)

13 components, 9 distinct parts.

QtyPartRefs
1
ESP32-C3-WROOM-02-N4
U1
1
AMS1117-3V3
U2
1
~
J2
1
USB-C_Receptacle_Data_16P_GCT-USB4085
J4
2
SW_Push_SMD_6x3.5
SW1, SW2
1
LED-RED-GREEN-B1552USUG20D
LED1
1
10k
R1
3
5k1
R4, R9, R10
2
2K2
R7, R8

ESP32-C3 Breadboard-Adapter design files

The KiCad project lives in the alexandrebobkov/ESP32-C3_Breadboard-Adapter repository on GitHub; these links point at the commit this page was built from.

ESP32-C3 Breadboard-Adapter: common questions

What microcontroller does the ESP32-C3 Breadboard-Adapter use?

The ESP32-C3 Breadboard-Adapter is built around the ESP32-C3-WROOM-02-N4, from the ESP32 family.

How big is the ESP32-C3 Breadboard-Adapter PCB?

The ESP32-C3 Breadboard-Adapter measures 30.5 × 25.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-C3 Breadboard-Adapter?

13 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32-C3 Breadboard-Adapter design files?

From the alexandrebobkov/ESP32-C3_Breadboard-Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP32-C3 Breadboard-Adapter design in my own project?

Yes, under the terms of its MIT license, which alexandrebobkov chose for the repository.

Can I test firmware for the ESP32-C3 Breadboard-Adapter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
