Solenoid kicker board

all1k·solenoid-kicker-board

Solenoid kicker board layout, top view — open source board by all1k

About the Solenoid kicker board

Solenoid kicker board is an open source PCB design by all1k, published on GitHub. It is a 2-layer board measuring 100 × 70 mm, with 59 components from 37 distinct parts.

Other key parts include the LM393, TL431DBZ, 74HC00 and PC817. By type, the board carries 23 resistors, 14 diodes, 8 transistors, 4 ICs, 3 connectors and 3 capacitors.

It belongs with the robotics & motion designs in this gallery.

From the project

Electronic design for a solenoid based kicker actuator on a RoboCup MSL based Robots

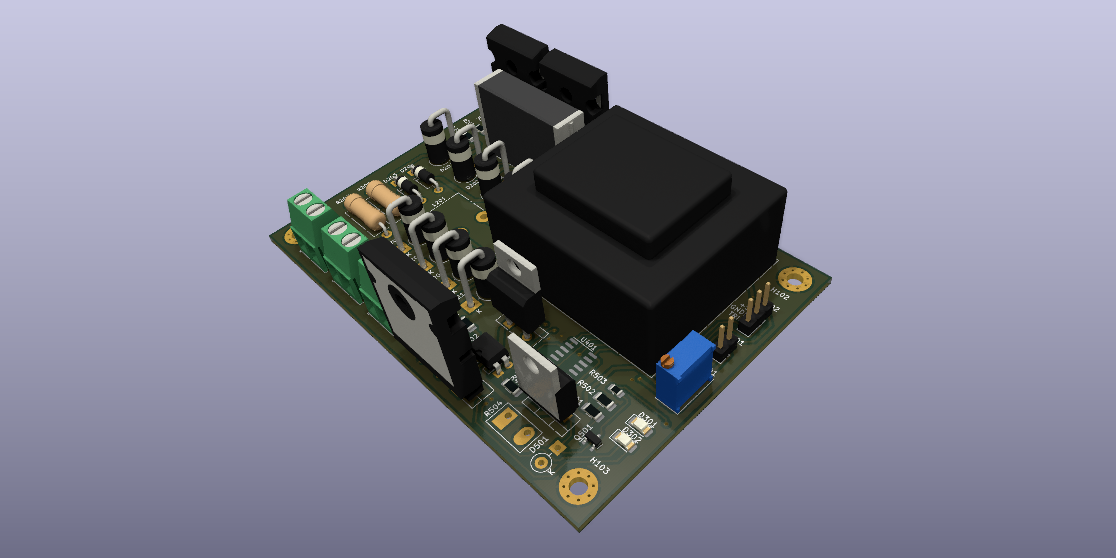

Solenoid kicker board, from the project README — From the project README

Main components on the Solenoid kicker board

LM393 TL431DBZ 74HC00 PC817

Solenoid kicker board bill of materials (BOM)

59 components, 37 distinct parts.

Qty	Part	Footprint	Refs
1	LM393	SOP-8-1EP_4.57x4.57mm_P1.27mm_EP4.57x4.45mm	U301
1	TL431DBZ	SOT-23	U302
1	74HC00	SO-14_3.9x8.65mm_P1.27mm	U401
1	PC817	DIP-4_W7.62mm	U402
2	IRFP250	TO-247-3_Vertical	Q201, Q202
2	MMBT3904	SOT-23	Q301, Q501
2	MMBT3906	SOT-23	Q302, Q303
1	FGL40N120	TO-264-3_Vertical	Q401
1	IRF840	TO-220-3_Vertical	Q502
1	Screw_Terminal_01x02	TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal	J101
1	Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J102
1	Conn_01x02	PinHeader_1x02_P2.54mm_Vertical	J301
1	1kΩ	Potentiometer_Bourns_3296W_Vertical	RV301
1	Transformer_SP_1S	Transformer_37x44	T201
8	FR307	D_DO-201AD_P5.08mm_Vertical_KathodeUp	D201, D202, D205, D206, D207, D208, D209, D210
2	1N47xxA 12V	D_DO-41_SOD81_P10.16mm_Horizontal	D203, D204
2	LED	LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder	D301, D302
1	RHRP3060	TO-220-2_Vertical	D401
1	1N47xxA 12V	D_DO-41_SOD81_P3.81mm_Vertical_KathodeUp	D501
1	L_Iron	L_Toroid_Vertical_L21.6mm_W9.5mm_P7.11mm_Pulse_C	L201

Show 17 more

Qty	Part	Footprint	Refs
1	Solenoid	TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal	L401
1	4.2µF 400V	C_Rect_L29.0mm_W7.6mm_P27.50mm_MKT	C201
1	4700µF 450V	TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal	C202
1	1nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C301
2	470Ω 2W	R_Axial_DIN0414_L11.9mm_D4.5mm_P15.24mm_Horizontal	R201, R202
5	10kΩ	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R203, R204, R401, R403, R404
1	1MΩ	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R301
1	5.6kΩ	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R302
1	2.2kΩ	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R303
3	1kΩ	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R304, R307, R308
1	18kΩ	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R305
2	680Ω	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R306, R309
2	15kΩ	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R310, R311
1	330Ω	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R402
2	1kΩ	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R501, R502
1	470kΩ	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R503
1	56kΩ 5W	TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal	R504

Solenoid kicker board design files

The KiCad project lives in the all1k/solenoid-kicker-board repository on GitHub; these links point at the commit this page was built from.

Layoutsolnoid_kicker_board.kicad_pcb

Solenoid kicker board: common questions

How big is the Solenoid kicker board?

The Solenoid kicker board measures 100 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Solenoid kicker board?

59 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the Solenoid kicker board design files?

From the all1k/solenoid-kicker-board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Solenoid kicker board design in my own project?

The repository has no license, so all rights stay with all1k. Use it as a reference, and ask the author before reusing the design.
