Grove - Vision AI Module V2

AM1NOM·Controla·PCB/OPL_Kicad_Library-master/Grove Vision AI V2 Library/Grove - Vision AI Module V2.kicad_pcb

Grove - Vision AI Module V2 layout, top view — open source board by AM1NOM

Simulate this board

About the Grove - Vision AI Module V2

Grove - Vision AI Module V2 is an open source PCB design by AM1NOM, published on GitHub under the MIT license. It is a 4-layer board measuring 40 × 20 mm, with 112 components from 38 distinct parts.

Other key parts include the HX6538, CH343P, WR0331-18FF4R, SY80004DQD and W25Q128JWSIQ. By type, the board carries 40 resistors, 36 capacitors, 8 diodes, 6 ICs, 5 transistors and 4 connectors.

From the project

Controla is a compact, tactile controller that brings your most-used shortcuts and actions within reach.

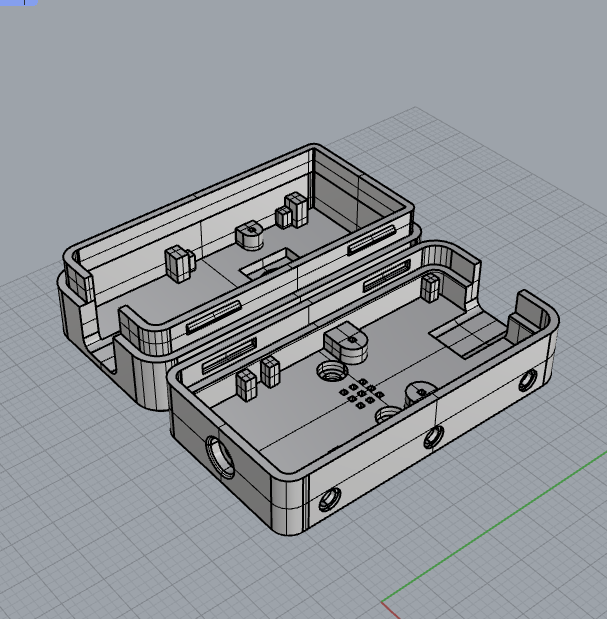

This is the library for Grove Vision AI V2 and its case.

- The case for Grove Vision AI V2 - Himax - Preparatory Work: KiCad Download and Library Download - How to add and use Seeed OPL Footprint Libraries(Grove Vision AI V2) - How to add and use Seeed OPL Symbol Libraries(Grove Vision AI V2) - Scale up Your Creation With Seeed Studio Fusion - Co-Create with Seeed Studio - Resoureces

Grove - Vision AI Module V2, from the project README — From the project README

Main components on the Grove - Vision AI Module V2

HX6538 CH343P WR0331-18FF4R SY80004DQD W25Q128JWSIQ

Grove - Vision AI Module V2 bill of materials (BOM)

112 components, 38 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	HX6538	WLCSP65_5.6x2.3x0.56mm	U1
1	CH343P	QFN-16-EP_3x3mm_P0.5mm_EP1x1mm	U2
1	WR0331-18FF4R	X2SON-4	U3
2	SY80004DQD SILERGY	DFN6-0.5-1.5X1.5X0.65MM	U4, U6
1	W25Q128JWSIQ	SOIC-8_5.23x5.23mm_P1.27mm	U5
1	XIAO Connector/DNP	XIAO_Socket	M1
5	CJ1012	SOT523	Q1, Q2, Q3, Q4, Q5
1	24MHz	4P2016	X1
1	USB_C_Receptacle_USB2.0	USB2.0-TYPE-C	J1
1	Conn_01x15_MountingPin	FPC_DNC_15P_1.0mm	J2
1	Conn_01x04_MountingPin	4P-SMD-2.0mm-RIGHT	J3
1	SD-TF-MR267 ST-TF-MR267 商祺电子	SD-TF-MR267	J5
2	SW_Push	SW_Push_1P1T_NO_Vertical_Wuerth_434133025816	BOOT1, RST1
1	MSM261D3526H1CPM	MIC6P-3.5X2.65X0.94MM	MIC1
3	Test Point	TP-D35MIL	TP1, TP2, TP3
1	Yellow	LED0402	LED1
1	Green	LED0402	LED2
4	B5819WS	D0805_SOD323	D1, D2, D3, D4
4	DF2S6.8FS DNP	R0402	D5, D6, D7, D8
1	VLS201610HBX-4R7M-1	L0806	L1

Show 18 more

Qty	Part	Footprint	Refs
2	470nH	L0603	L2, L3
5	1uF	C0402	C1, C2, C17, C18, C19
1	10nF	C0402	C3
7	4.7uF	C0402	C4, C6, C7, C9, C10, C28, C34
18	100nF	C0402	C5, C8, C13, C20, C21, C22, C23, C24 +10
2	10uF	C0402	C11, C37
2	12pF	C0402	C14, C15
1	220nF	C0402	C16
10	2.2k	R0402	R1, R4, R13, R14, R15, R19, R20, R21 +2
3	5.1k	R0402	R2, R3, R36
4	10k	R0402	R5, R7, R23, R24
4	RC0402JR-074K7L 100K YAGEO	R0402	R6, R16, R32, R33
3	RC0402JR-074K7L 10K YAGEO	R0402	R8, R31, R38
7	DNP	R0402	R9, R12, R17, R18, R25, R27, R28
3	100k	R0402	R10, R11, R37
2	RC0402JR-074K7L 22K YAGEO	R0402	R26, R34
3	0R	R0402	R29, R30, R39
1	510k	R0402	R35

Grove - Vision AI Module V2 design files

The KiCad project lives in the AM1NOM/Controla repository on GitHub; these links point at the commit this page was built from.

Grove - Vision AI Module V2: common questions

How big is the Grove - Vision AI Module V2?

The Grove - Vision AI Module V2 measures 40 × 20 mm, has 4 copper layers and is 1.1962 mm thick.

How many components are on the Grove - Vision AI Module V2?

112 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Grove - Vision AI Module V2 design files?

From the AM1NOM/Controla repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Grove - Vision AI Module V2 design in my own project?

Yes, under the terms of its MIT license, which AM1NOM chose for the repository.
